Home >> Jeep Truck >> 2005 >> TJ (CANADA) L6-4.0L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Locations

Starter Motor: Locations

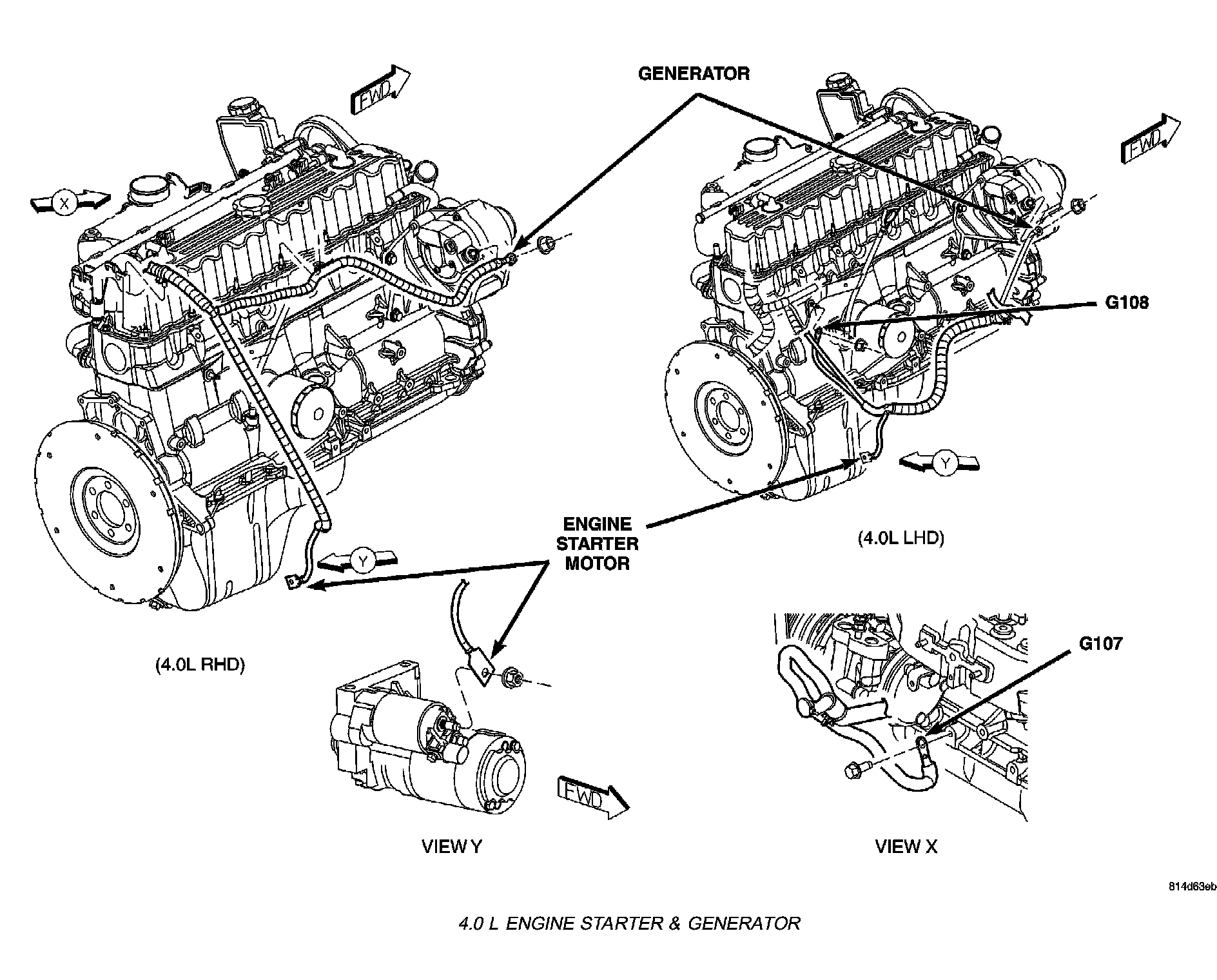

4.0 L ENGINE STARTER & GENERATOR:
