Alignment: Specifications: Specifications






WHEEL ALIGNMENT

NOTE: Specifications are in degrees.

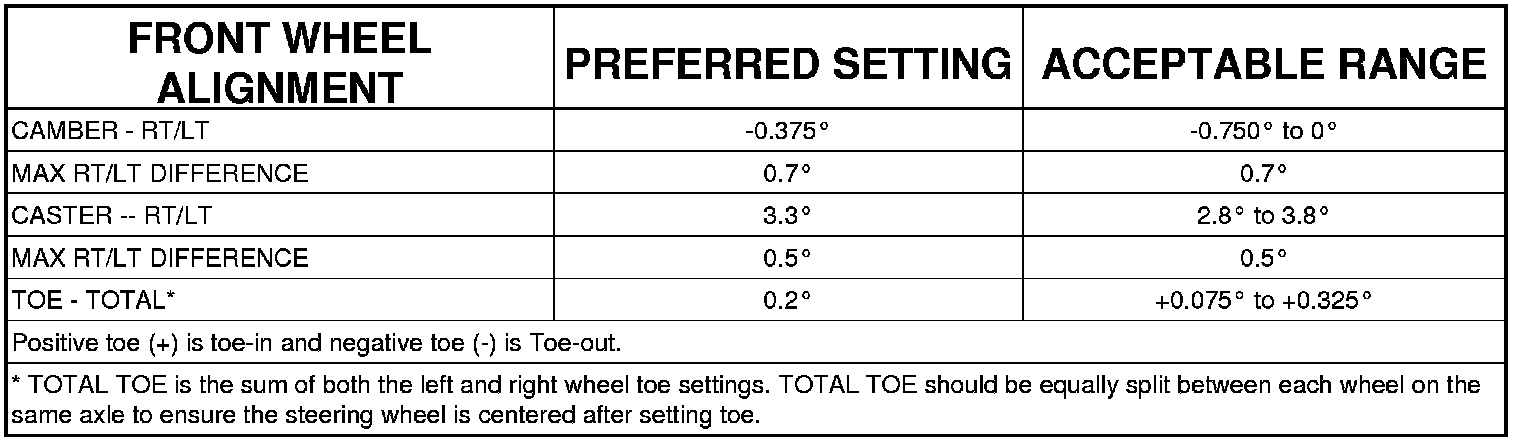

FRONT

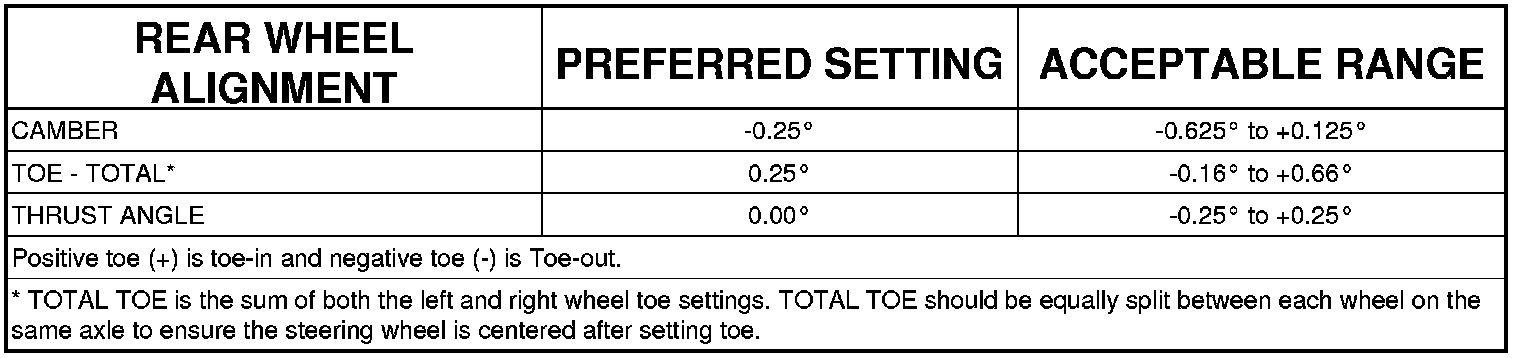

REAR
