Flex Plate: Specifications

Drive Plate

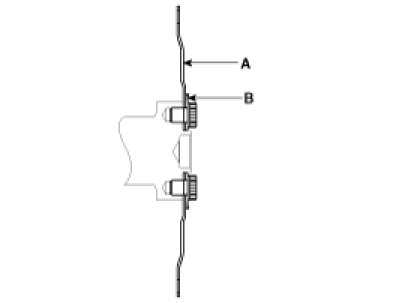

Install the drive plate (A) and the adapter plate (B).






Tightening torque 117.7 - 127.5 N.m (12.0 - 13.0 kgf.m, 86.8 - 93.9 lb-ft)

Install and uniformly tighten the 7 bolts, in several passes.
