Simultaneous Fuel Injection

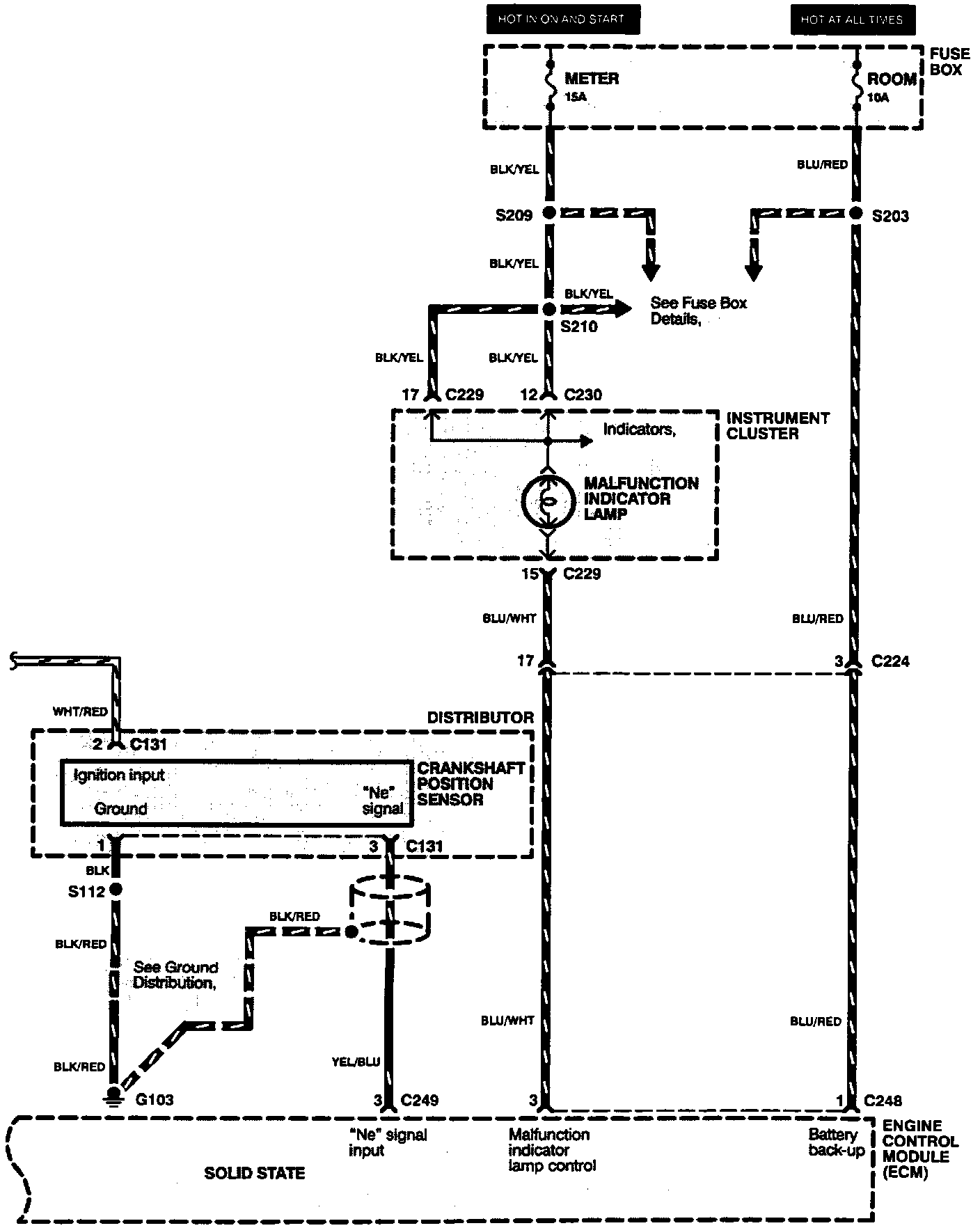

Simultaneous Fuel Injection (Part 1 Of 5):

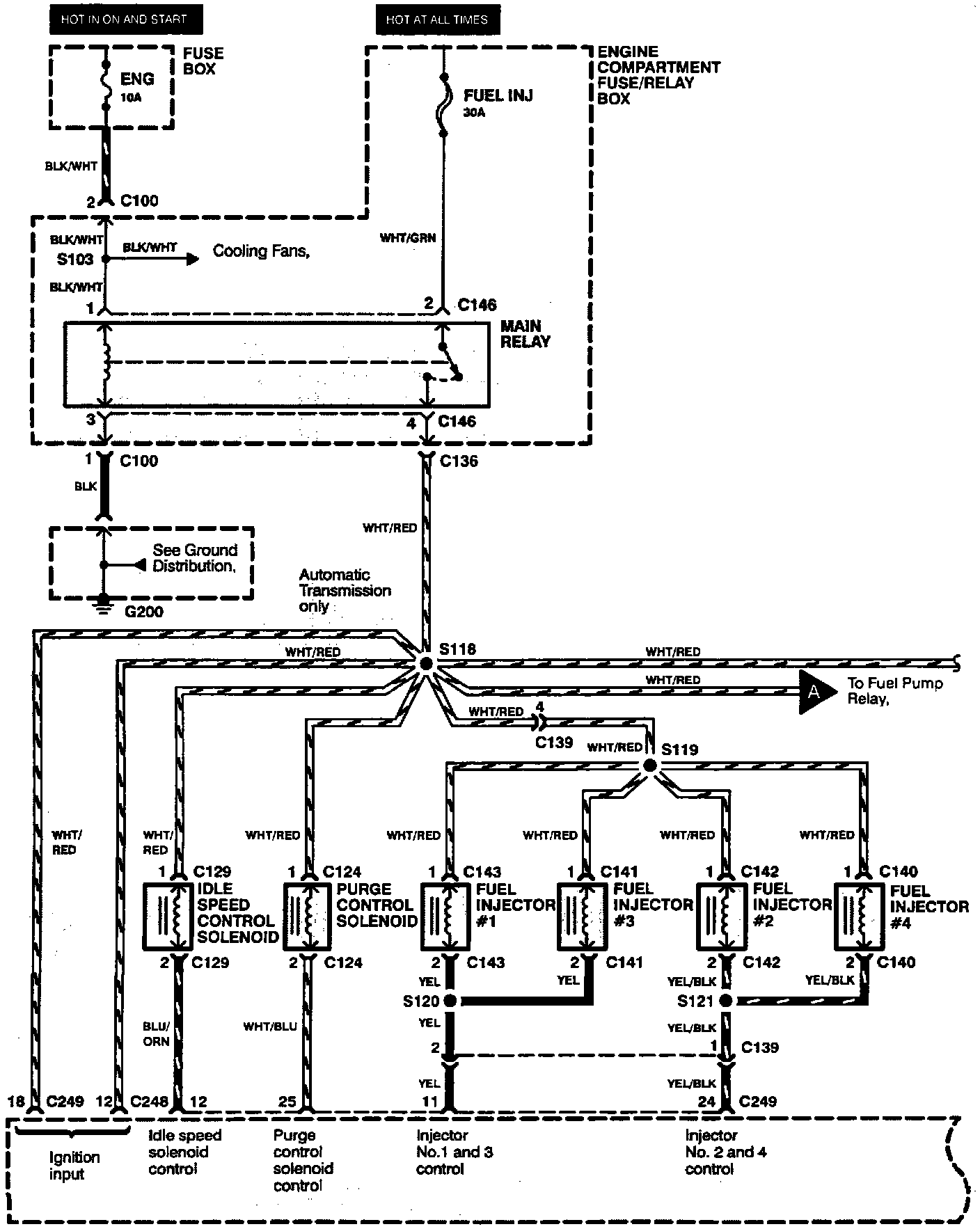

Simultaneous Fuel Injection (Part 2 Of 5):

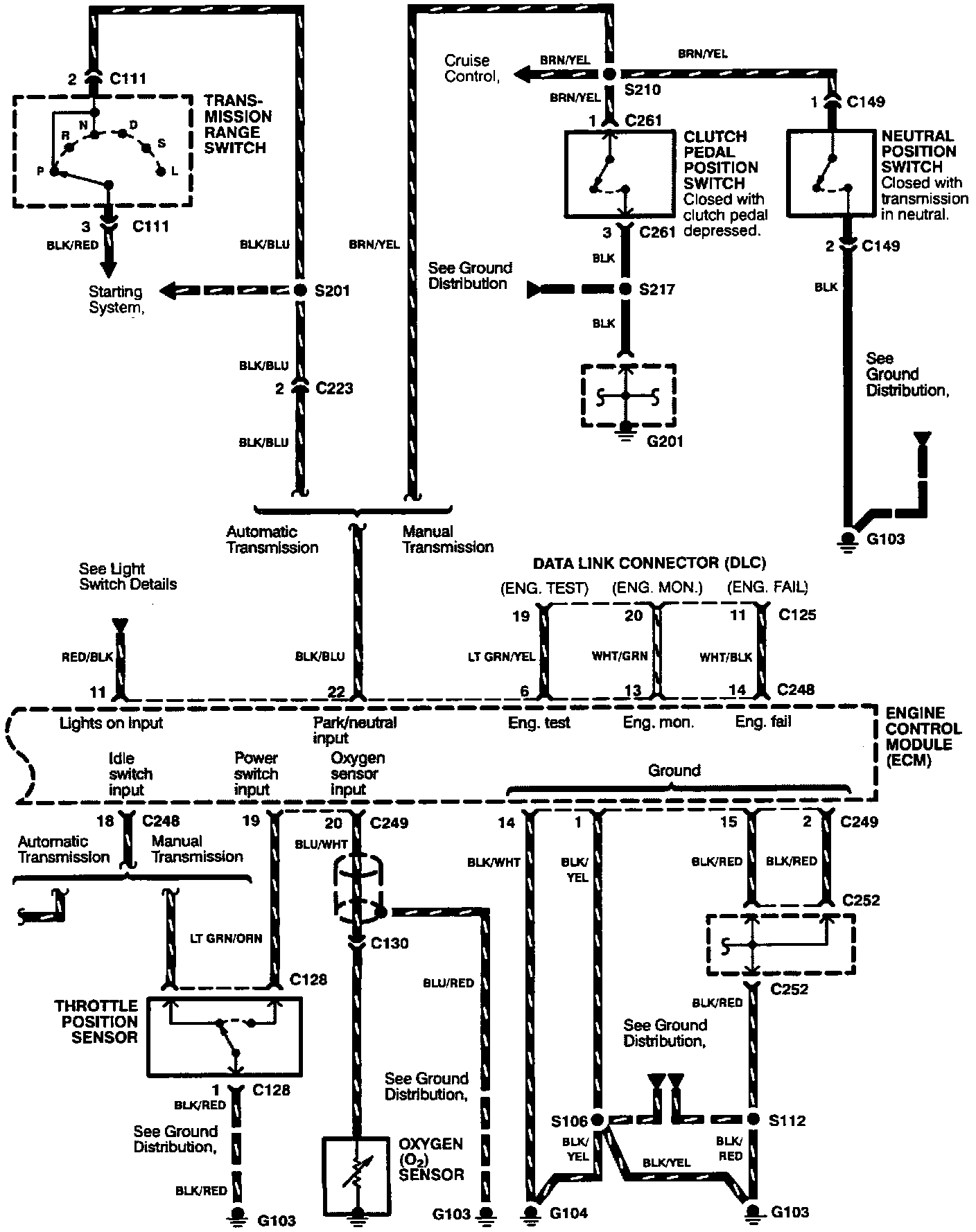

Simultaneous Fuel Injection (Part 3 Of 5):

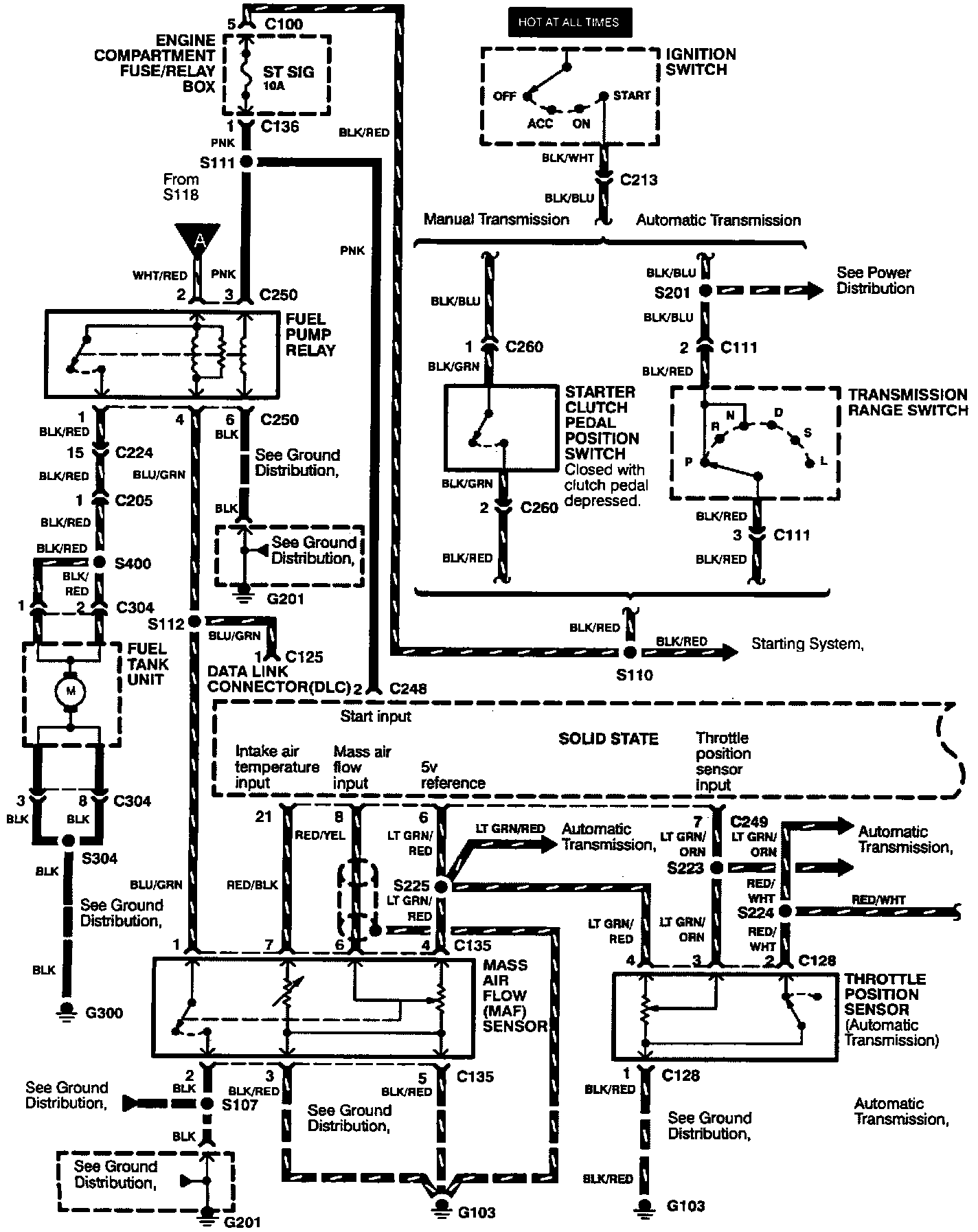

Simultaneous Fuel Injection (Part 4 Of 5):




Simultaneous Fuel Injection (Part 5 Of 5):
