Transaxle Range Switch

Switch Testing-Transaxle Range Switch:




1. Disconnect the transaxle range switch connector.

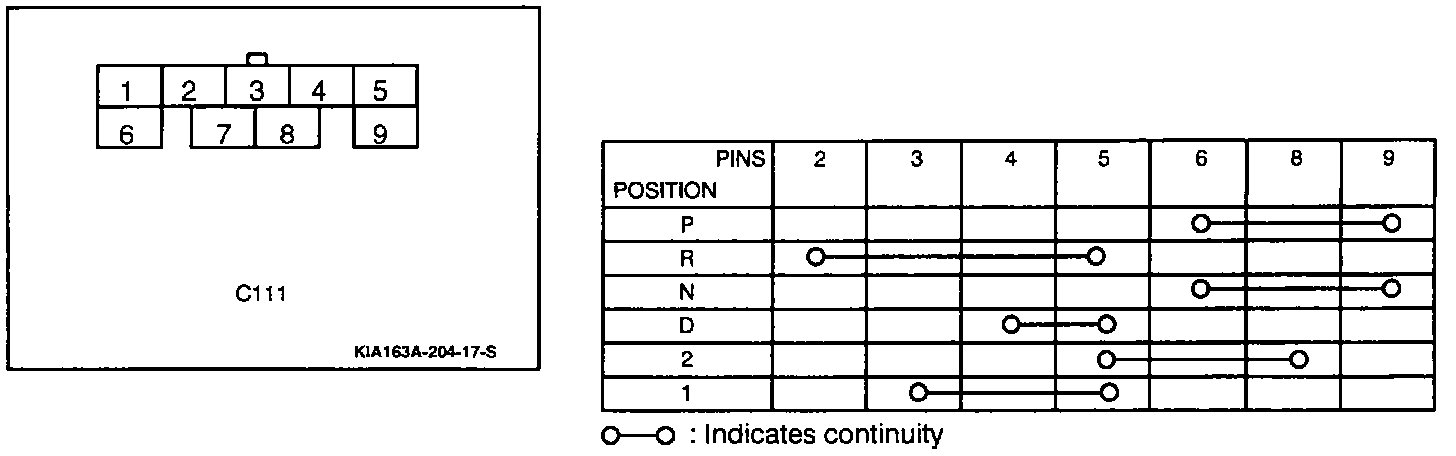

2. Check continuity of the terminals.
