Transmission Range Switch

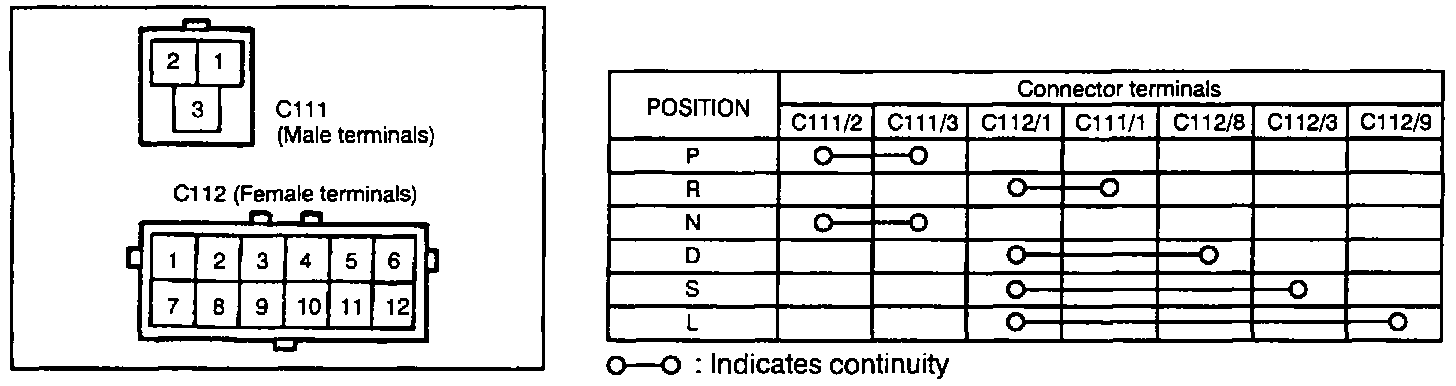

Switch Testing-Transmission Range Switch:




1. Disconnect the transmission range switch connector.
2. Check continuity of the terminals.
