Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

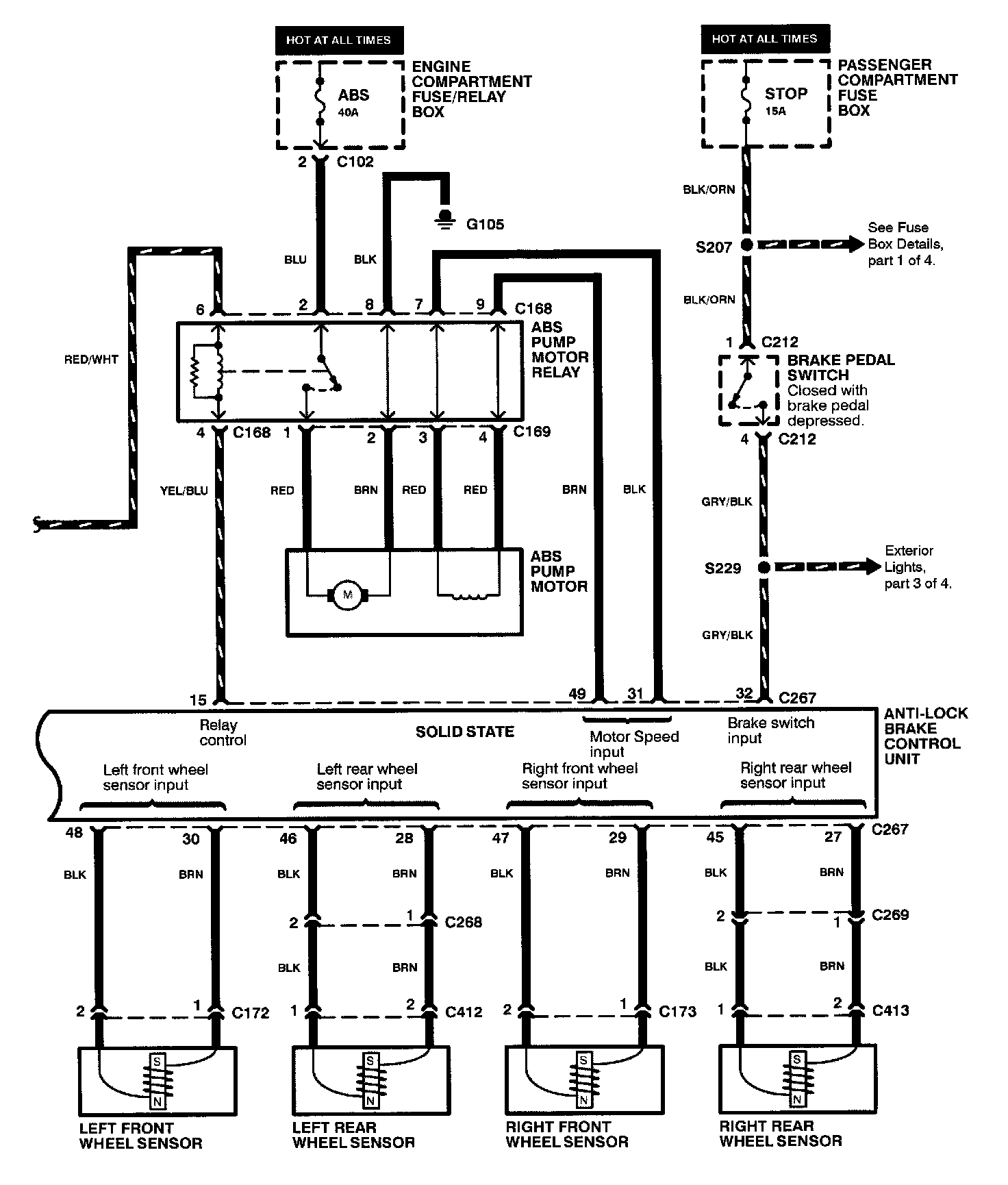

Anti-Lock Braking System (ABS) (Part 1 Of 2):

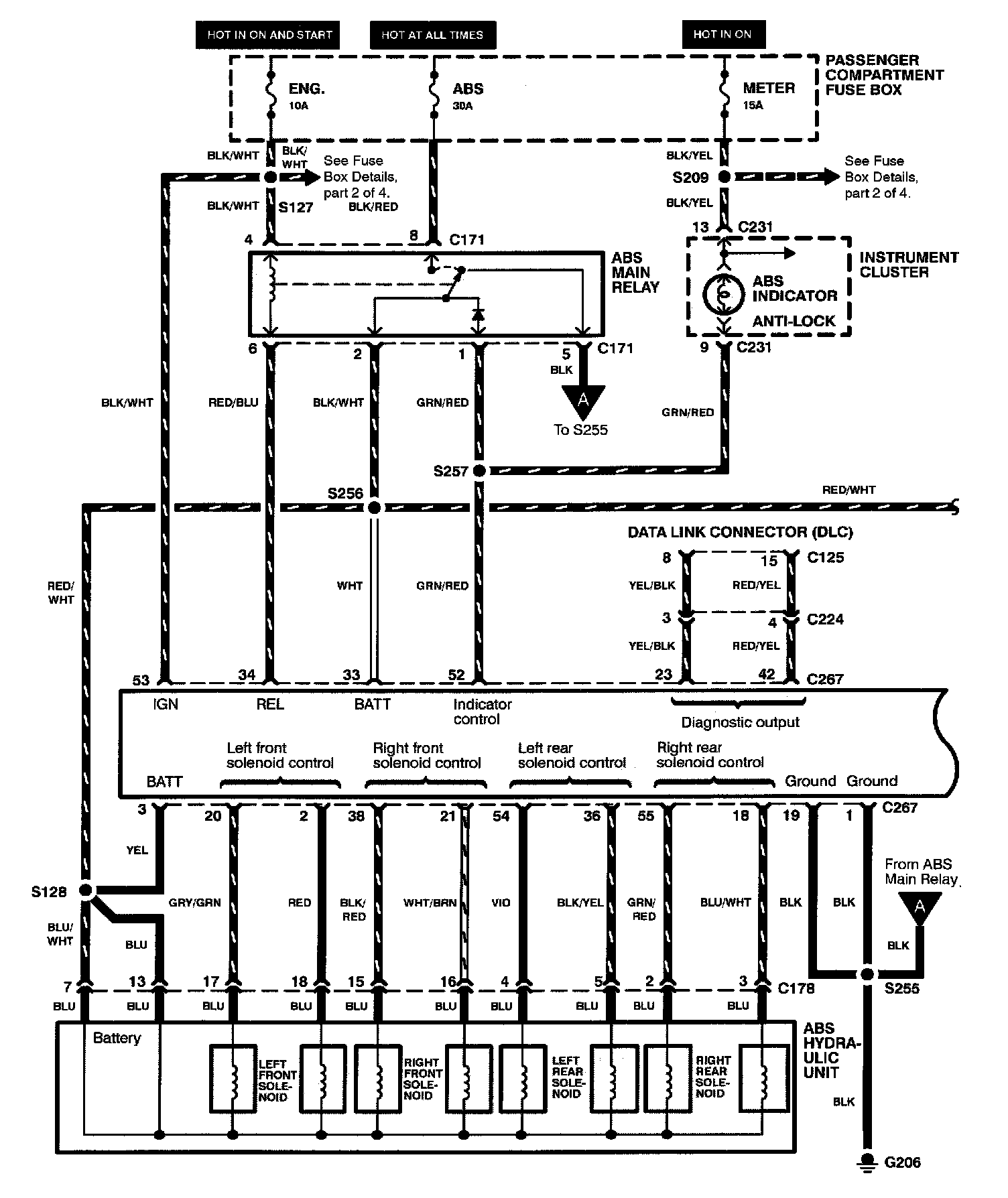

Anti-Lock Braking System (ABS) (Part 2 Of 2):
