Fluid Passage Locations
Fluid Passage Locations

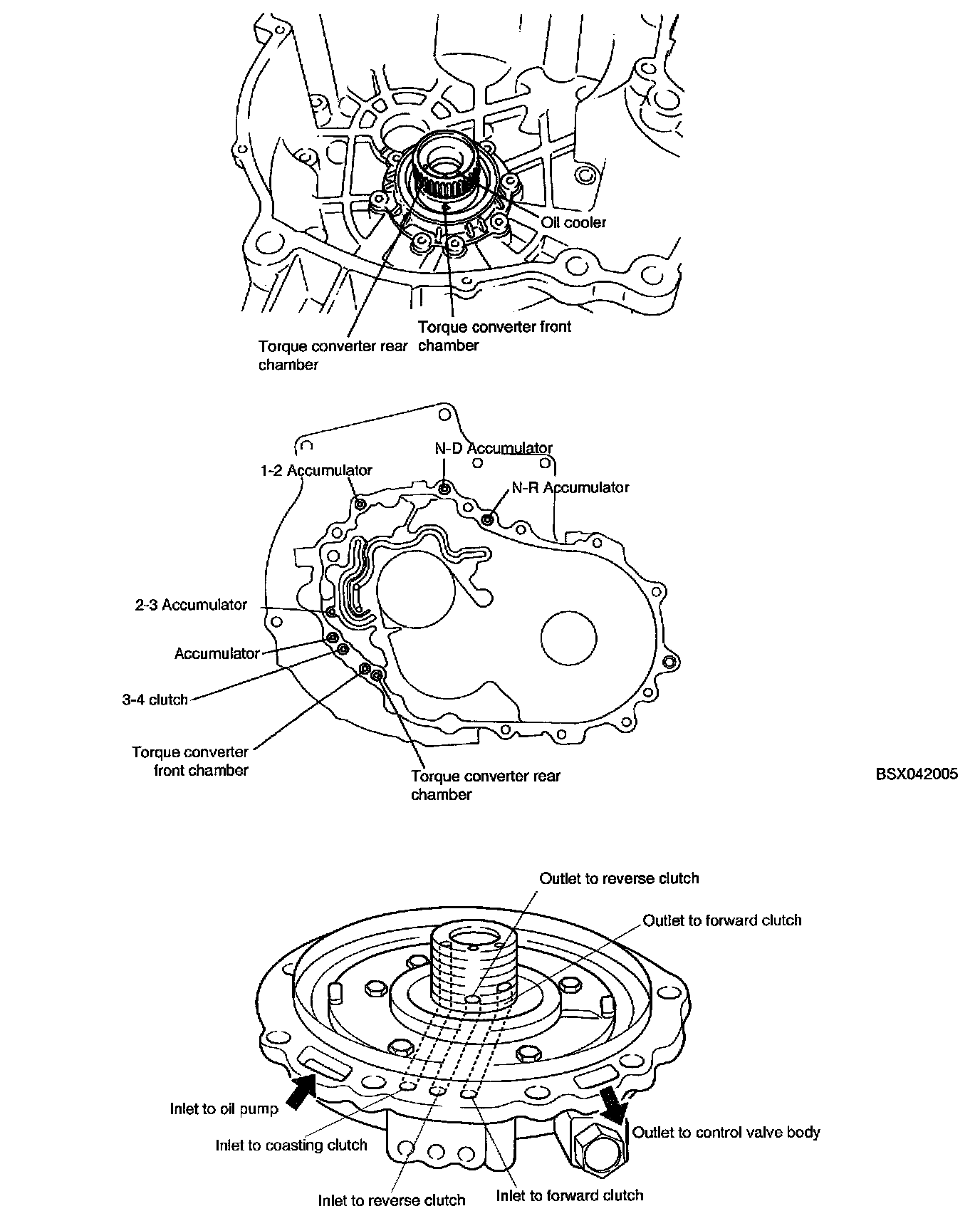

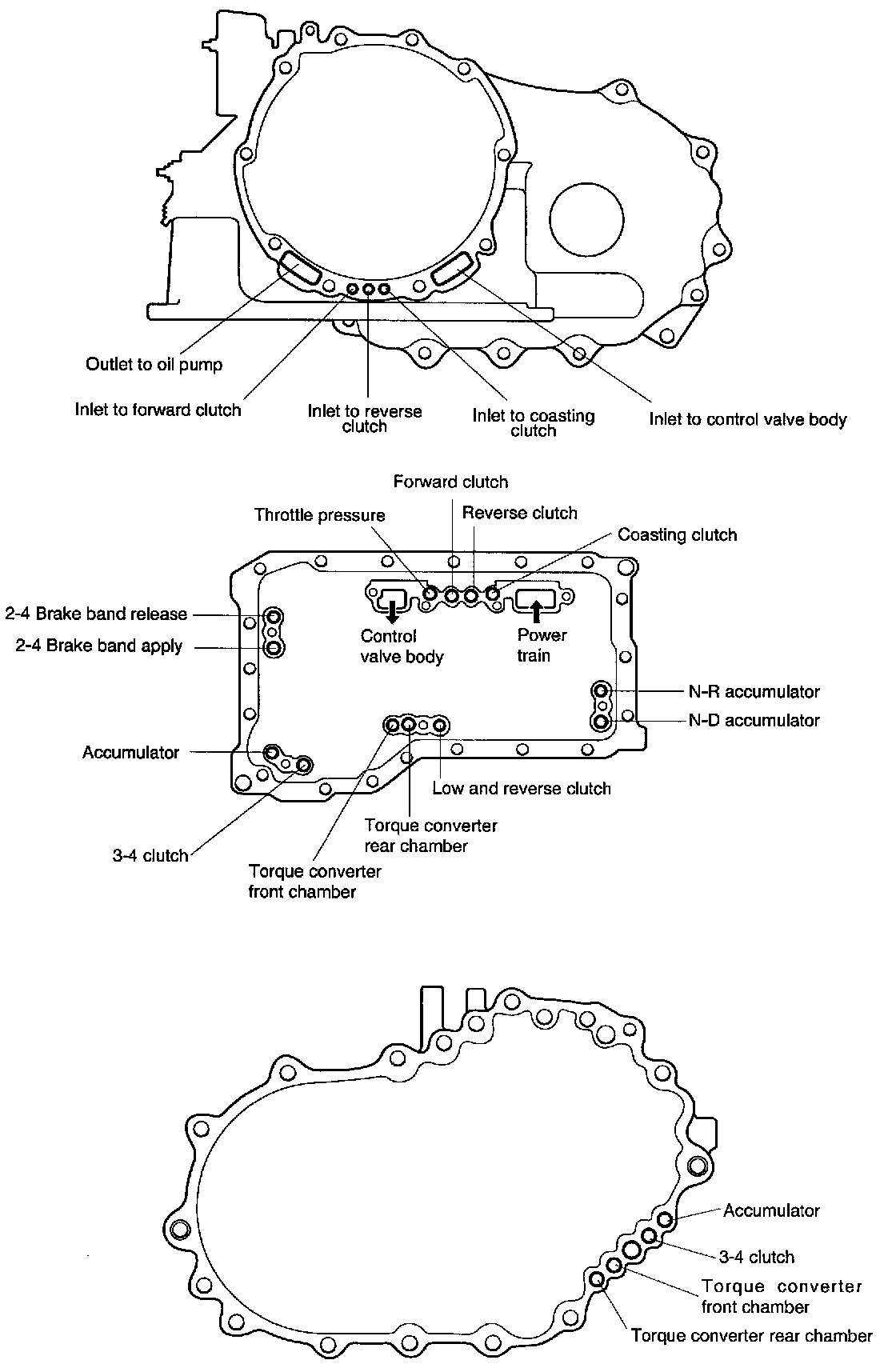

Transaxle case (Part 1 of 2)
Transaxle case (Part 1 of 2)
