Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2005
>>
Amanti V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Suspension Strut / Shock Absorber
>>
Suspension Strut
Suspension Strut

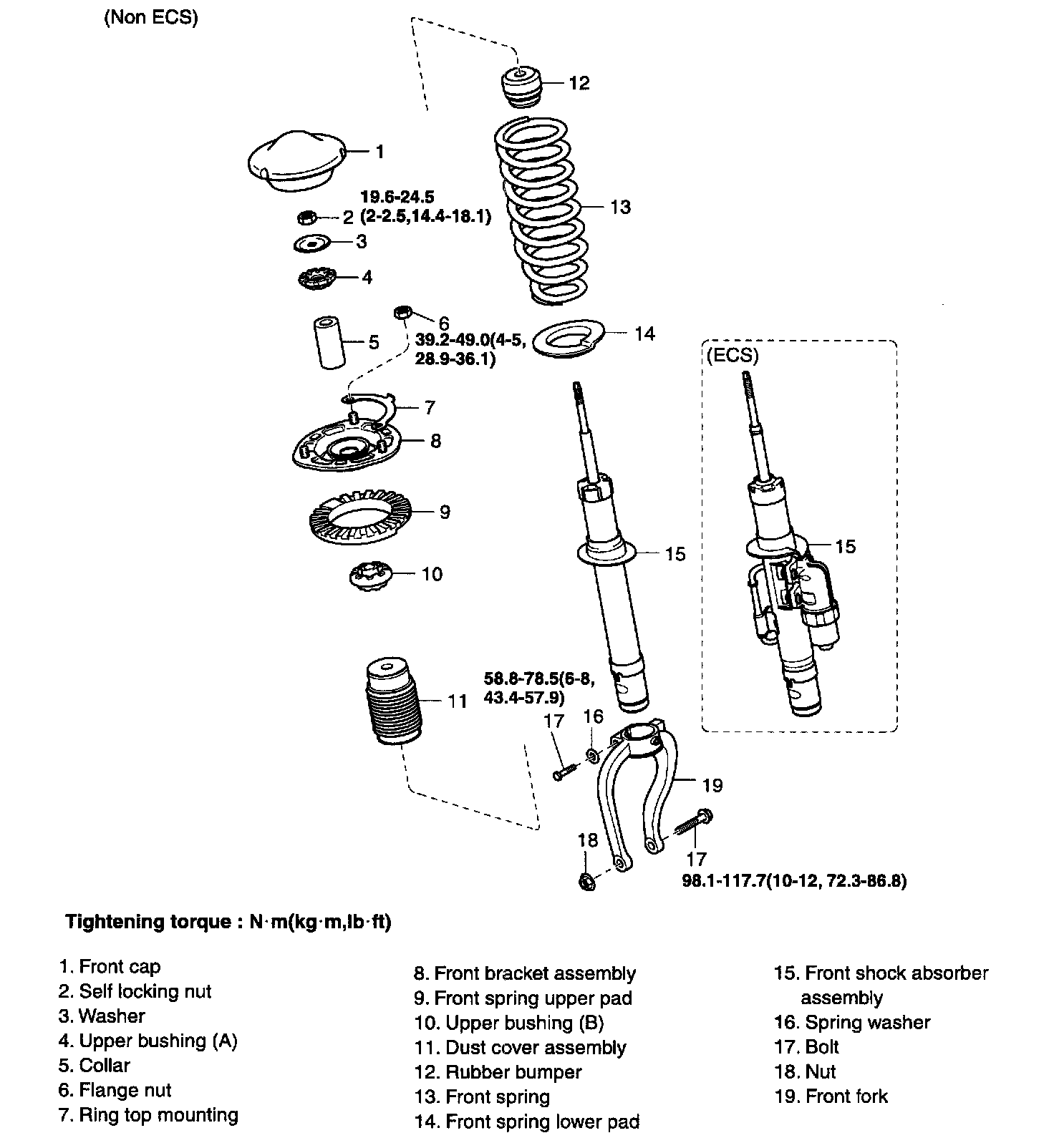

STRUT ASSEMBLY
COMPONENTS
