Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2005
>>
Rio L4-1.6L (JB)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
26 - 50
>>

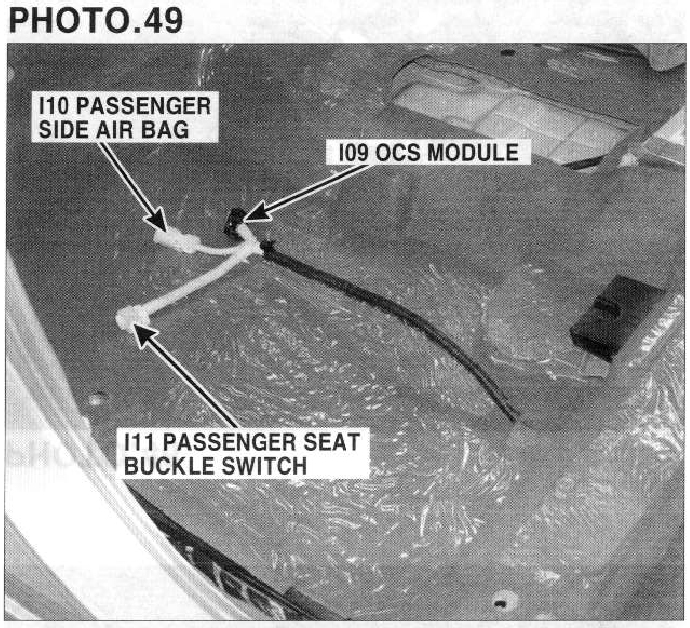

Photo 49
Photo 49

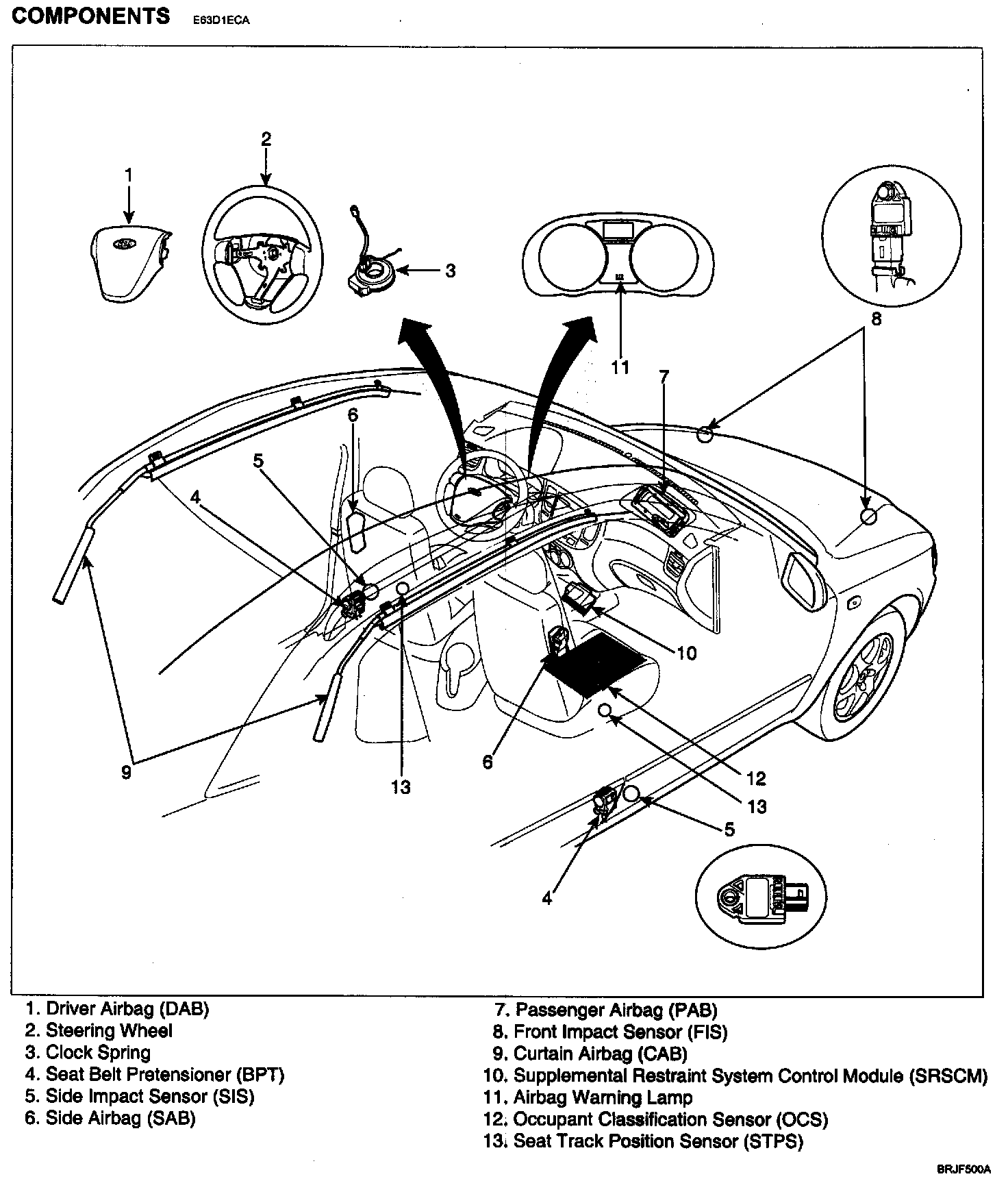

Air Bag System Components:

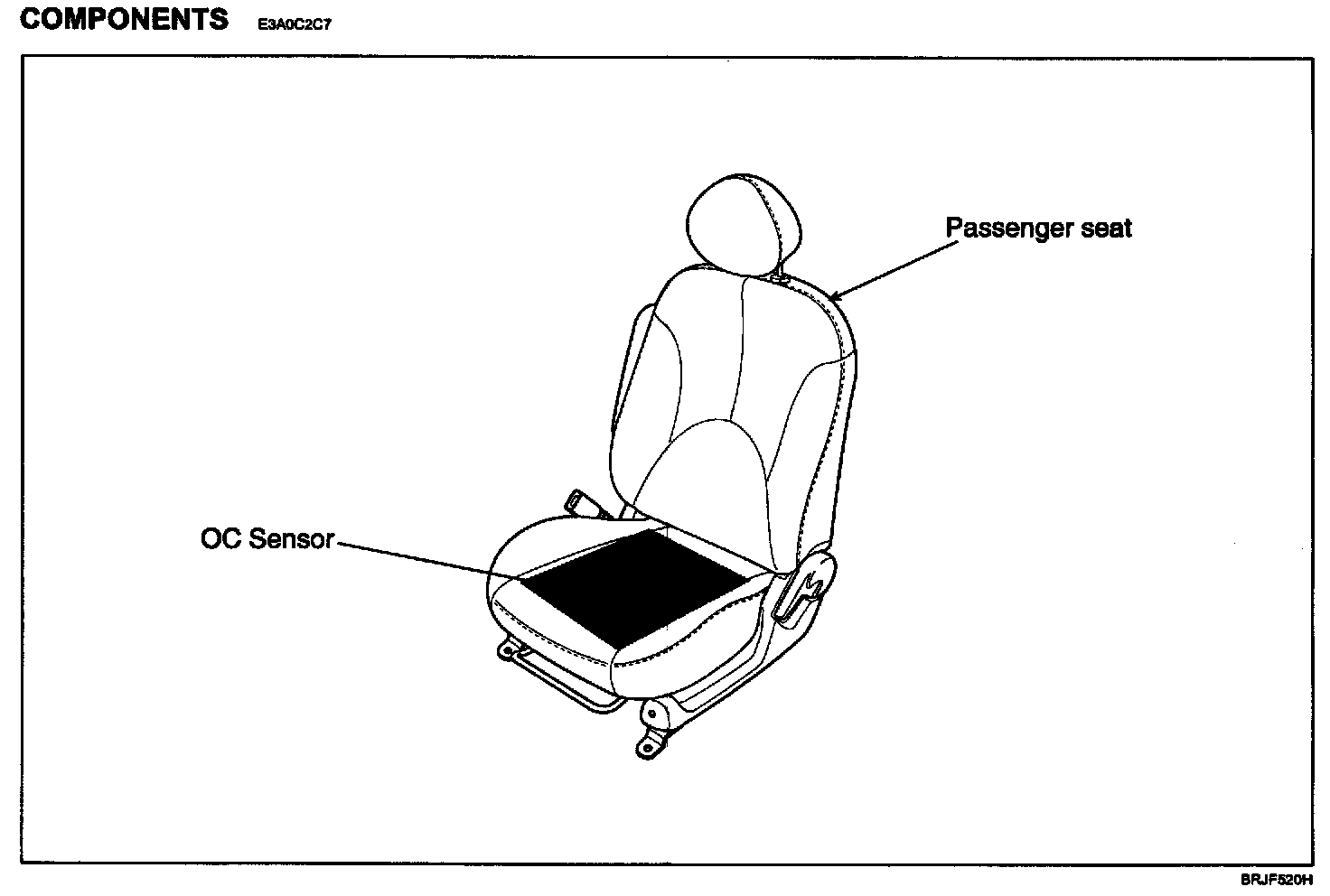

Occupant Classification Sensor (OCS) Components:
