ESC Connector Input/Output
ESC Connector Input/Output
ESC CONNECTOR INPUT/OUTPUT

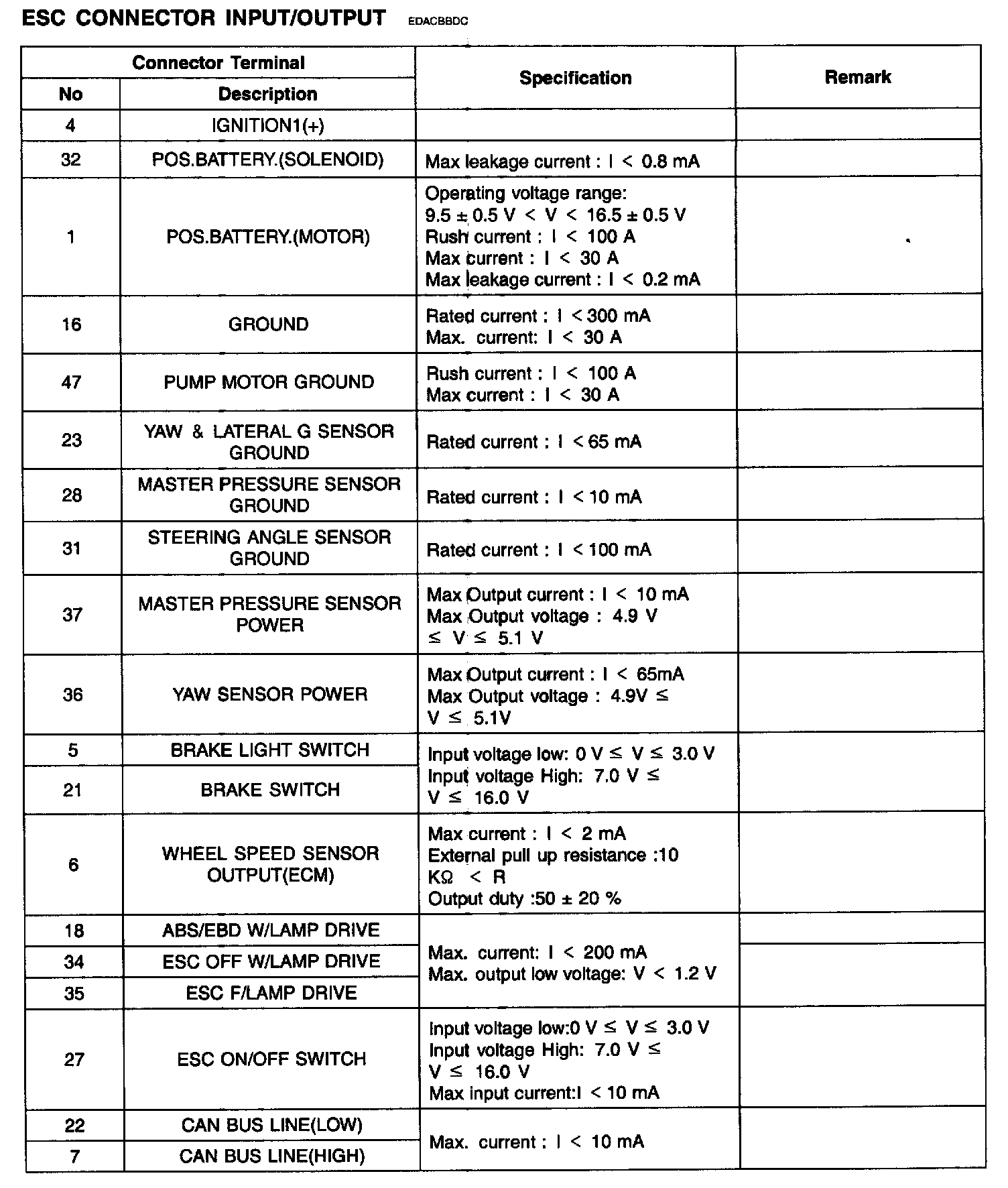

ESC Connector Input/Output (Part 1):

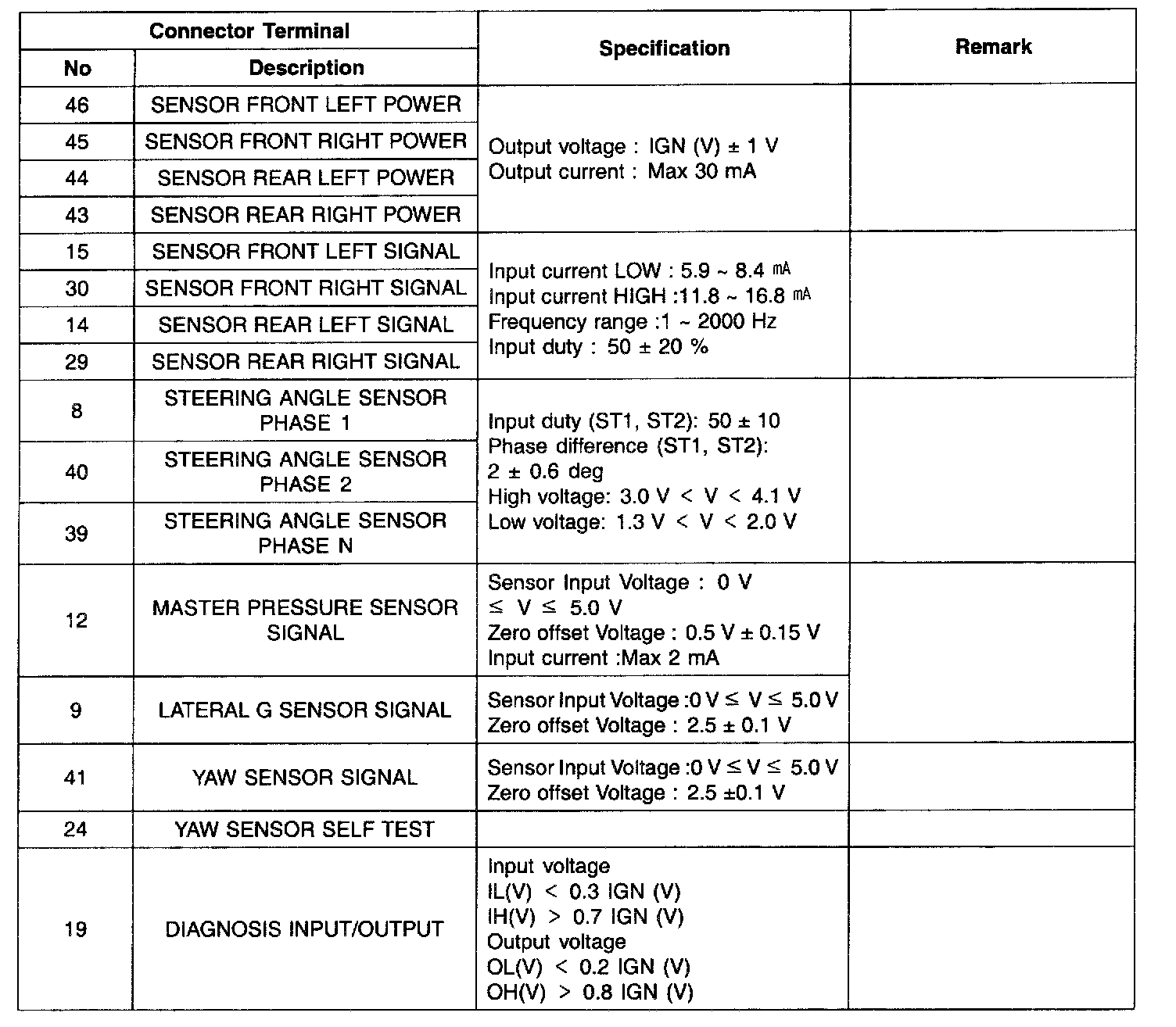

ESC Connector Input/Output (Part 2):
