Home >> Kia >> 2009 >> Spectra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> HECU Connector Input/Output

HECU Connector Input/Output

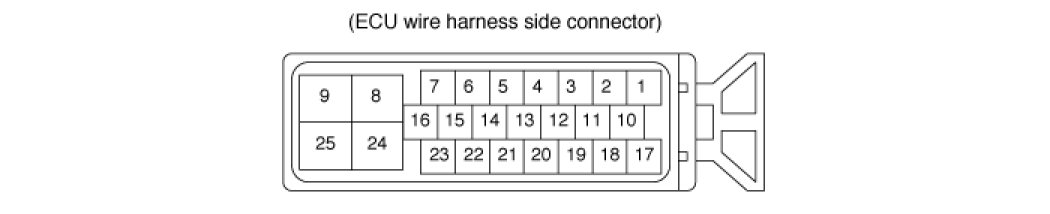

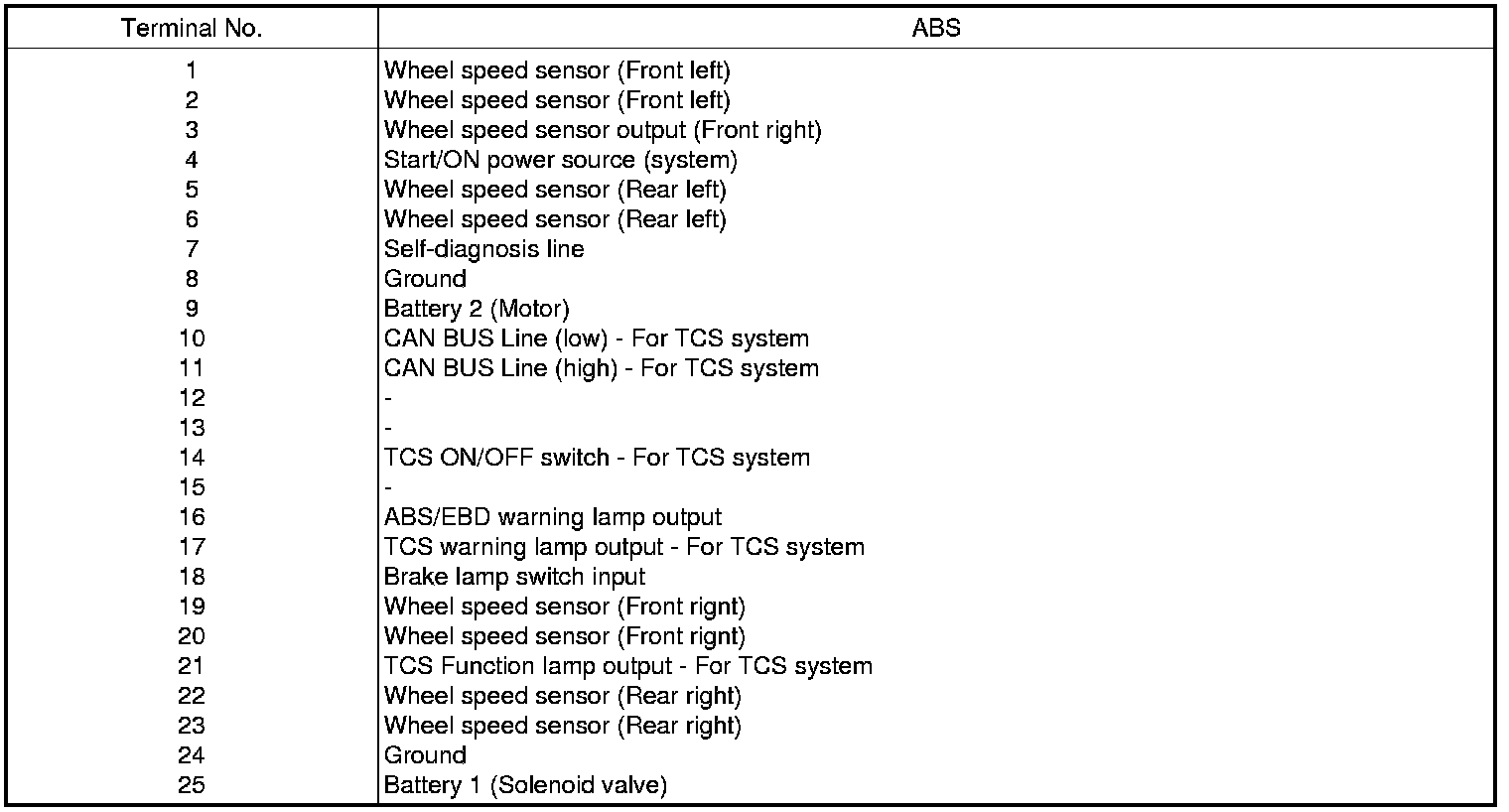

HECU CONNECTOR INPUT/OUTPUT
