Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> R15 Rear Combination Lamp (IN) LH

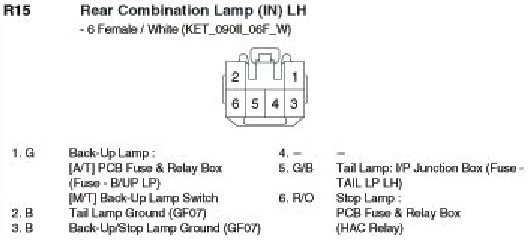

R15 Rear Combination Lamp (IN) LH

R15 Rear Combination Lamp (IN) LH:
