Home >> Kia >> 2012 >> Rondo (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G03

G03

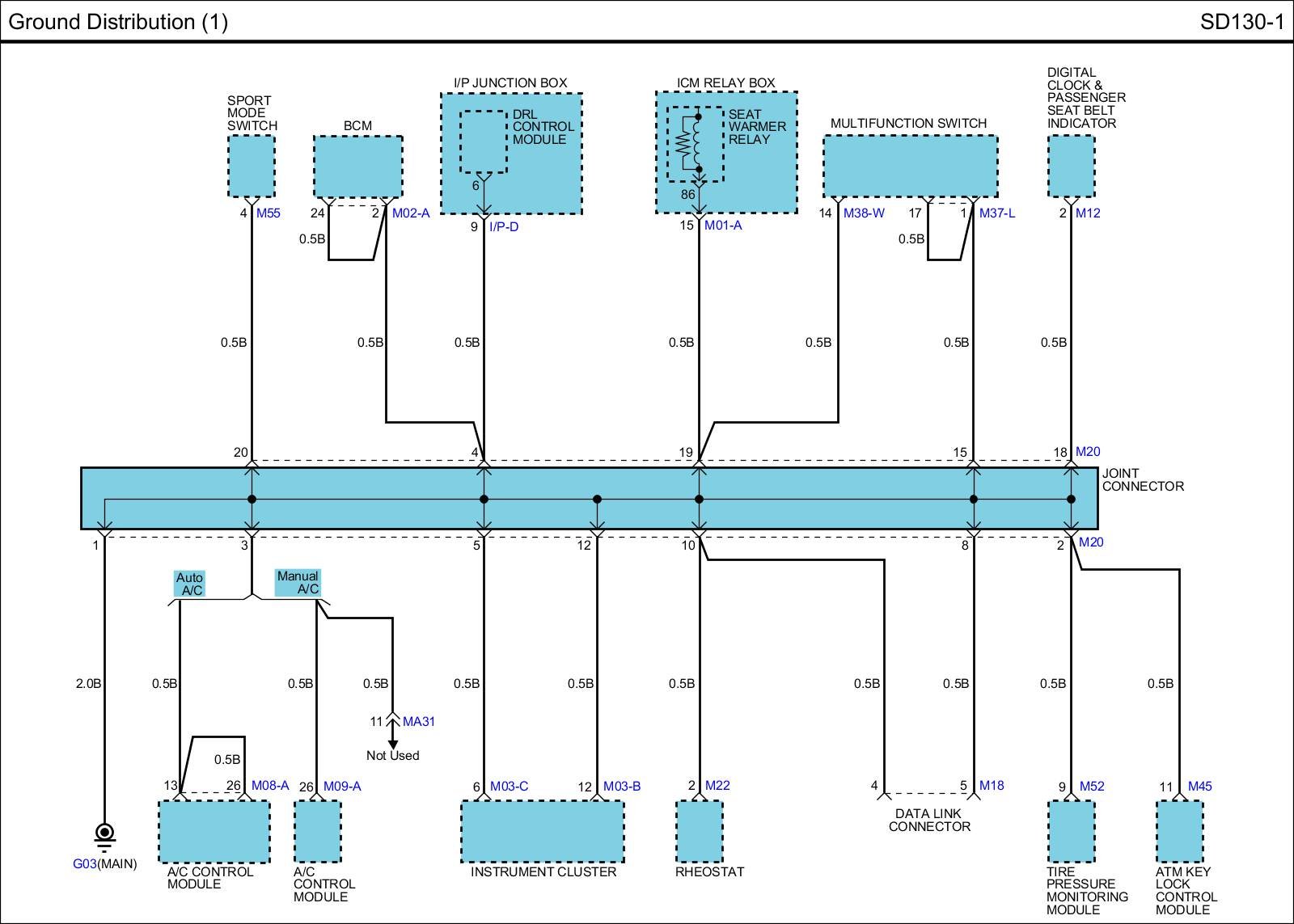

SD130-1 Ground Distribution (1):





SD130-2 Ground Distribution (2):
