Front

REMOVE
1. Open the hood and disconnect the battery negative lead.

Marker Lamp:

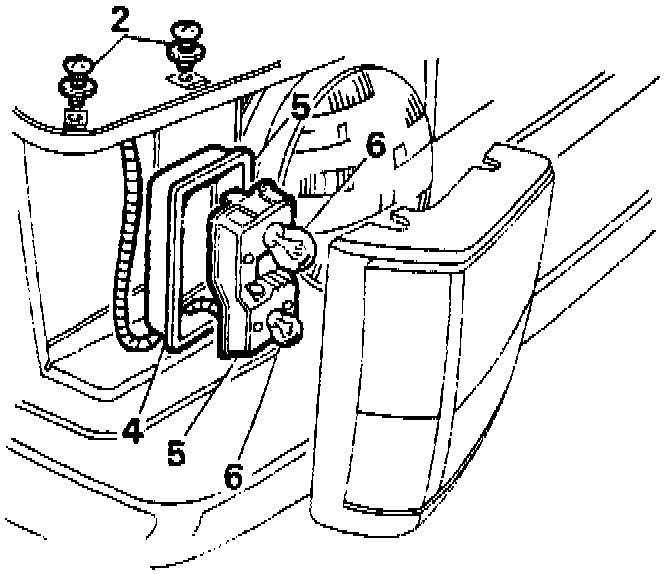

2. Remove the two screws and plain washers securing the lamp assembly.
3. Lift the assembly away sufficiently to gain access to the rear of the lamp.
4. Remove the waterproof cover.
5. Depress the two retaining clips and withdraw the bulb holder.
6. Remove the required bulb. The direction indicator bulb is located in the upper section of the bulb holder, the side lamp bulb in the lower.
7. Disconnect the multi-plug to remove the complete assembly.

REFIT
1. Reverse the removal procedure, ensuring the waterproof cover is located correctly.
