Clock: Service and Repair

REMOVE
1. Disconnect the battery negative terminal.

Clock:

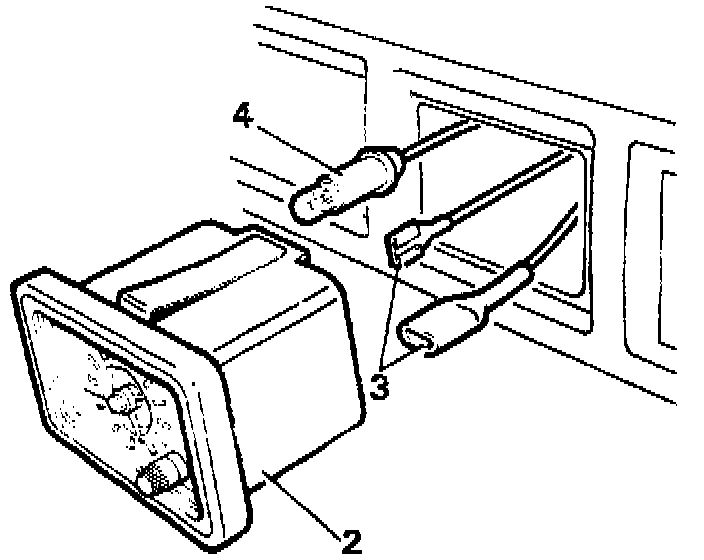

2. Carefully pry the clock out of the dash panel to reveal the electrical connections.
3. Disconnect the two electrical leads.
4. Remove the illumination lead complete with holder and bulb.

NOTE: The clock is illuminated by a 2-watt bayonet type bulb.

REFIT
1. Reverse the removal procedure.
