ABS Main Relay: Locations

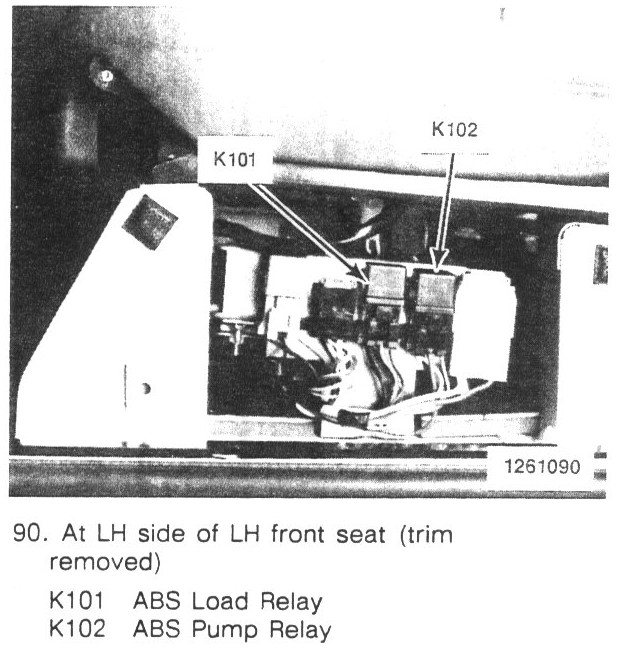

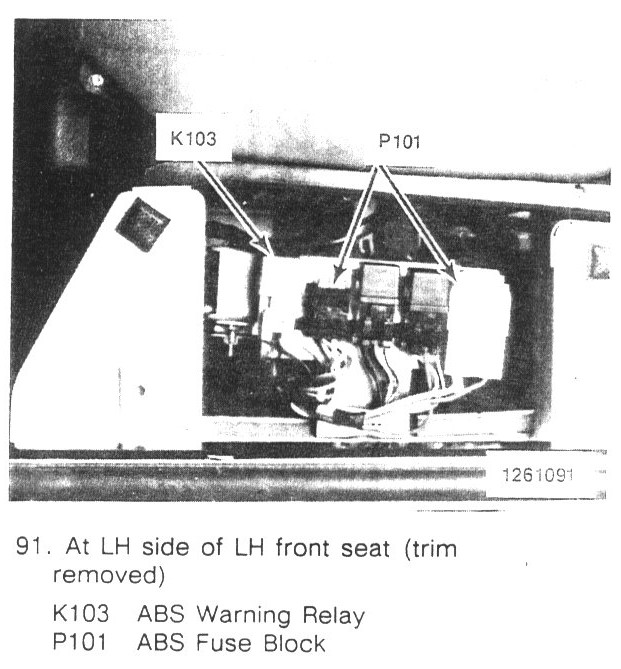

Incorporated in the ABS electrical system are three relays, located beneath the left hand front seat adjacent to the ABS ECU. Access to the relays is gained by removing the seat side trim.

Relays & Fuses:

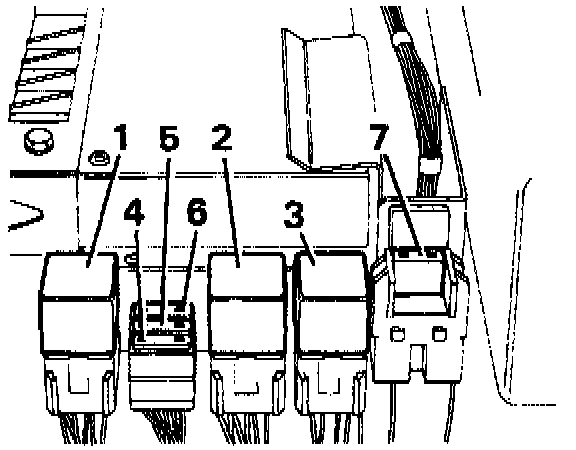

Relay and fuse identification




1. ABS warning light relay, green base - K103



2. Load relay, black base - K101



3. Hydraulic pump relay, black base - K102
4. Hydraulic pump relay fuse, 5amp
5. Stop light switch, diagnostic plug, ECU pin 9 fuse, 5 amp
6. Load relay fuse, 25 amp
7. Hydraulic pump relay fuse 30 amp
