Canister Purge Control Valve: Service and Repair

Purge Valve - Defender 110:

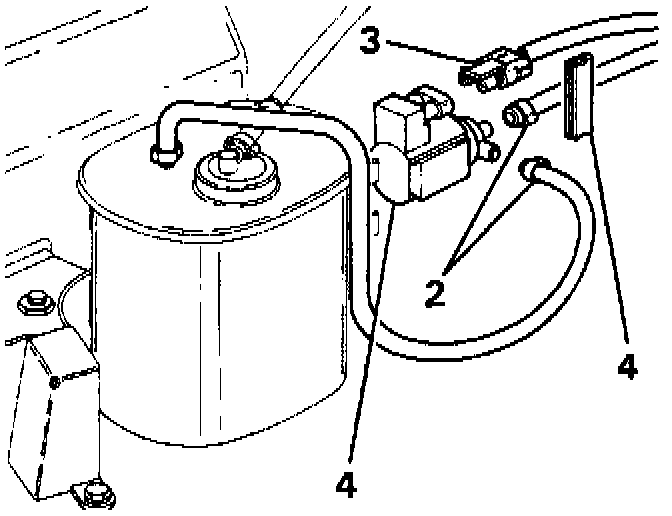

REMOVE
1. DIsconnect battery negative lead.
2. Disconnect two purge valve pipes.
3. Disconnect electrical connection.
4. Remove edge clip retaining purge valve and withdraw purge valve

REFIT
1. Reverse removal procedure ensuring pipes are securely crimped.
