Range Rover County (LH) V8-3.9L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
Harness Locations

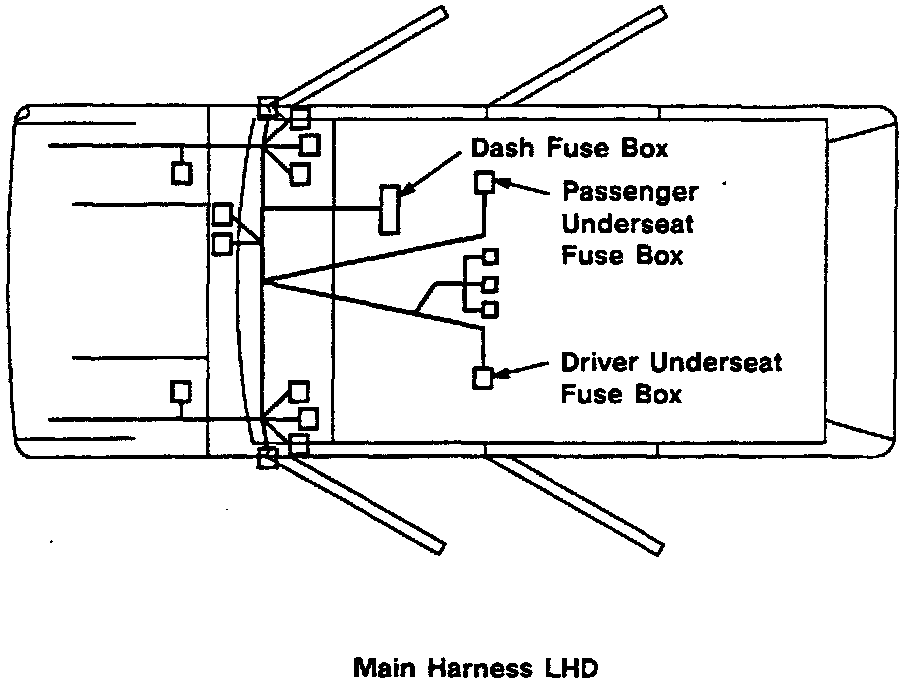

Main Harness LHD:

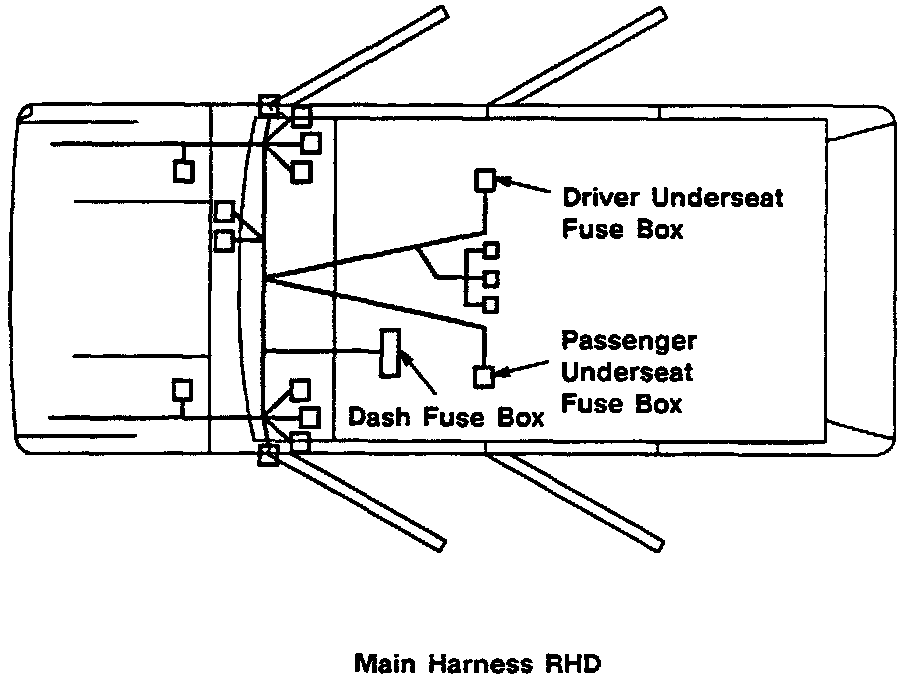

Main Harness RHD:

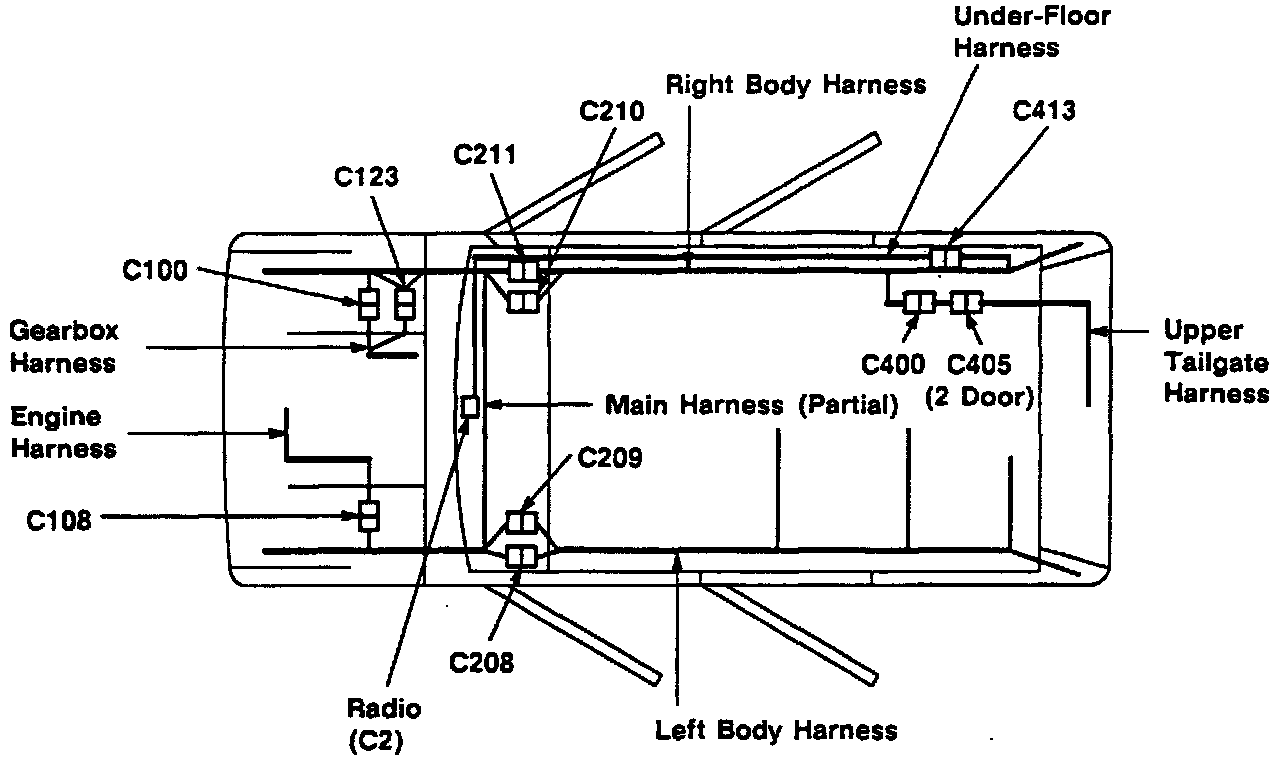

Harness Routing:

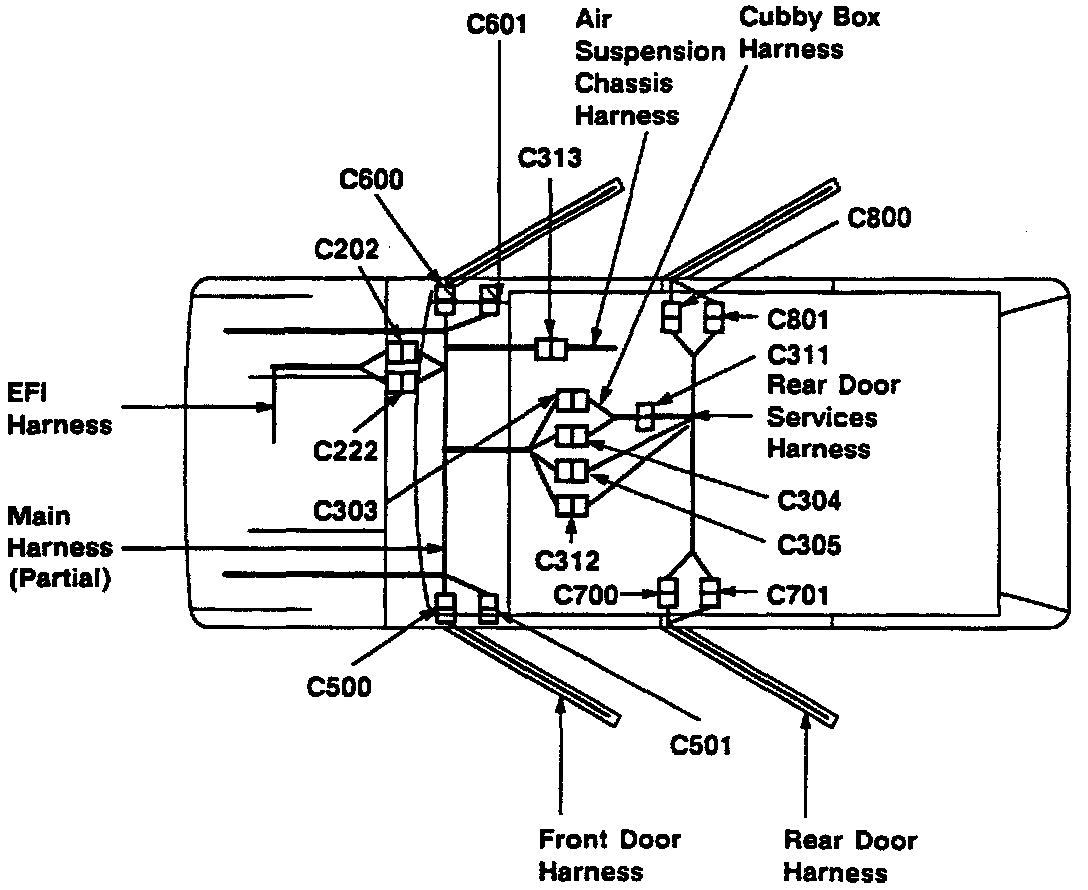

Harness Routing:
