Home >> Land Rover >> 1993 >> Range Rover County (LH) V8-3.9L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Splice Distribution >> S2000

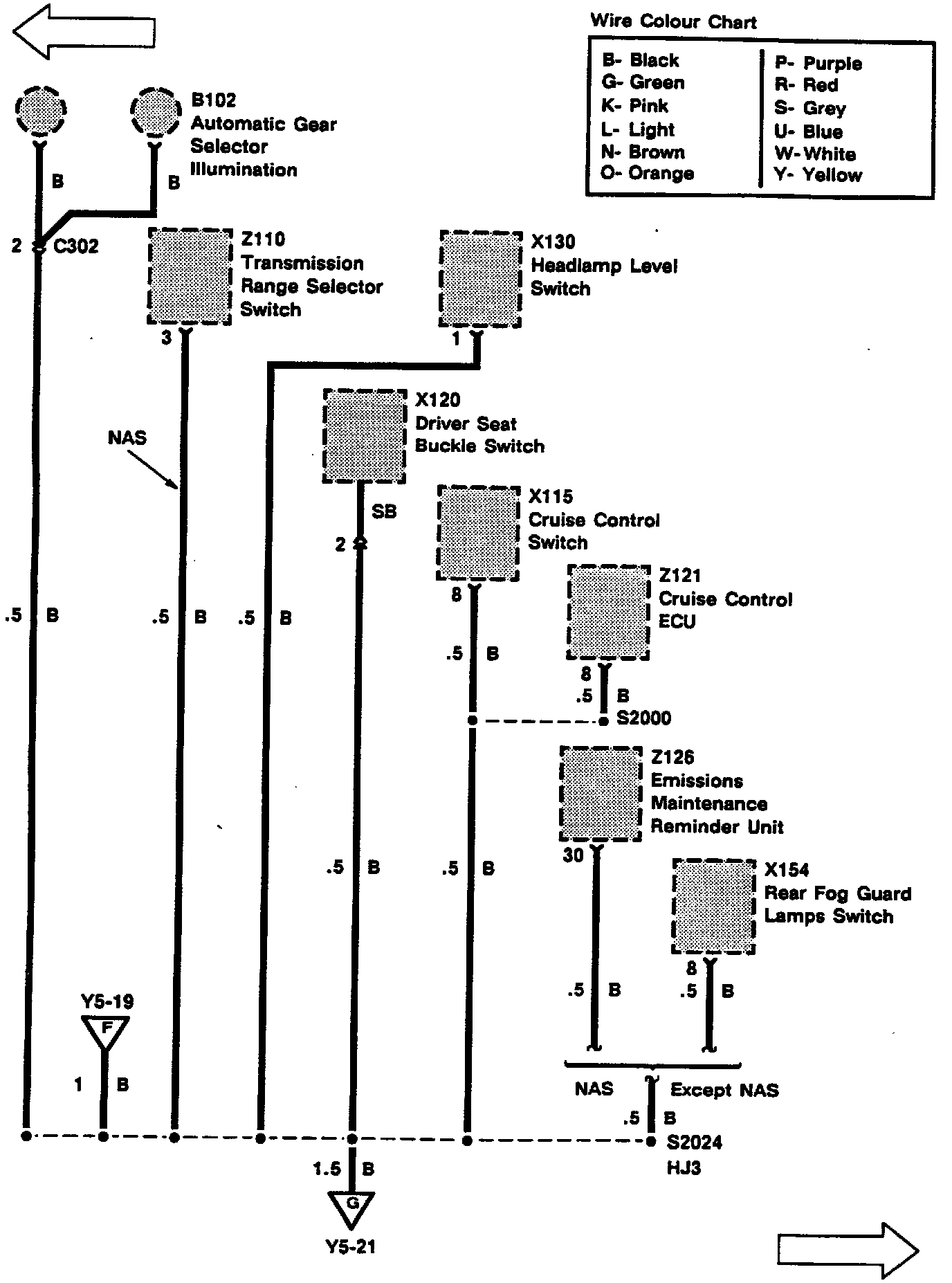

S2000

Y5-20:
