Land Rover
>>
1994
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2068 - C2073
C2068 - C2073

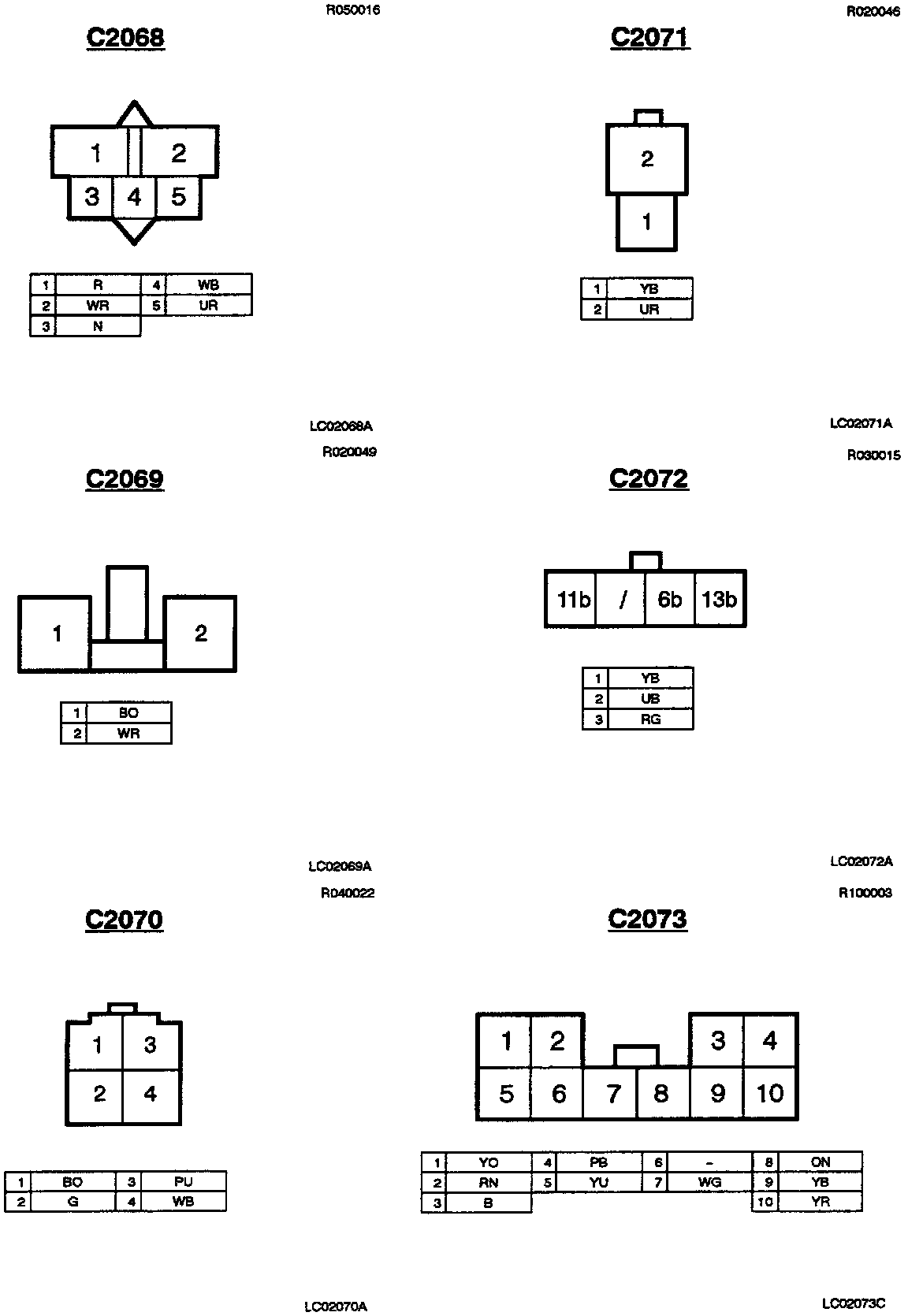

C2068, C2069, C2070, C2071, C2072, C2073:
