Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
1994
>>
Discovery I (LJ) V8-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C385 - C390
C385 - C390

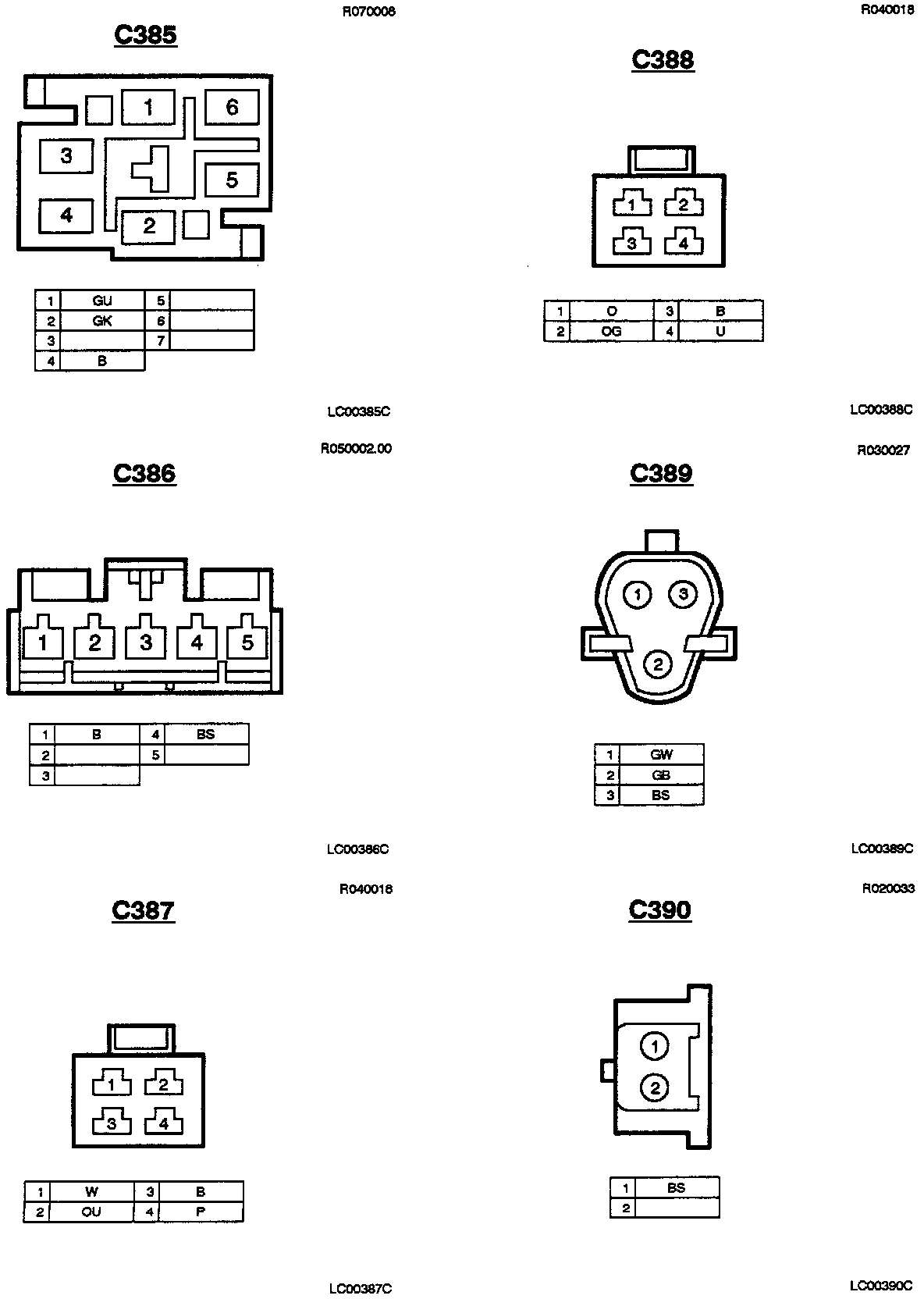

C385, C386, C387, C388, C389, C390:
