Home >> Land Rover >> 1994 >> Discovery I (LJ) V8-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> HJ1 - HJ3

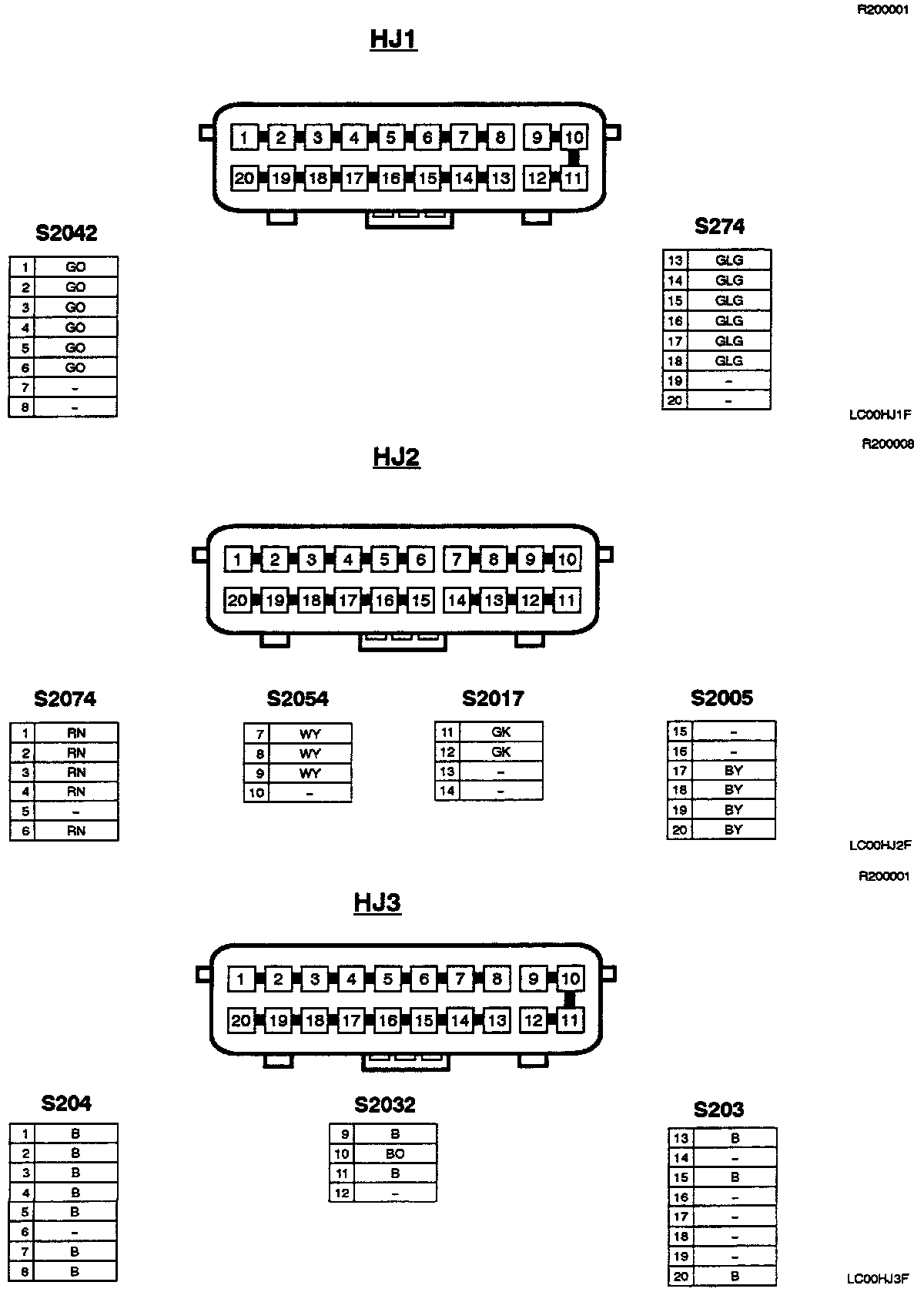

HJ1 - HJ3

HJ1, HJ2, HJ3:
