Suspension Warning Indicator: Service and Repair

Remove and refit

NOTE: Each switch contains a warning light bulb, and an illumination bulb.

Remove






1. Remove center dash panel.

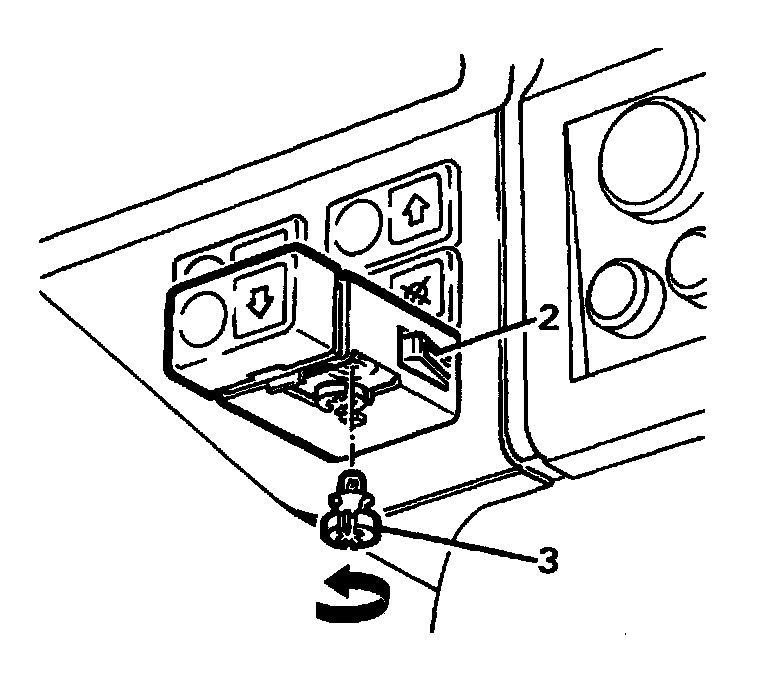

2. Depress locating tags of switch to remove switch.
3. Remove bulb by turning counter-clockwise and releasing from switch.

Refit

4. Fit new bulb and turn counter-clockwise until fully located.
5. Reverse removal procedure.
