Wiper Motor: Service and Repair

Windscreen Wiper Motor, Linkage and Wheel Boxes

Service Repair No - 84.15.12

Remove

1. Disconnect negative battery lead.

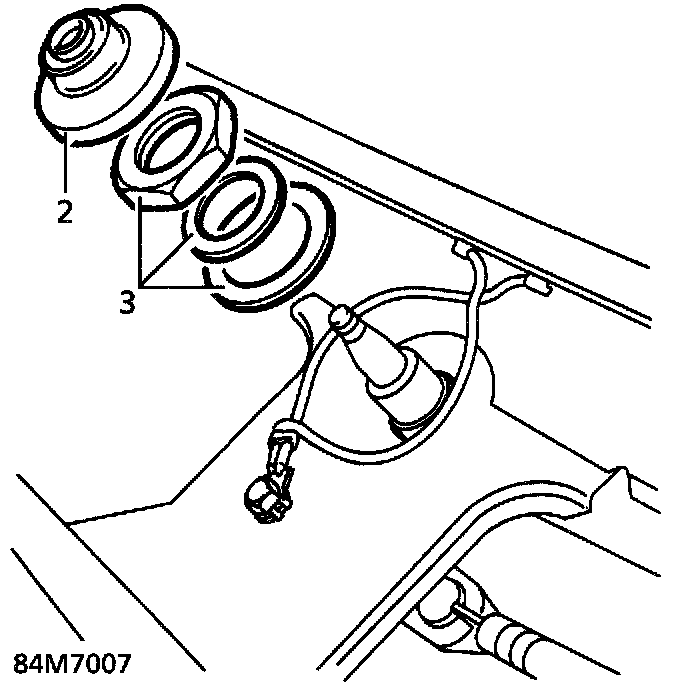

2. Remove wiper arms. Remove locknuts from wheel boxes.
3. Remove grommet from wheel boxes.





4. Remove bonnet (hood).

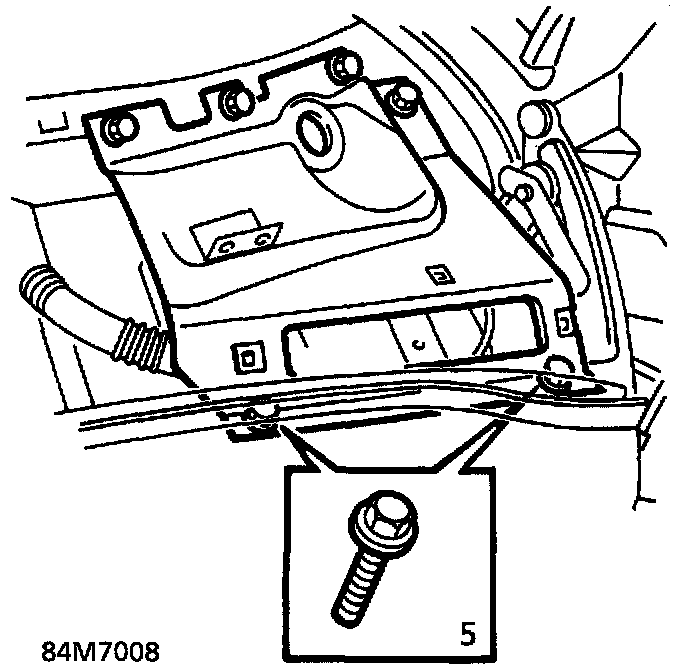

5. Remove the front decker (cowl) panel.

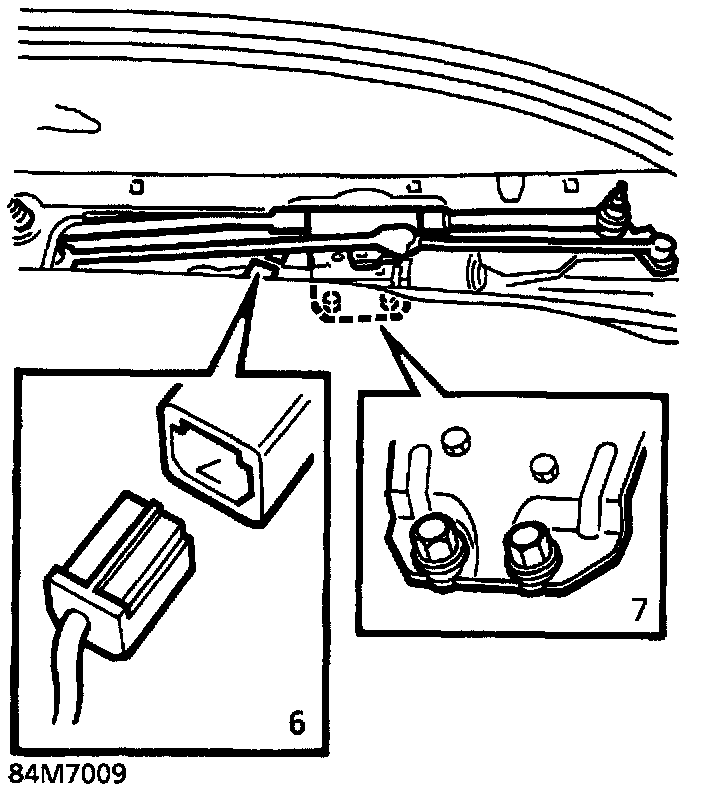

6. Remove spring clips securing primary links to wheelbox shaft links.





7. Remove spring clips securing primary links to motor crank.
8. Remove primary links.
9. Remove lower grommet from wheelboxes.
10. Remove screw securing bonnet (hood) torsion bar bracket. Unclip bracket from torsion bar.
11. Remove remaining screws securing motor and linkage assembly to bulkhead.
12. Ease unit from mounting location and disconnect electrical leads at plug and socket.
13. Withdraw unit.
14. Remove three bolts securing motor to mounting plate.
15. Seperate motor from mounting plate by pulling motor crank through grommet.

Refit

1. Reverse removal procedure.
2. Ensure primary links are mounted with the bushes on the inside, towards wiper motor. The shorter primary link is mounted on driver side.
3. Replace front decker (cowl) panel.
4. Replace bonnet (hood).
5. Replace wiper arms.
