Cellular Phone Transceiver: Service and Repair

Transceiver Module

Service Repair No - 86.53.12

Removal

1. Remove the RH lower rear quarter trim panel.

CAUTION: Cover fibre optic cable connectors to minimise dust ingress and avoid bending the cables in a radius of less than 30 mm.

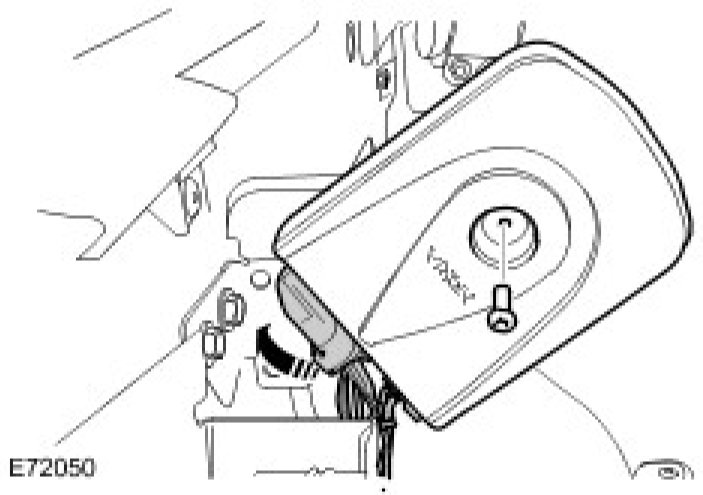

2. Remove the cellular phone module.
^ Remove the Torx bolt.
^ Disconnect the 2 electrical connectors.





Installation
1. Install the cellular phone module.
^ Connect the electrical connectors.
^ Tighten the Torx bolt to 10 Nm (7 lb.ft).
2. Install the RH lower rear quarter trim panel.
3. Using WDS, configure a new module.
