Land Rover
>>
2009
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G4AT22 - G4D151B
>>

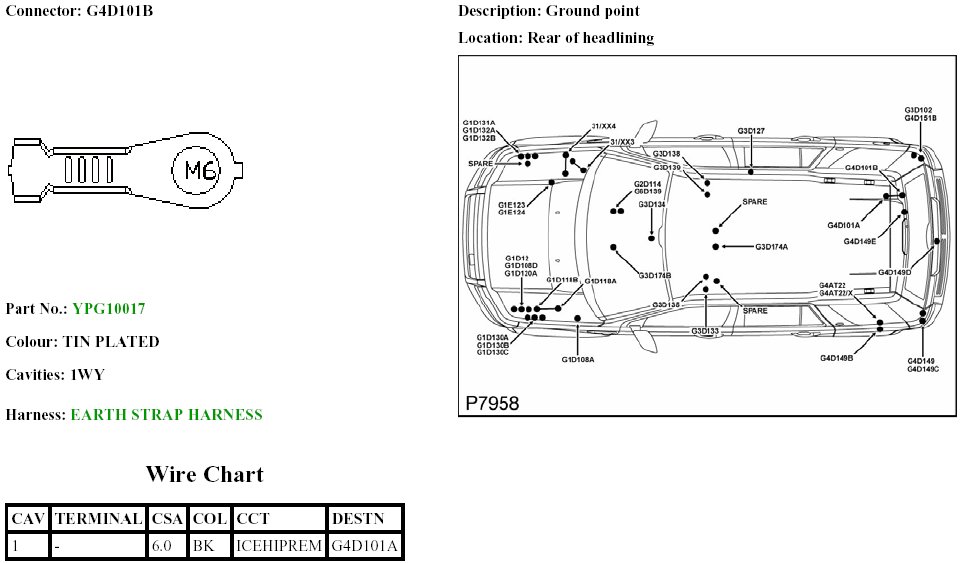

G4D101B
G4D101B
G4D101B:
