LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Transfer Case Actuator
Transfer Case Actuator

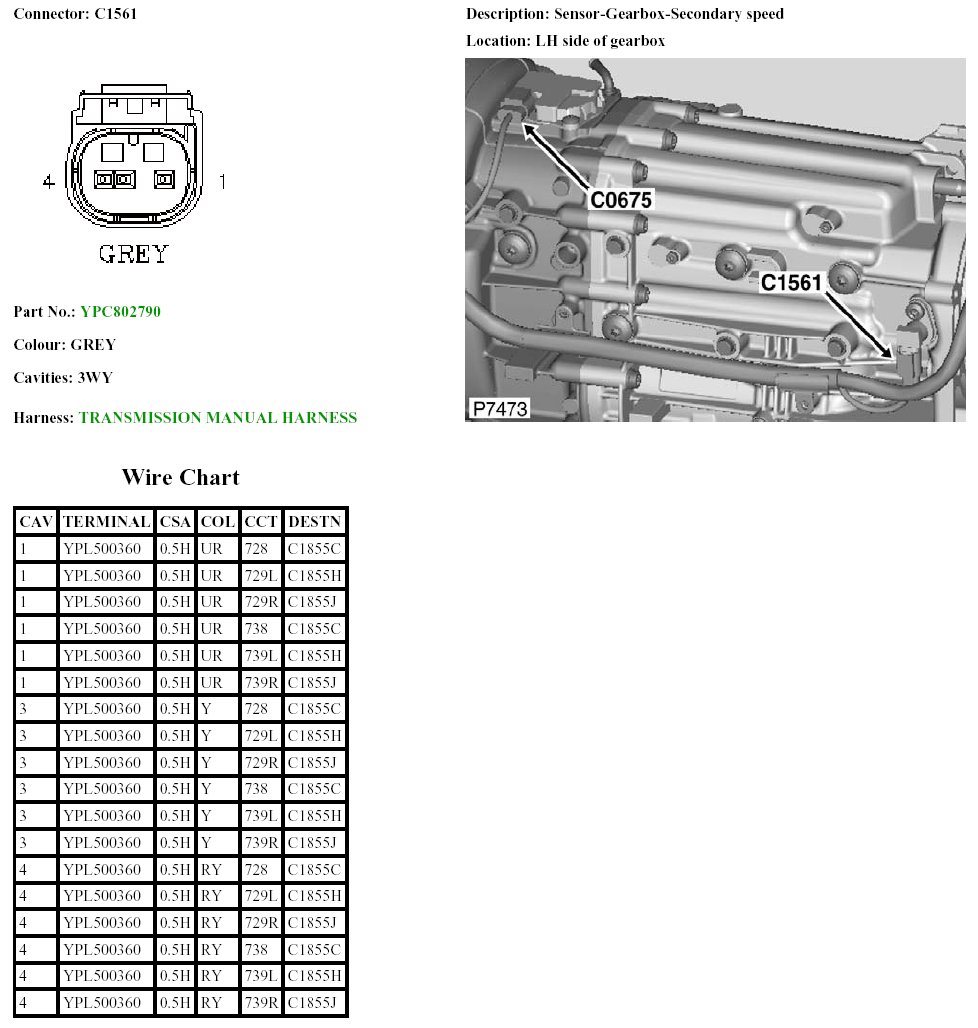

Sensor-Gearbox-Secondary Speed
C1561:
