Home
>>
Land Rover
>>
2009
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Switch Pack-Seat-Passenger
Switch Pack-Seat-Passenger
Switch Pack-Seat-Passenger

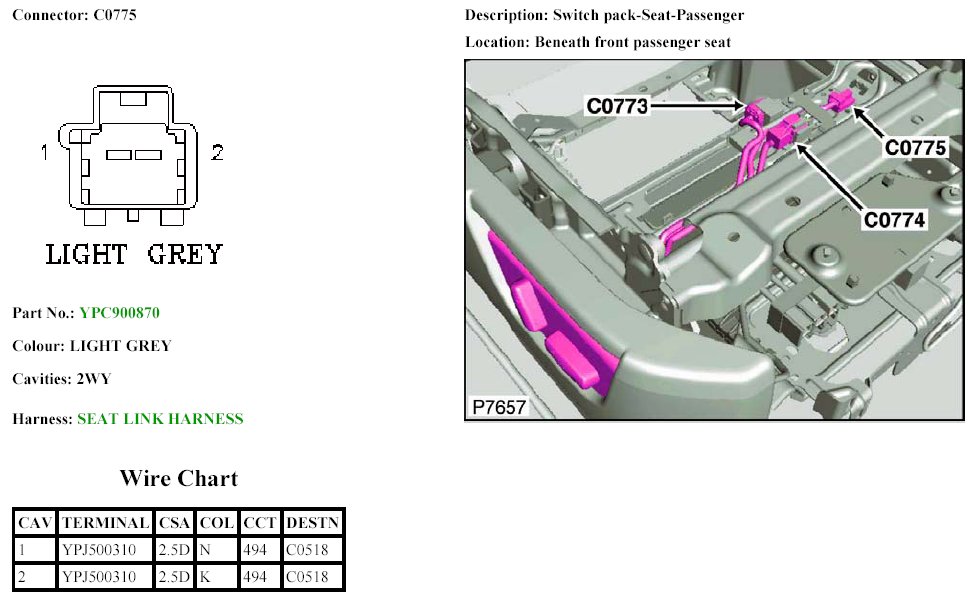

C0775:
