Seat Temperature Element: Service and Repair

Front Seat Cushion Heater Mat

Service Repair No - 78.30.23

Removal

1. Remove the front seat cushion cover.

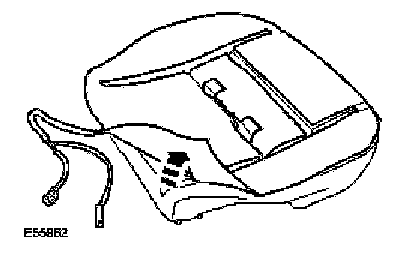

2. Remove the front seat cushion heater mat.





Installation

1. Install the front seat cushion heater mat.
2. Install the front seat cushion cover.
