Symptom Related Diagnostic Procedures

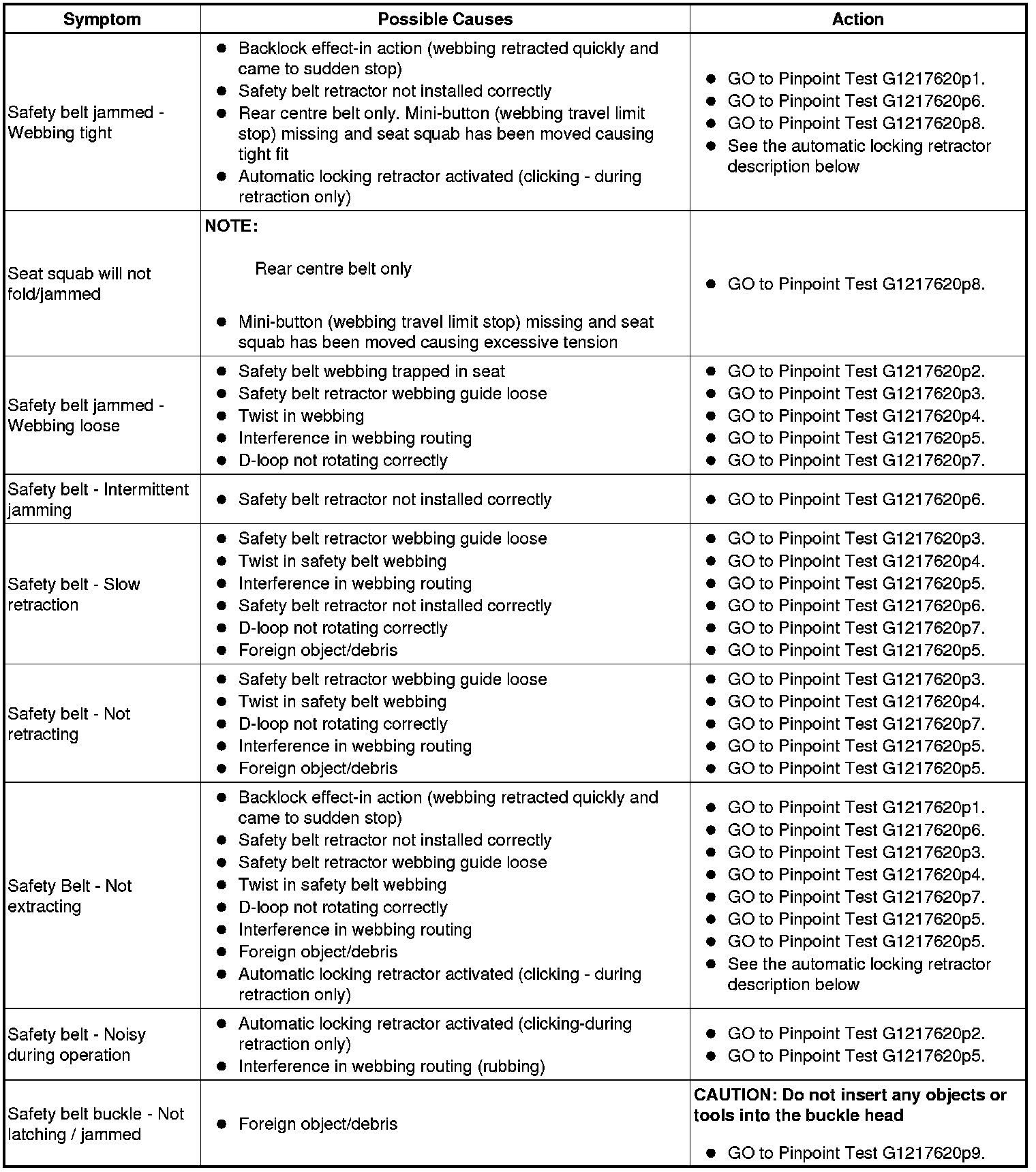

Symptom Chart for Safety Belt Rows 1, 2 and 3






DTC Index
For a list of diagnostic trouble codes that could be logged on this vehicle, please refer to General specifications or for removal and installation/description and operation see Seat Belt System
