ES 330 V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
F5 - H16
F5 - H16

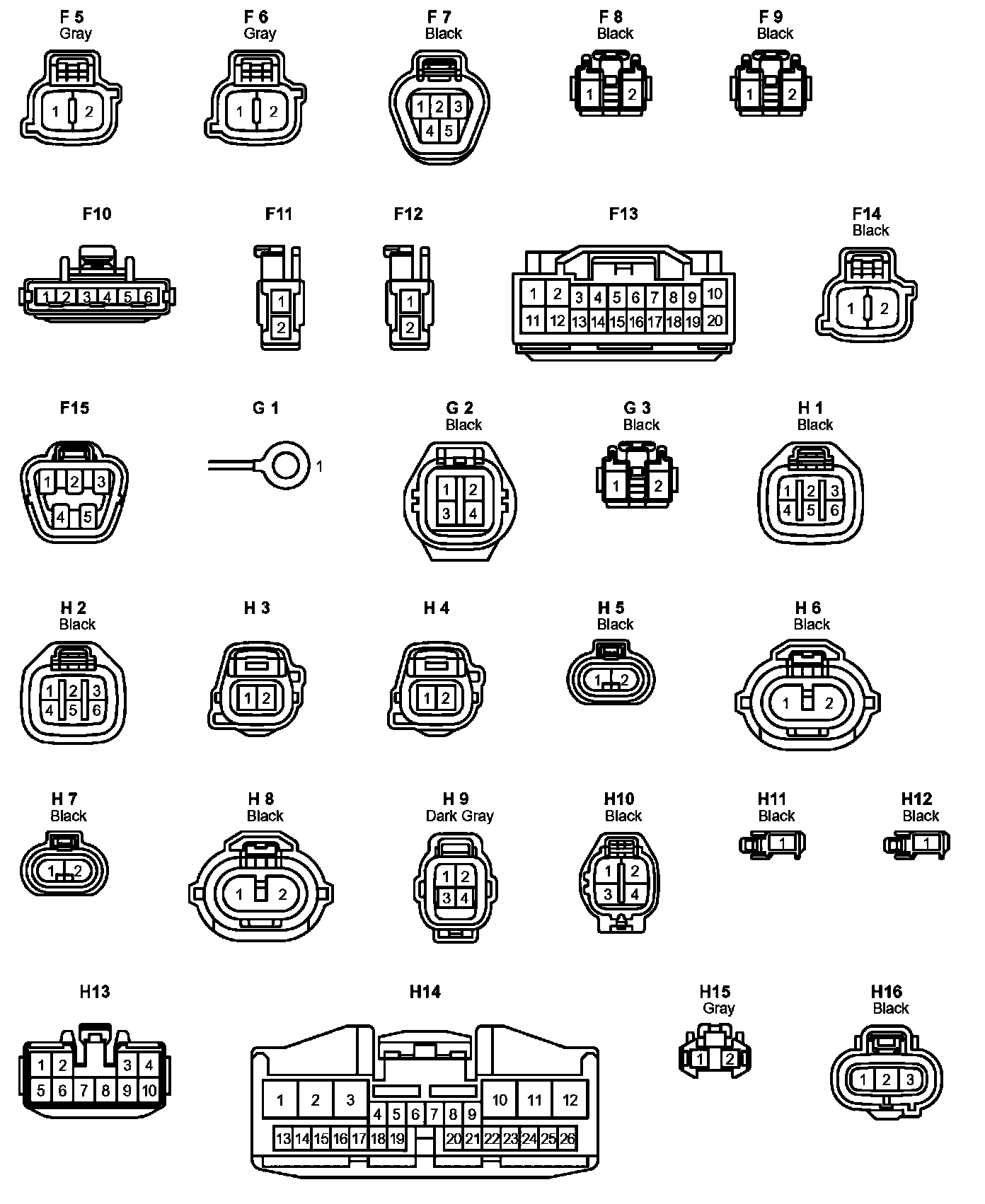

F5 - H16:
