Home >> Lexus >> 2006 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> L15 - P4

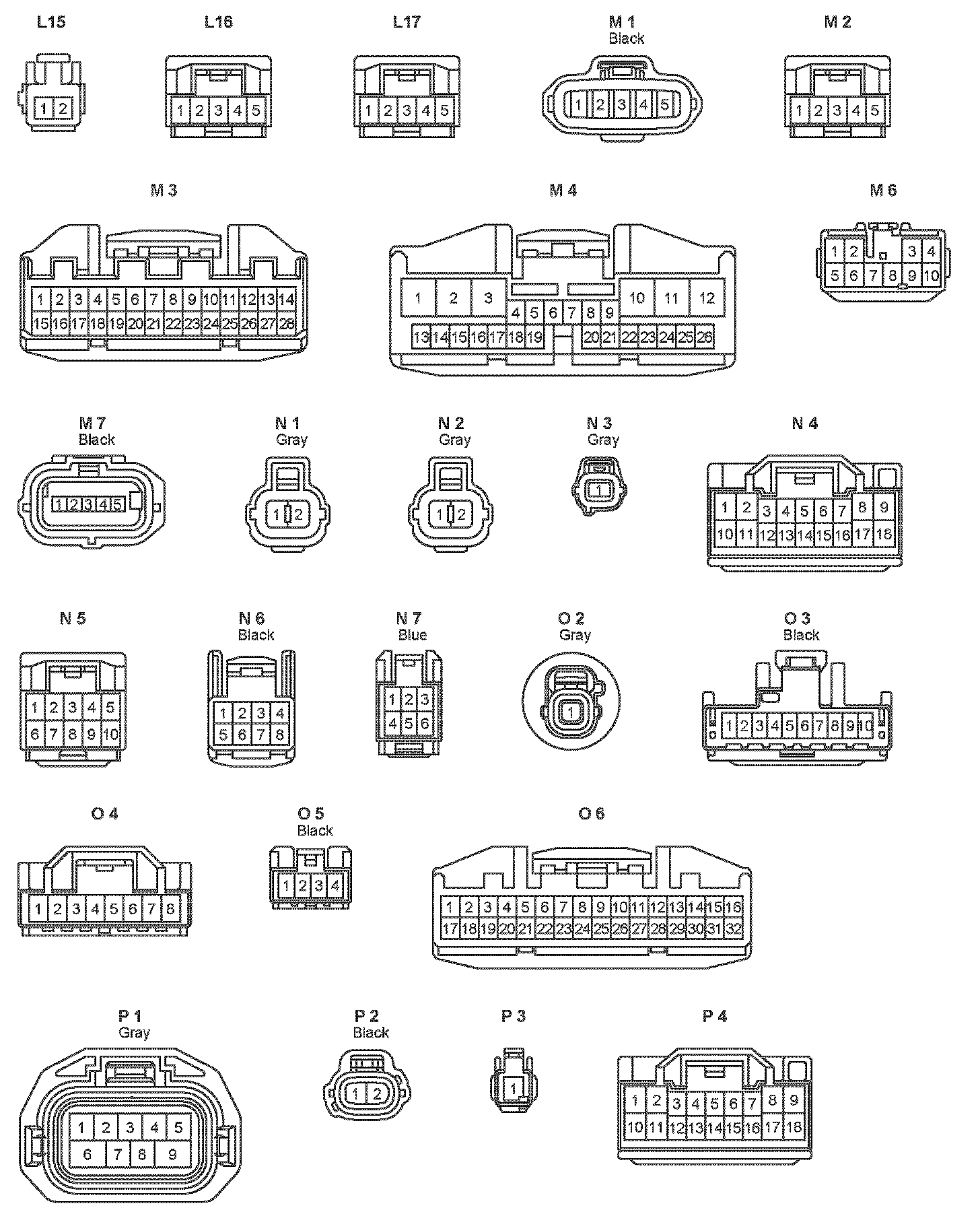

L15 - P4

L15 - P4:
