Home >> Lexus >> 2007 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> L15 - M6

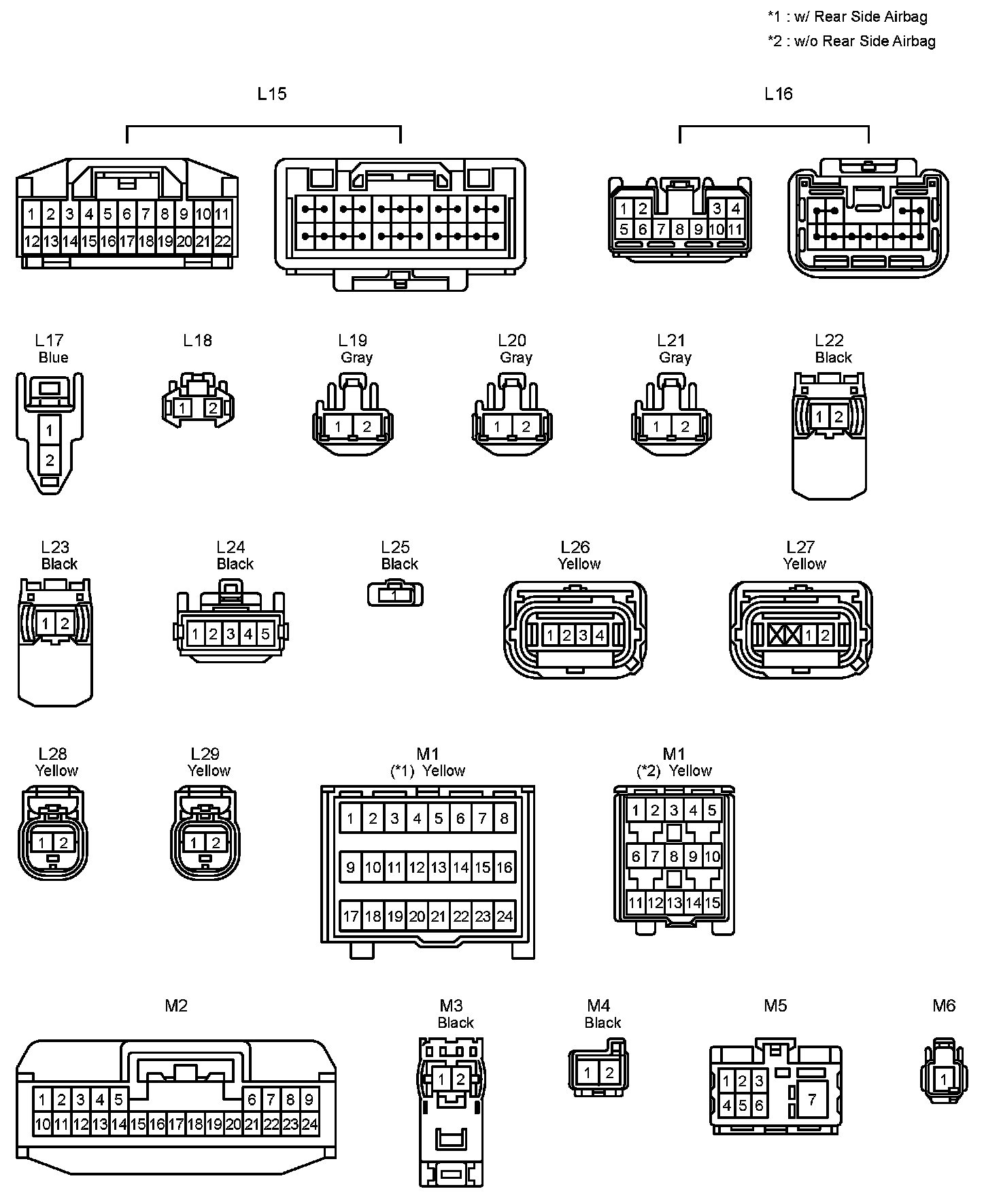

L15 - M6

L15 - M6:
