Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2008
>>
IS F V8-5.0L (2UR-GSE)
>>
Repair and Diagnosis
>>
Maintenance
>>
Wheels and Tires
>>
Wheel Hub
>>
Service and Repair
>>
Front Axle Hub
>>
Components
Components

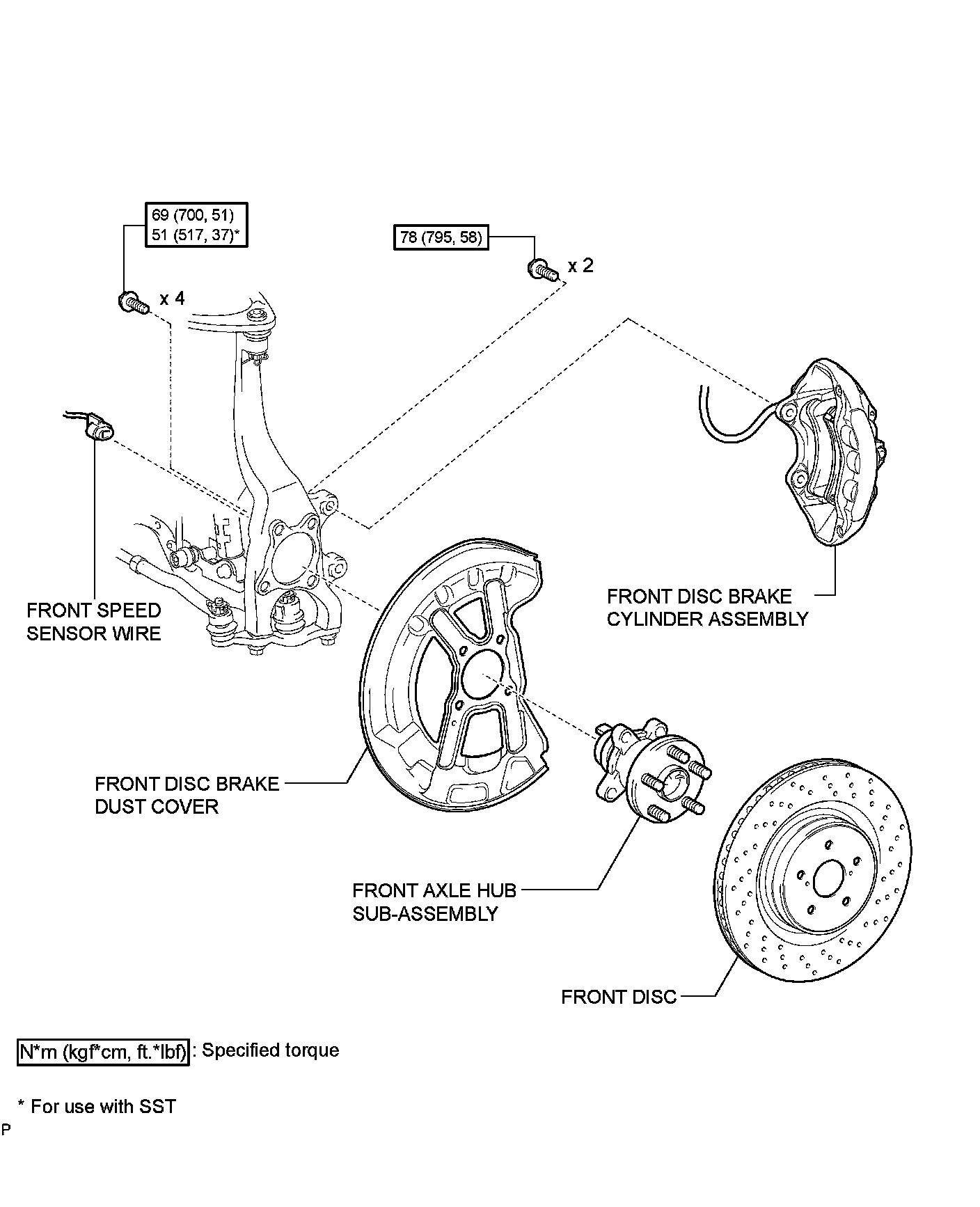

AXLE AND DIFFERENTIAL: FRONT AXLE HUB: COMPONENTS
AXLE AND DIFFERENTIAL: FRONT AXLE HUB: COMPONENTS
ILLUSTRATION
