Components

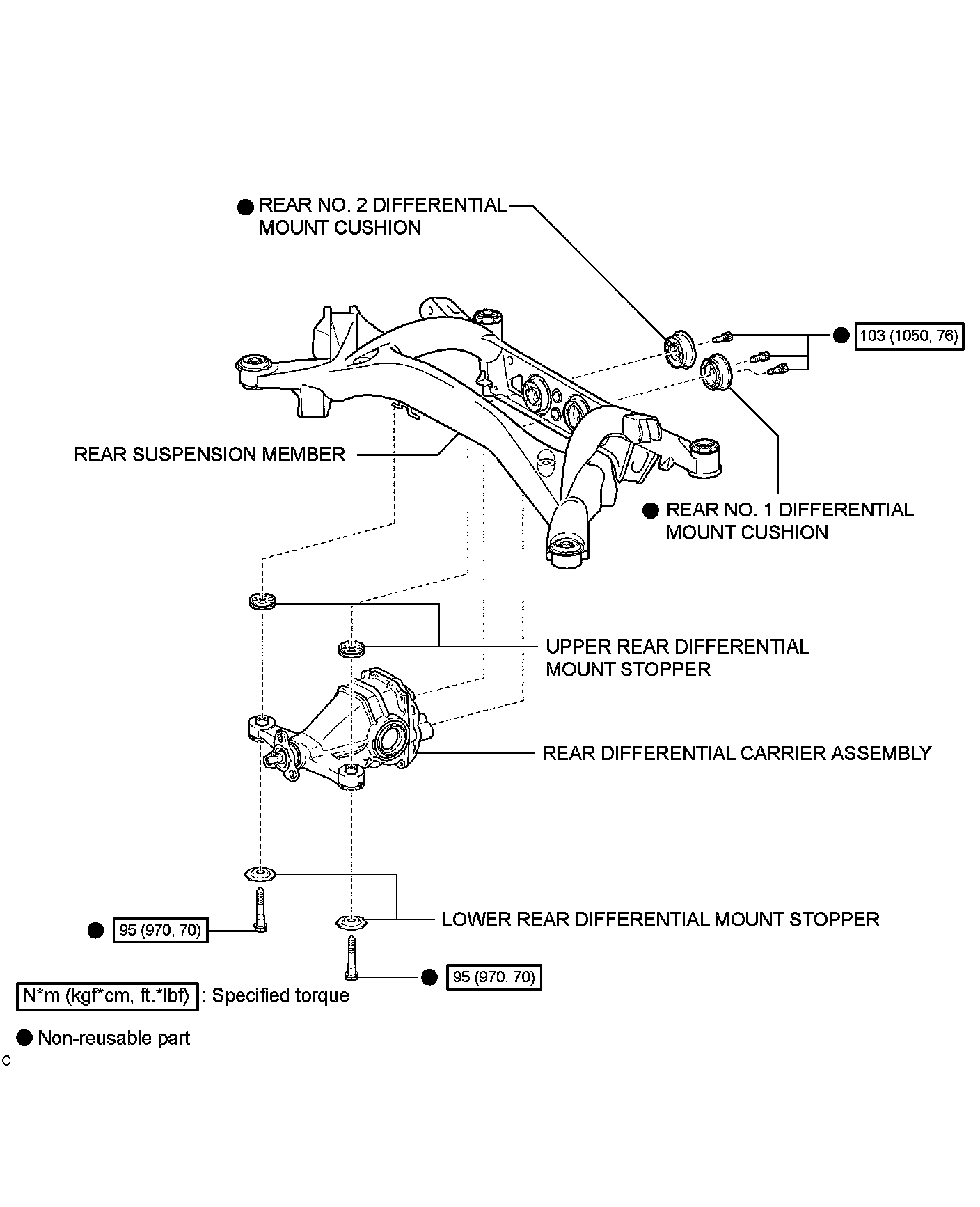

AXLE AND DIFFERENTIAL: DIFFERENTIAL MOUNT CUSHION: COMPONENTS

AXLE AND DIFFERENTIAL: DIFFERENTIAL MOUNT CUSHION: COMPONENTS

ILLUSTRATION
