Installation

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: REAR SPEED SENSOR: INSTALLATION

INSTALLATION

1. INSTALL REAR SPEED SENSOR

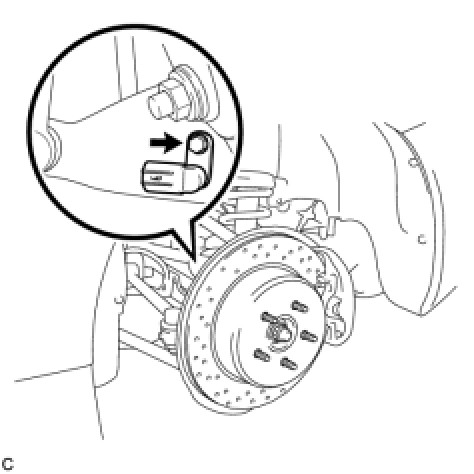

(a) Install the rear speed sensor with the bolt.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)
NOTE:
Prevent foreign matter from attaching to the sensor tip.

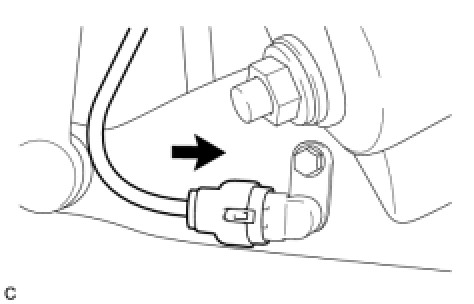

2. INSTALL REAR SPEED SENSOR WIRE





(a) Connect the rear speed sensor wire.
3. INSTALL REAR WHEEL
(a) Install the rear wheel.
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
4. CHECK FOR SPEED SENSOR SIGNAL
Test Mode Procedure
