Multiple Junction Connector
>>

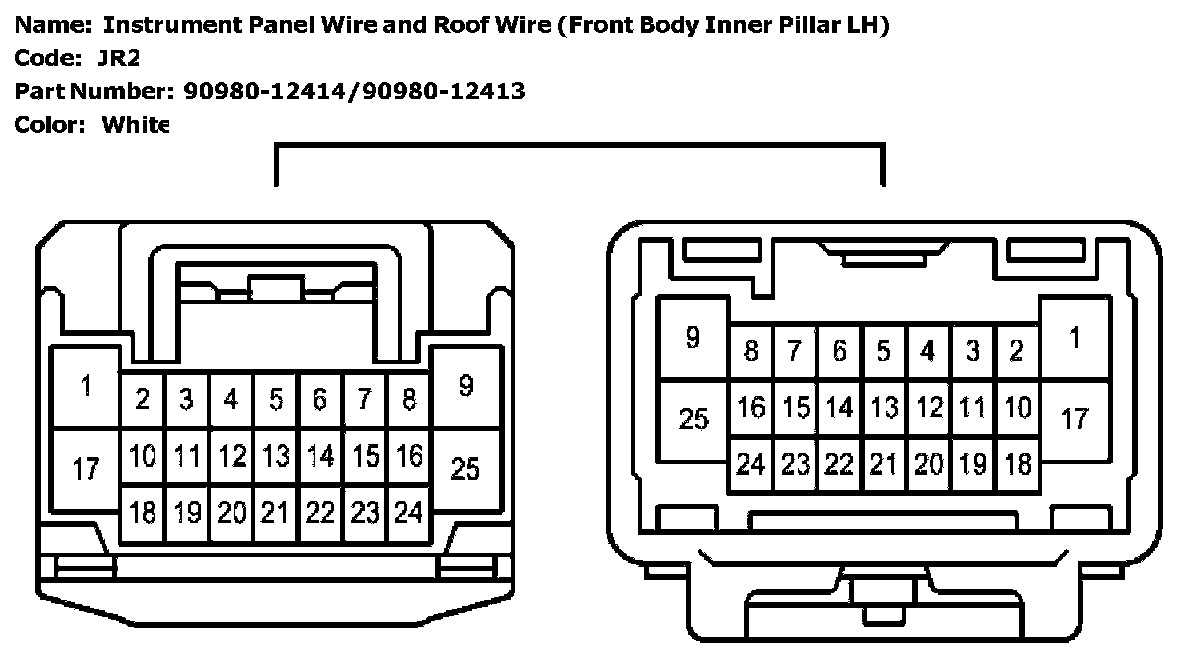

Instrument Panel Wire
Instrument Panel Wire

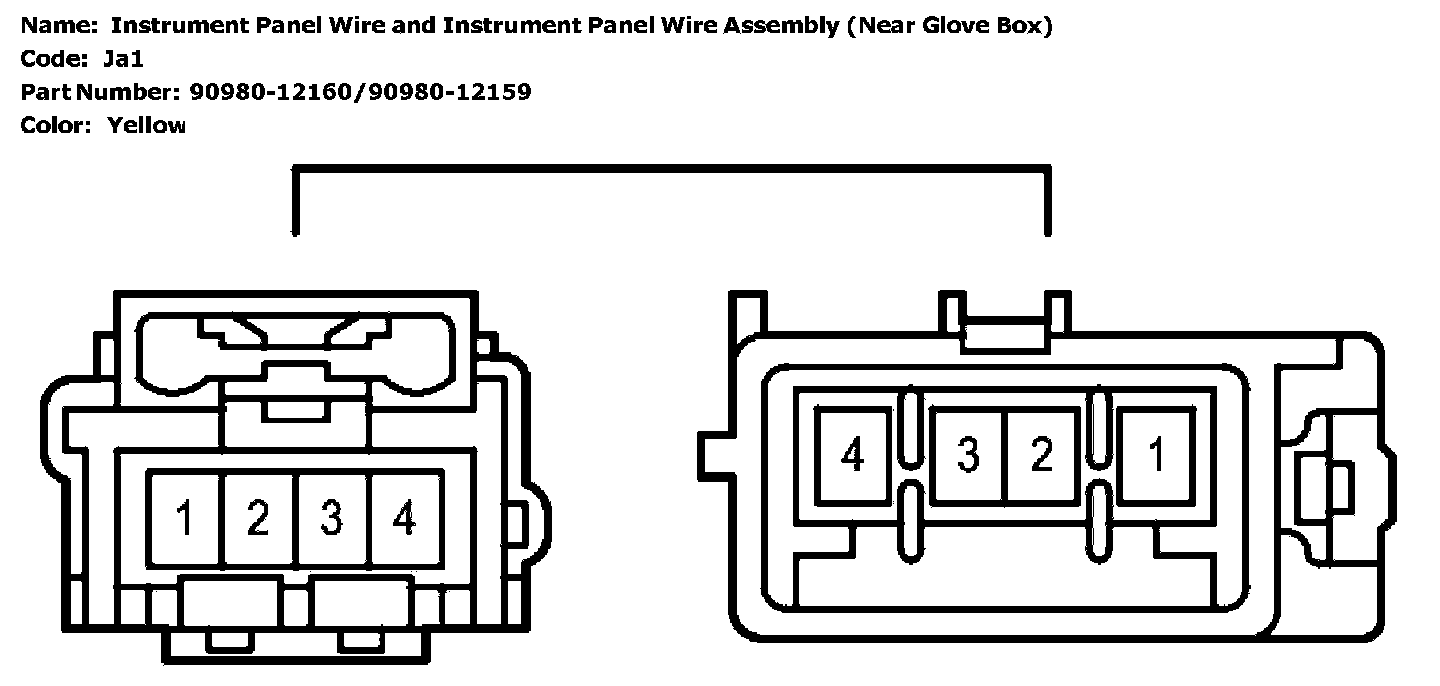

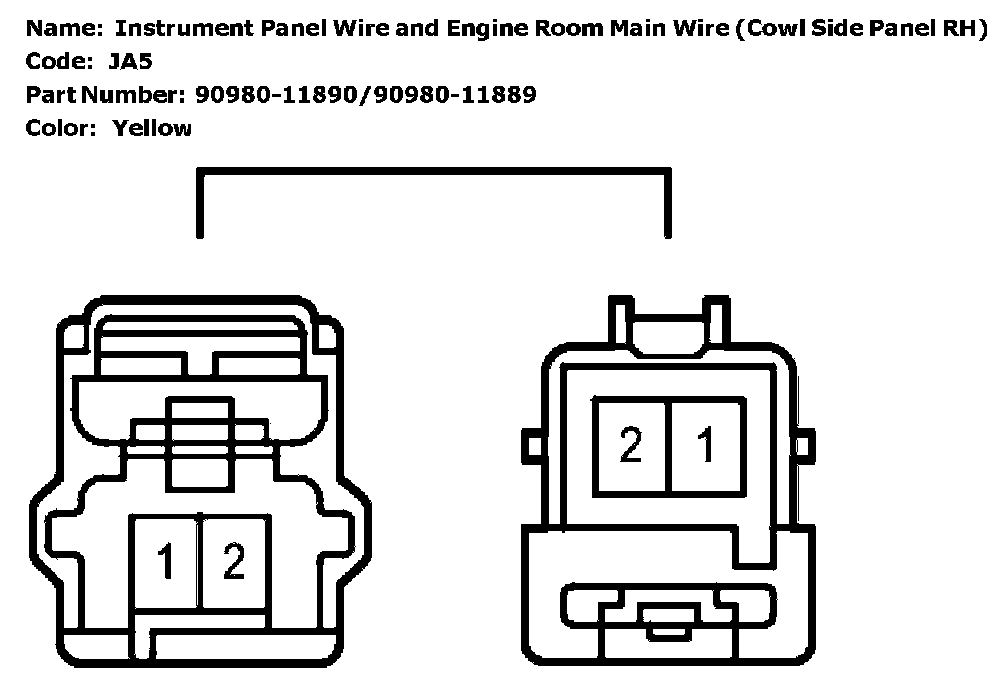

Yellow:

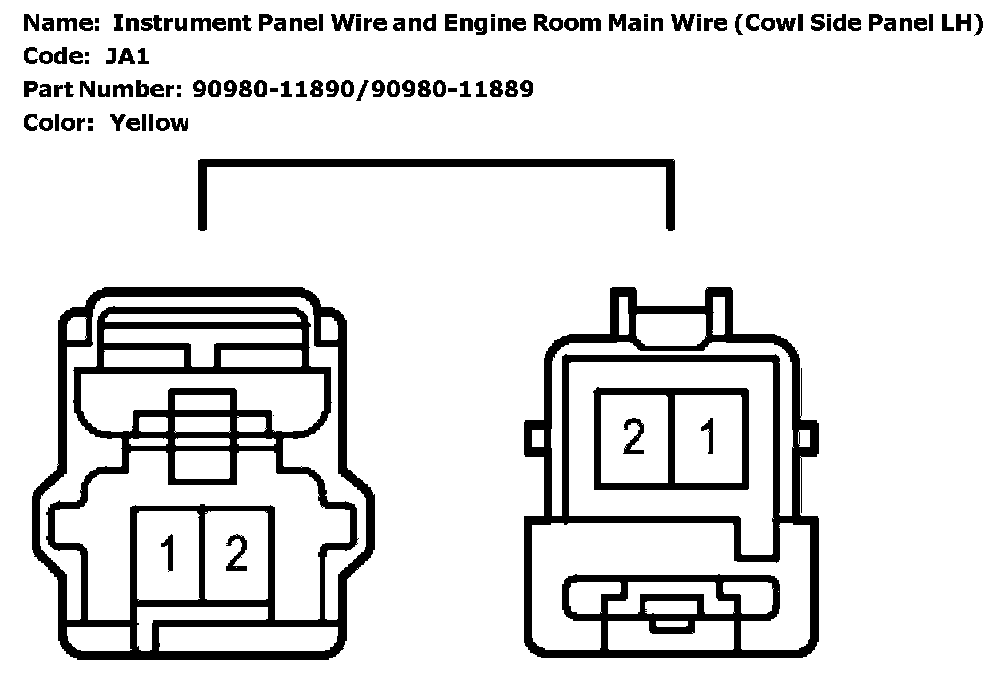

Yellow:

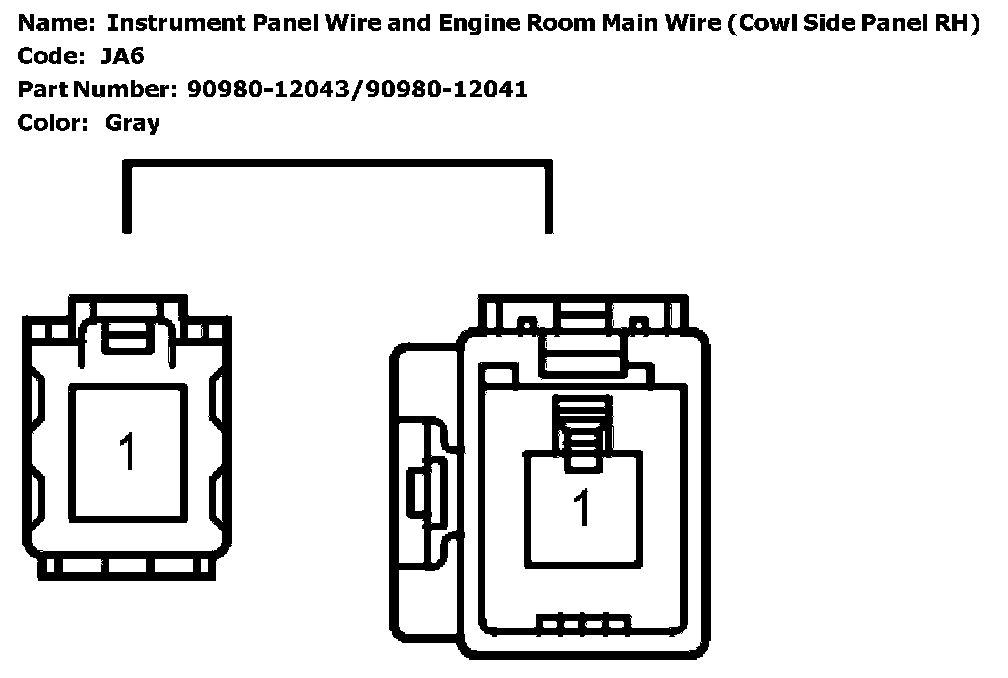

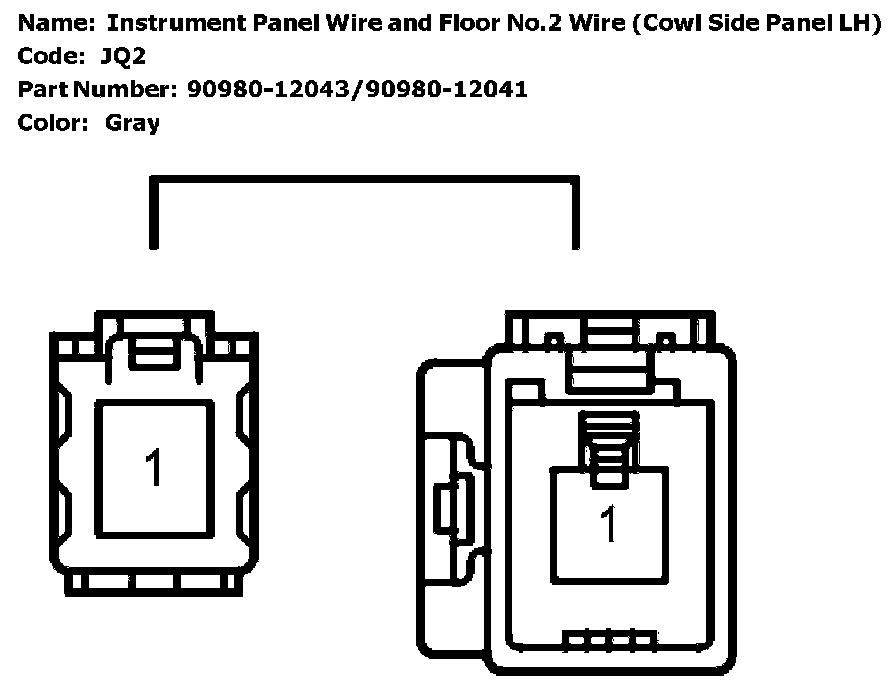

Gray:
Yellow:
