Components
Components

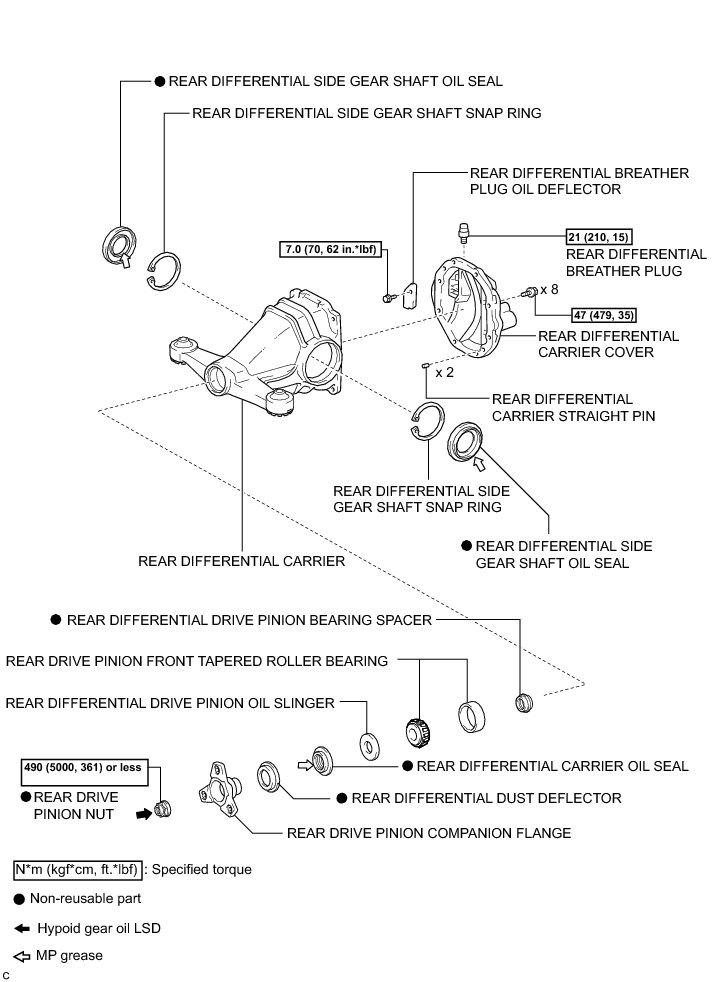

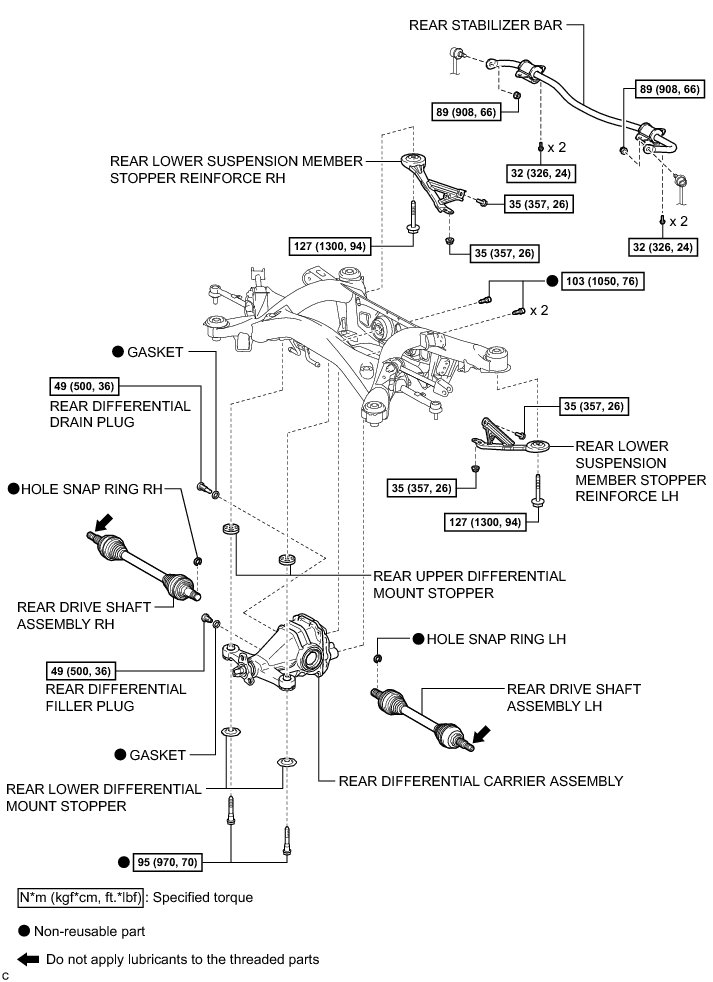

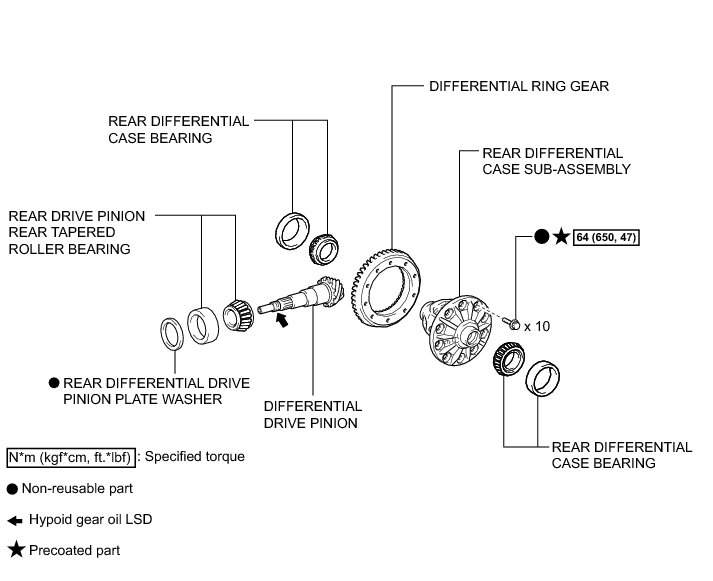

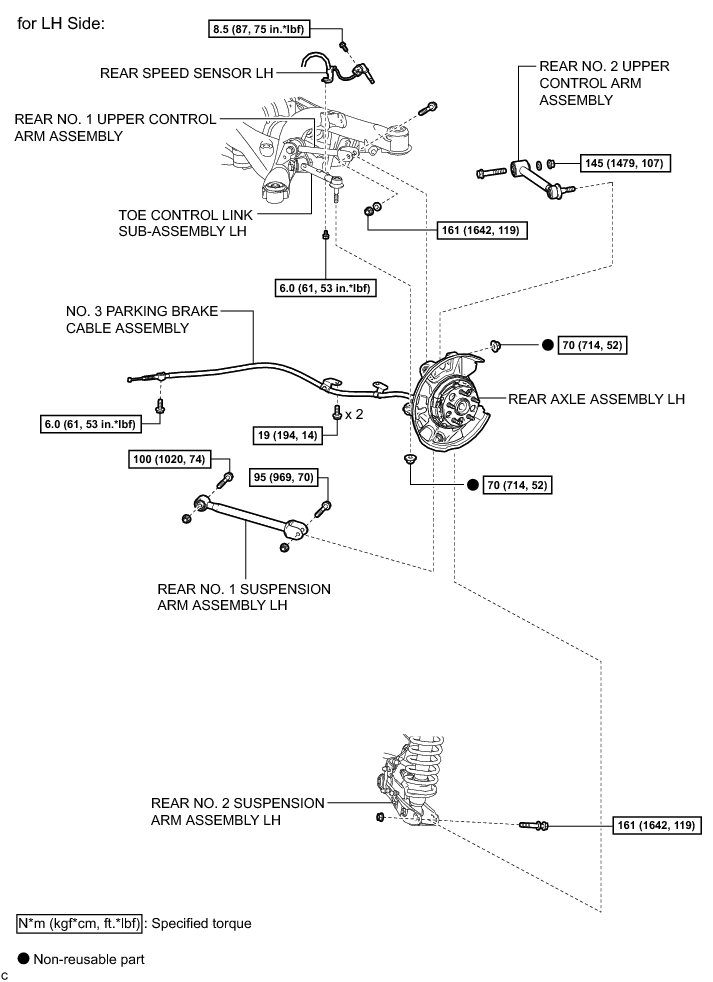

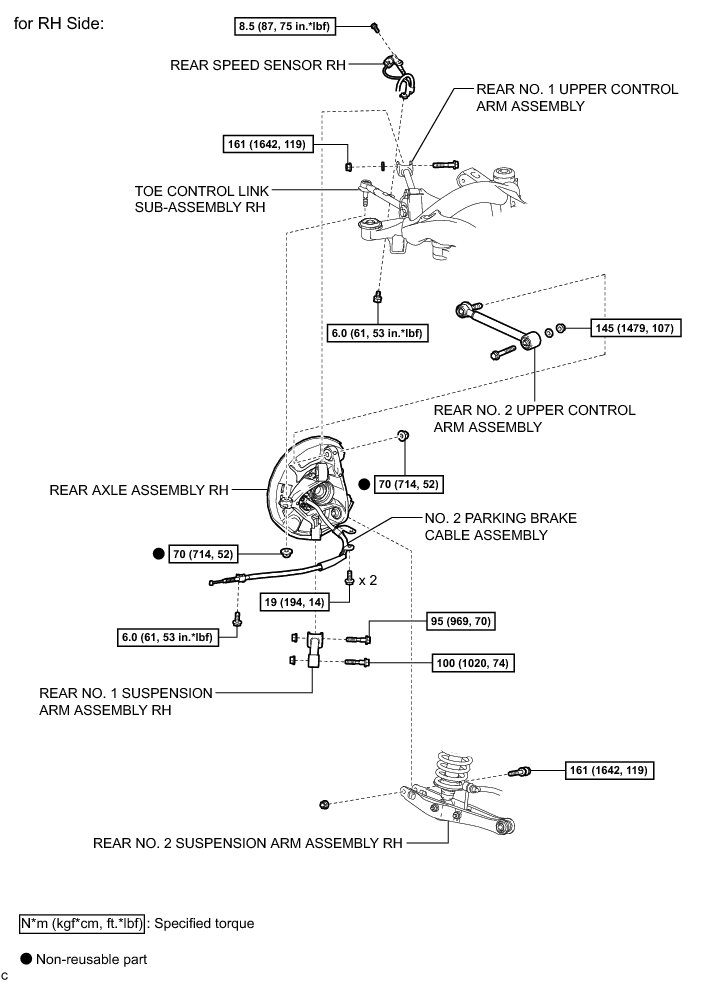

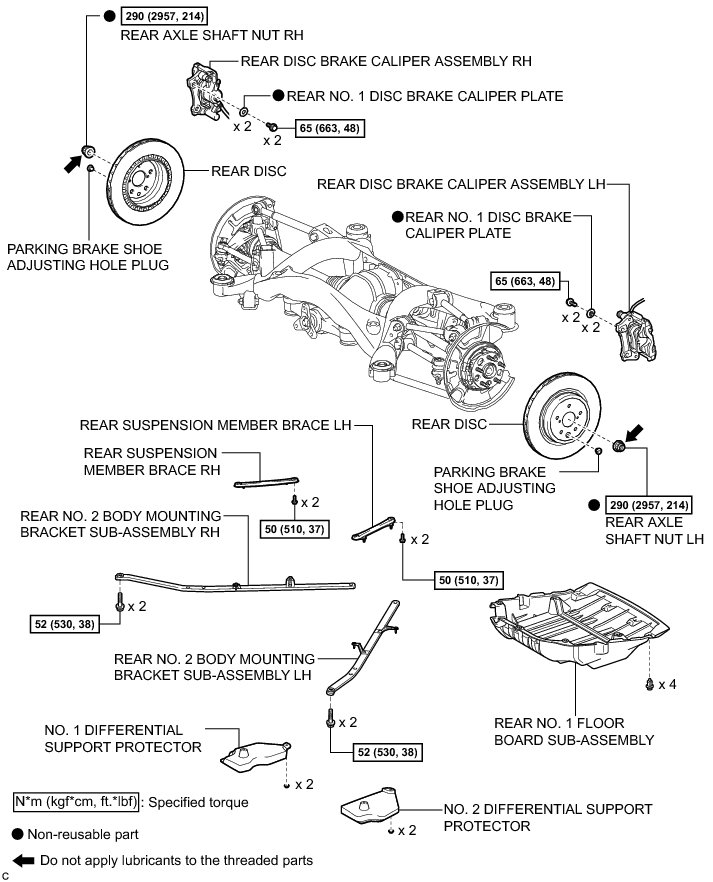

AXLE AND DIFFERENTIAL: REAR DIFFERENTIAL CARRIER ASSEMBLY (for 2GR-FSE): COMPONENTS
