Battery

BATTERY

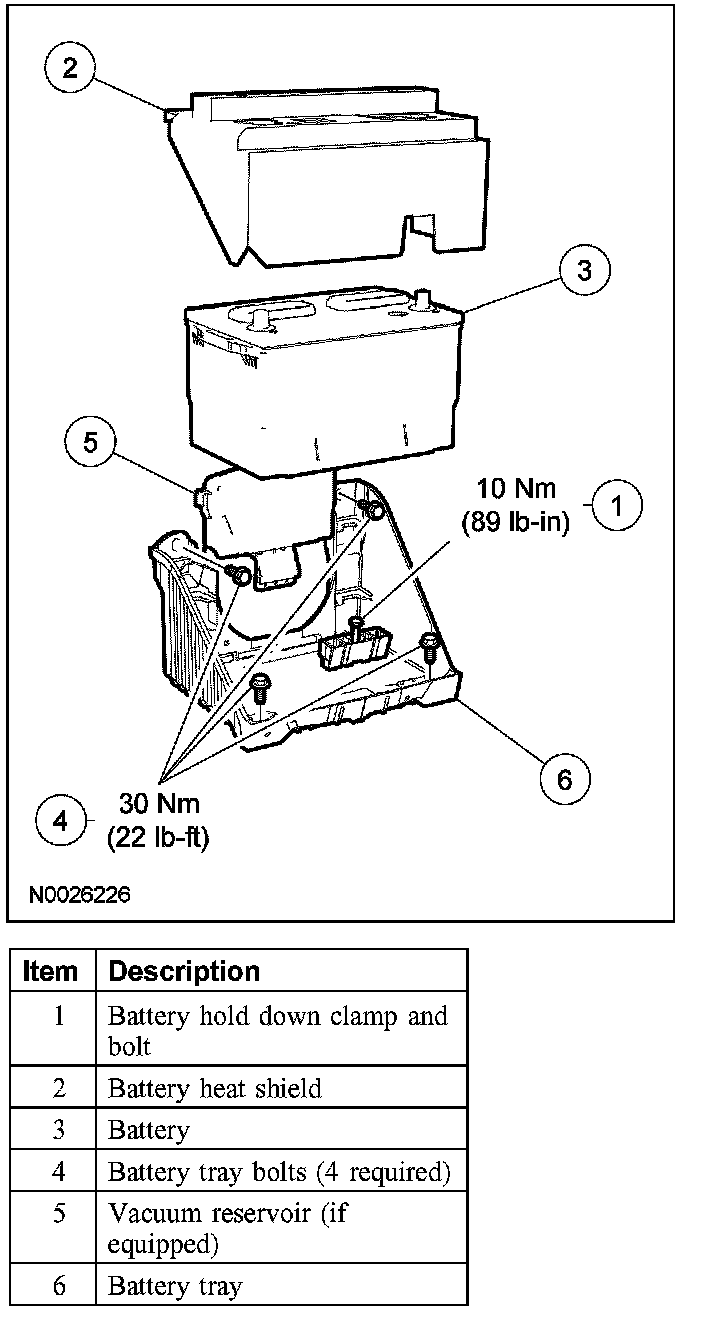

Exploded View

Removal and Installation
1. Disconnect the battery cables.
2. Loosen and remove the battery hold down bolt and clamp.
- To install, tighten to 10 Nm (89 lb-in).

3. WARNING: When lifting a battery, excessive pressure on the end walls could cause acid to leak out through the vent caps, resulting in personal injury, or damage to the vehicle or battery. Lift with a battery carrier. Failure to follow these instructions may result in personal injury.

Remove the battery and the heat shield.

4. To install, reverse the removal procedure.
