Power Distribution Box

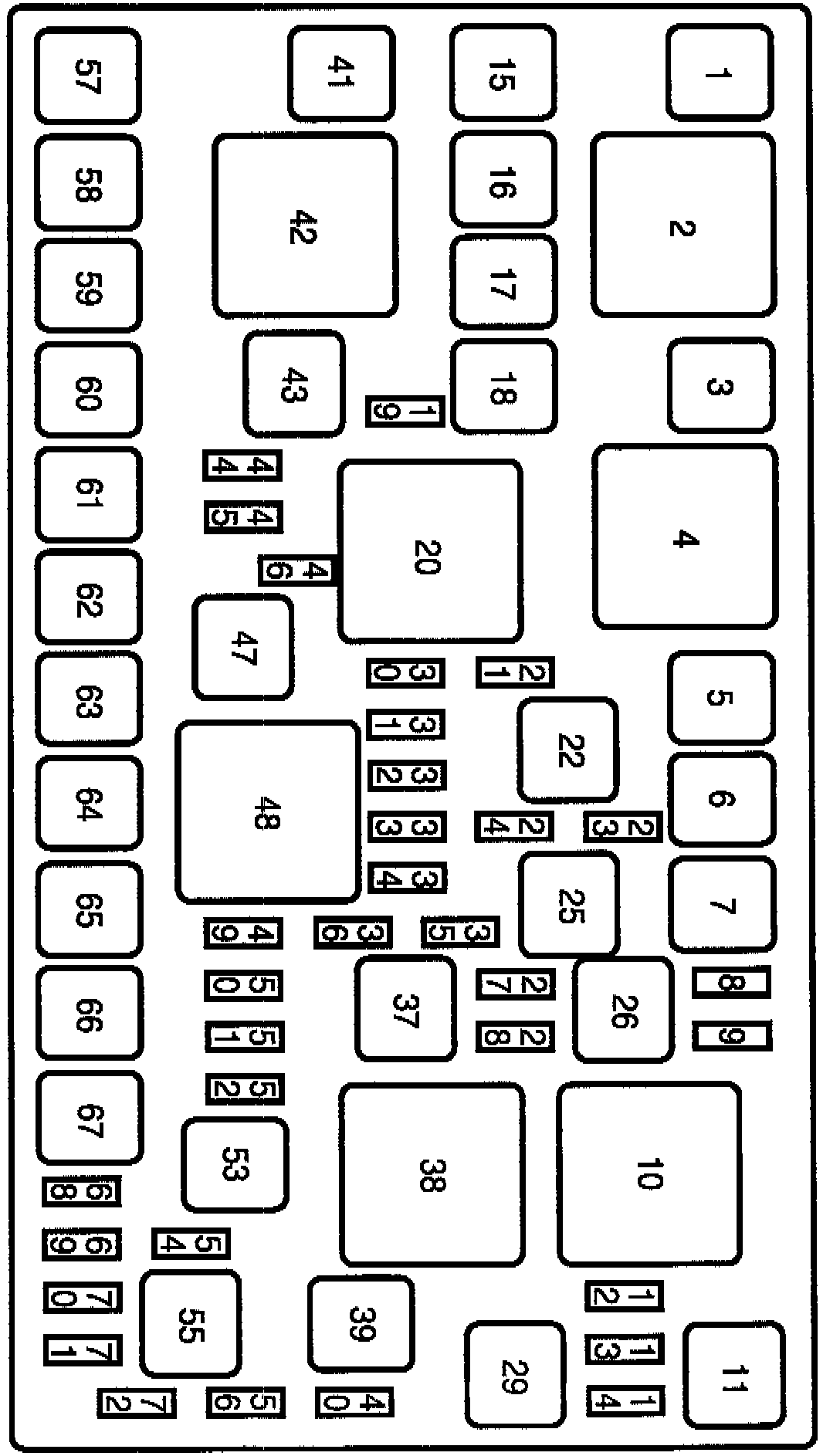

Power Distribution Box:

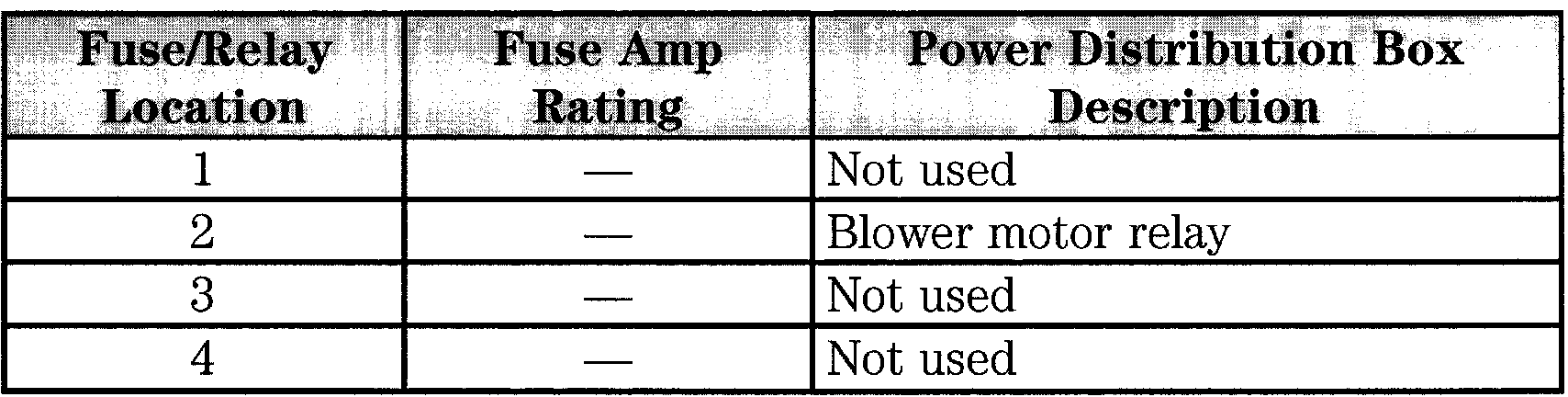

Fuse 1 - 4:

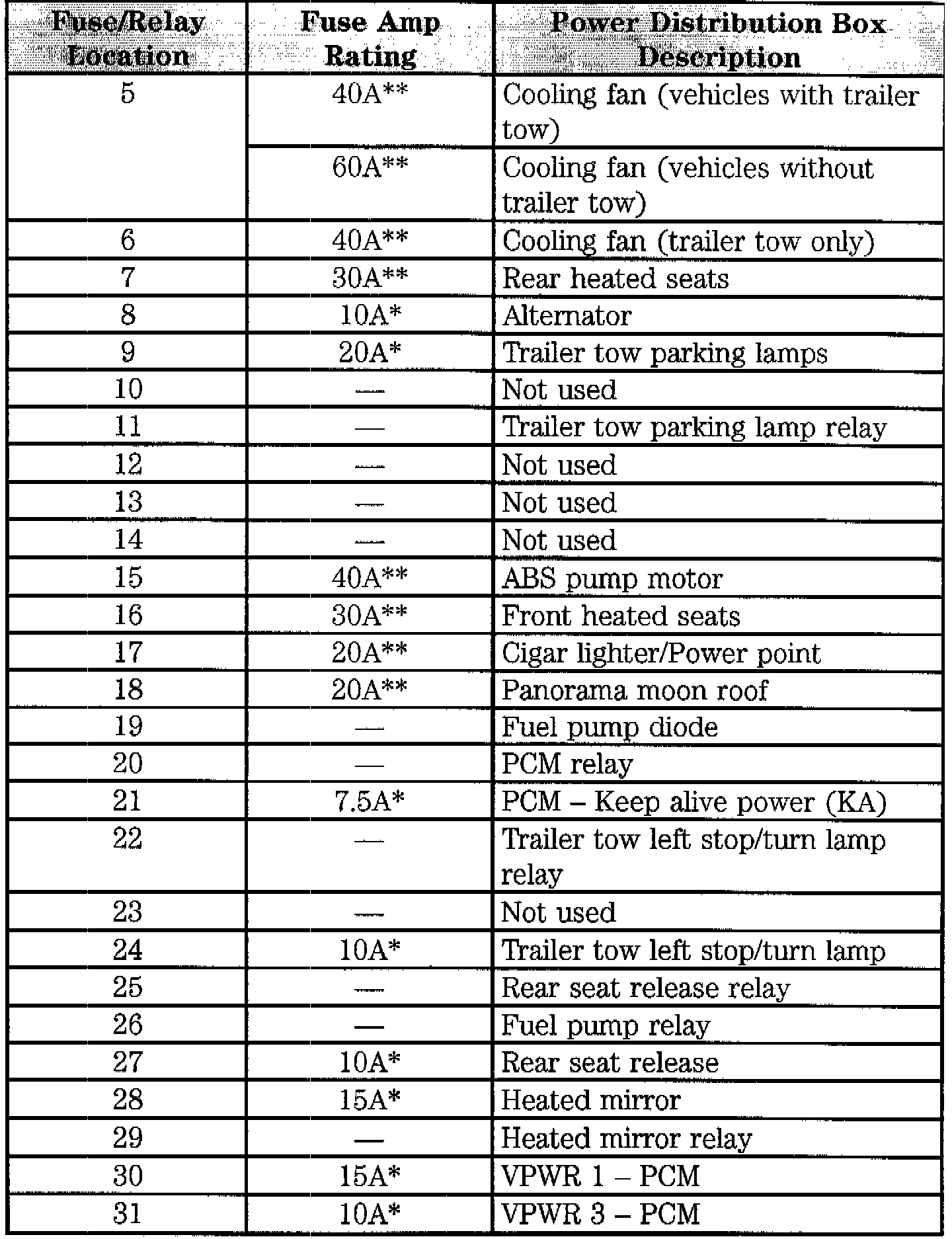

Fuse 5 - 31:

Fuse 32 - 61:

Fuse 62 - 72:

Power Distribution Box

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle's main electrical systems from overloads.
