Pinpoint Test V: No Medium Speed Controller Area Network (MS-CAN) Communication, All Modules Are Not Responding
Refer to Wiring Diagram Set 14, Module Communications Network for schematic and connector information. Diagrams By Number
Normal Operation
The Medium Speed Controller Area Network (MS-CAN) uses an unshielded twisted pair cable, circuits VDB06 (GY/OG) and VDB07 (VT/OG) provide the network connection to all modules on the network.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Audio Control Module (ACM)
- Accessory Protocol Interface Module (APIM)
- Audio Digital Signal Processing (DSP) module (if equipped)
- Audio Rear Control Unit (RCU) (if equipped)
- Dual Climate Controlled Seat Module (DCSM) (if equipped)
- Driver Seat Module (DSM) (if equipped)
- HVAC module (if equipped)
- Instrument Cluster (IC)
- Liftgate/Trunk Module (LTM) (if equipped)
- Parking Aid Module (PAM) (if equipped)
- Power Running Board (PRB) module (if equipped)
- Rear Entertainment Module (RETM) (if equipped)
- Satellite Digital Audio Receiver System (SDARS) module (if equipped)
- Smart Junction Box (SJB)
- Data Link Connector (DLC)
PINPOINT TEST V: NO MS-CAN COMMUNICATION, ALL MODULES ARE NOT RESPONDING
NOTICE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: Failure to disconnect the battery when instructed will result in false resistance readings. Refer to Battery.
-------------------------------------------------
V1 CHECK THE DLC PINS FOR DAMAGE
NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the Pinpoint Test. Inspection and Verification
- Ignition OFF.
- Disconnect the scan tool cable from the Data Link Connector (DLC).

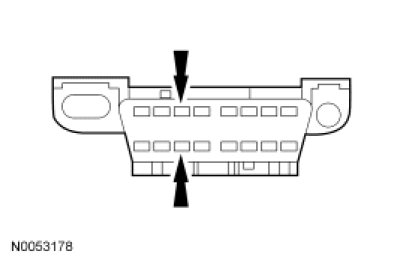

- Inspect DLC pins 3 and 11 for damage.
- Are DLC pins 3 and 11 OK?
Yes
GO to V2.
No
REPAIR the DLC as necessary. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
V2 CHECK THE MS-CAN TERMINATION RESISTANCE
- Disconnect: Negative Battery Cable.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance between 54 and 66 ohms?
Yes
GO to V5.
No
GO to V3.
-------------------------------------------------
V3 CHECK THE MS-CAN TERMINATION RESISTOR
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance between 108 and 132 ohms?
Yes
GO to V7.
No
GO to V4.
-------------------------------------------------
V4 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V8.
No
GO to V7.
-------------------------------------------------
V5 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO GROUND
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and ground; and between the DLC C251-11, circuit VDB07 (VT/OG), harness side and ground.
- Are the resistances greater than 1,000 ohms?
Yes
GO to V6.
No
GO to V33.
-------------------------------------------------
V6 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TO VOLTAGE
- Connect the negative battery cable.
- Ignition ON.
- Measure the voltage between the DLC C251-3, circuit VDB06 (GY/OG), harness side and ground; and between the DLC C251-11, circuit VDB07 (VT/OG), harness side and ground.
- Is the voltage greater than 6 volts?
Yes
REPAIR the circuit. CLEAR the DTCs. REPEAT the network test with the scan tool.
No
VERIFY all module fuses are OK. If OK, REPEAT the network test with the scan tool.
-------------------------------------------------
V7 CHECK THE MS-CAN CIRCUITS BETWEEN THE SJB AND THE DLC FOR AN OPEN
- Disconnect: SJB C2280b.

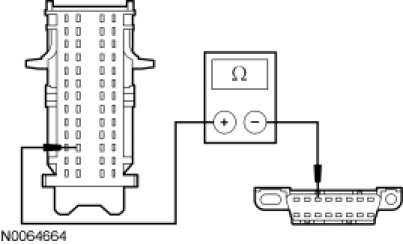

- Measure the resistance between the SJB C2280b-37, circuit VDB06 (GY/OG), harness side and the DLC C251-3, circuit VDB06 (GY/OG), harness side.

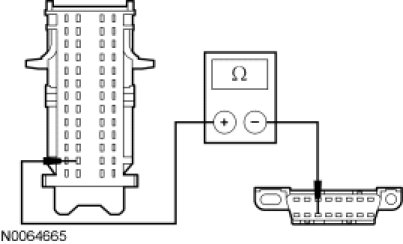

- Measure the resistance between the SJB C2280b-38, circuit VDB07 (VT/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Are the resistances less than 5 ohms?
Yes
VERIFY all module fuses are OK. If OK, CONNECT the SJB. CONNECT the negative battery cable. REPEAT the network test with the scan tool.
No
REPAIR the circuit in question. CONNECT the SJB. CONNECT the negative battery cable. CLEAR the DTCs. REPEAT the network test with the scan tool.
-------------------------------------------------
V8 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE SJB DISCONNECTED
- Disconnect: SJB C2280b.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V9.
No
CONNECT the negative battery cable. GO to V58.
-------------------------------------------------
V9 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE IC DISCONNECTED
- Disconnect: IC C220.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V10.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V59.
-------------------------------------------------
V10 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE ACM DISCONNECTED
- Disconnect: ACM C240a.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V11.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V60.
-------------------------------------------------
V11 VERIFY VEHICLE EQUIPMENT - AUDIO DSP MODULE
- Inspect the vehicle for an audio Digital Signal Processing (DSP) module.
- Is the vehicle equipped with an audio DSP module?
Yes
GO to V12.
No
GO to V13.
-------------------------------------------------
V12 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE AUDIO DSP MODULE DISCONNECTED
- Disconnect: Audio DSP Module C2364c.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V13.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V61.
-------------------------------------------------
V13 VERIFY VEHICLE EQUIPMENT - HVAC MODULE
- Inspect the vehicle for an HVAC module.
- Is the vehicle equipped with an HVAC module?
Yes
GO to V14.
No
GO to V15.
-------------------------------------------------
V14 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE HVAC MODULE DISCONNECTED
- Disconnect: HVAC Module C228a (EATC) or C2357a (EMTC).
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V17.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V62.
-------------------------------------------------
V15 VERIFY VEHICLE EQUIPMENT - APIM
- Inspect the vehicle for an APIM.
- Is the vehicle equipped with an APIM?
Yes
GO to V16.
No
GO to V17.
-------------------------------------------------
V16 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE APIM DISCONNECTED
- Disconnect: APIM C3342.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V17.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V63.
-------------------------------------------------
V17 VERIFY VEHICLE EQUIPMENT - AUDIO RCU
- Inspect the vehicle for an audio Rear Control Unit (RCU).
- Is the vehicle equipped with an audio RCU?
Yes
GO to V18.
No
GO to V19.
-------------------------------------------------
V18 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE AUDIO RCU DISCONNECTED
- Disconnect: Audio RCU C3077.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V19.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V64.
-------------------------------------------------
V19 VERIFY VEHICLE EQUIPMENT - RETM
- Inspect the vehicle for a Rear Entertainment Module (RETM).
- Is the vehicle equipped with an RETM?
Yes
GO to V20.
No
GO to V21.
-------------------------------------------------
V20 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE RETM DISCONNECTED
- Disconnect: RETM C949.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V21.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V65.
-------------------------------------------------
V21 VERIFY VEHICLE EQUIPMENT - DSM
- Inspect the vehicle for a Driver Seat Module (DSM).
- Is the vehicle equipped with a DSM?
Yes
GO to V22.
No
GO to V23.
-------------------------------------------------
V22 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE DSM DISCONNECTED
- Disconnect: Driver Seat Module C341d.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V23.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V66.
-------------------------------------------------
V23 VERIFY VEHICLE EQUIPMENT - DCSM
- Inspect the vehicle for a Dual Climate Controlled Seat Module (DCSM).
- Is the vehicle equipped with a DCSM?
Yes
GO to V24.
No
GO to V25.
-------------------------------------------------
V24 CHECK THE MS-CAN (+) AND MS-CAN (-) CIRCUITS FOR A SHORT TOGETHER WITH THE DCSM DISCONNECTED
- Disconnect: DCSM C3265c.
- Measure the resistance between the DLC C251-3, circuit VDB06 (GY/OG), harness side and the DLC C251-11, circuit VDB07 (VT/OG), harness side.
- Is the resistance less than 5 ohms?
Yes
GO to V25.
No
CONNECT all modules. CONNECT the negative battery cable. GO to V67.
-------------------------------------------------
