Without Keyless Entry
Without Keyless Entry

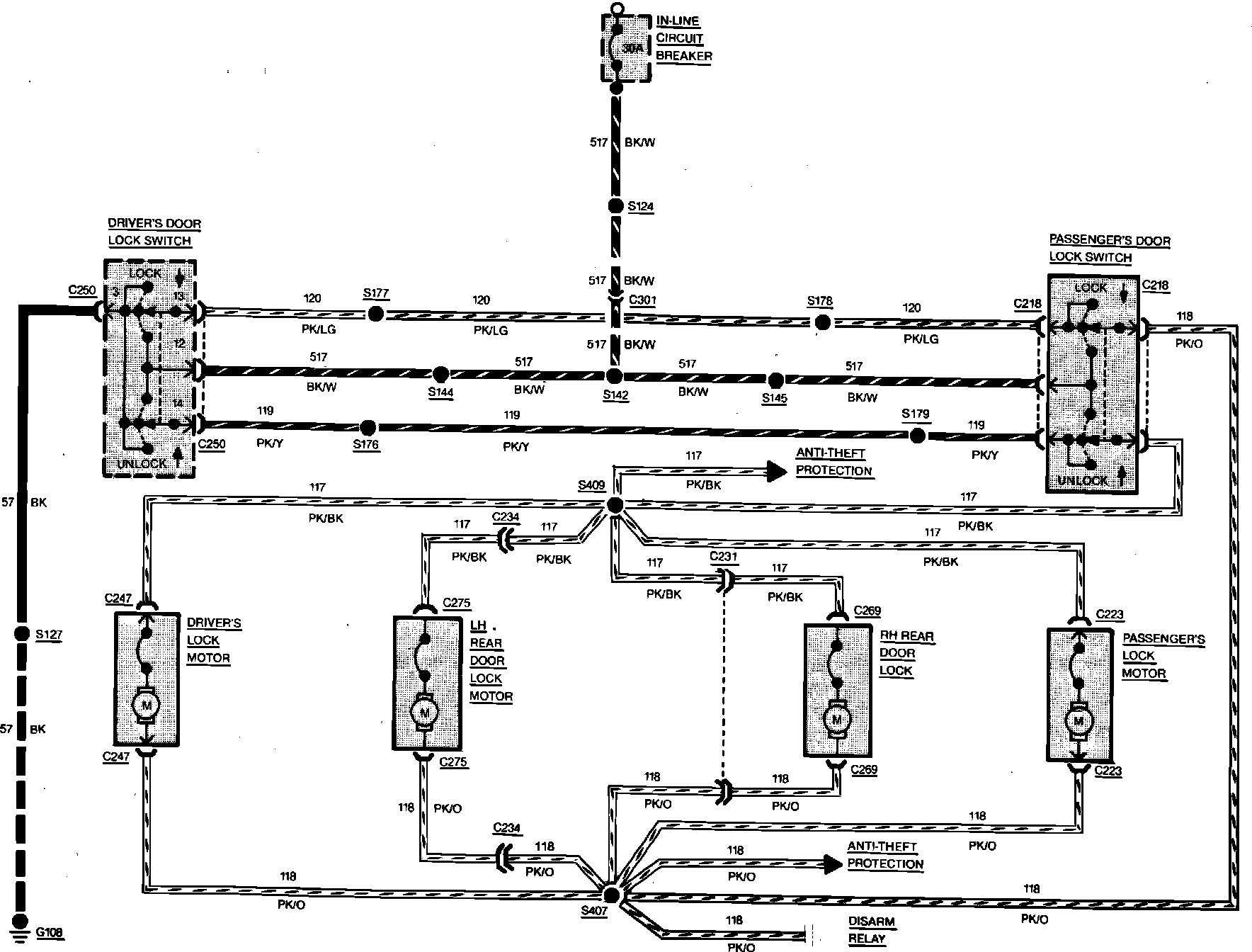

Fig. 69 Power Door Locks Wiring Circuit. Continental Less Keyless Entry System:
