Less Autolamps

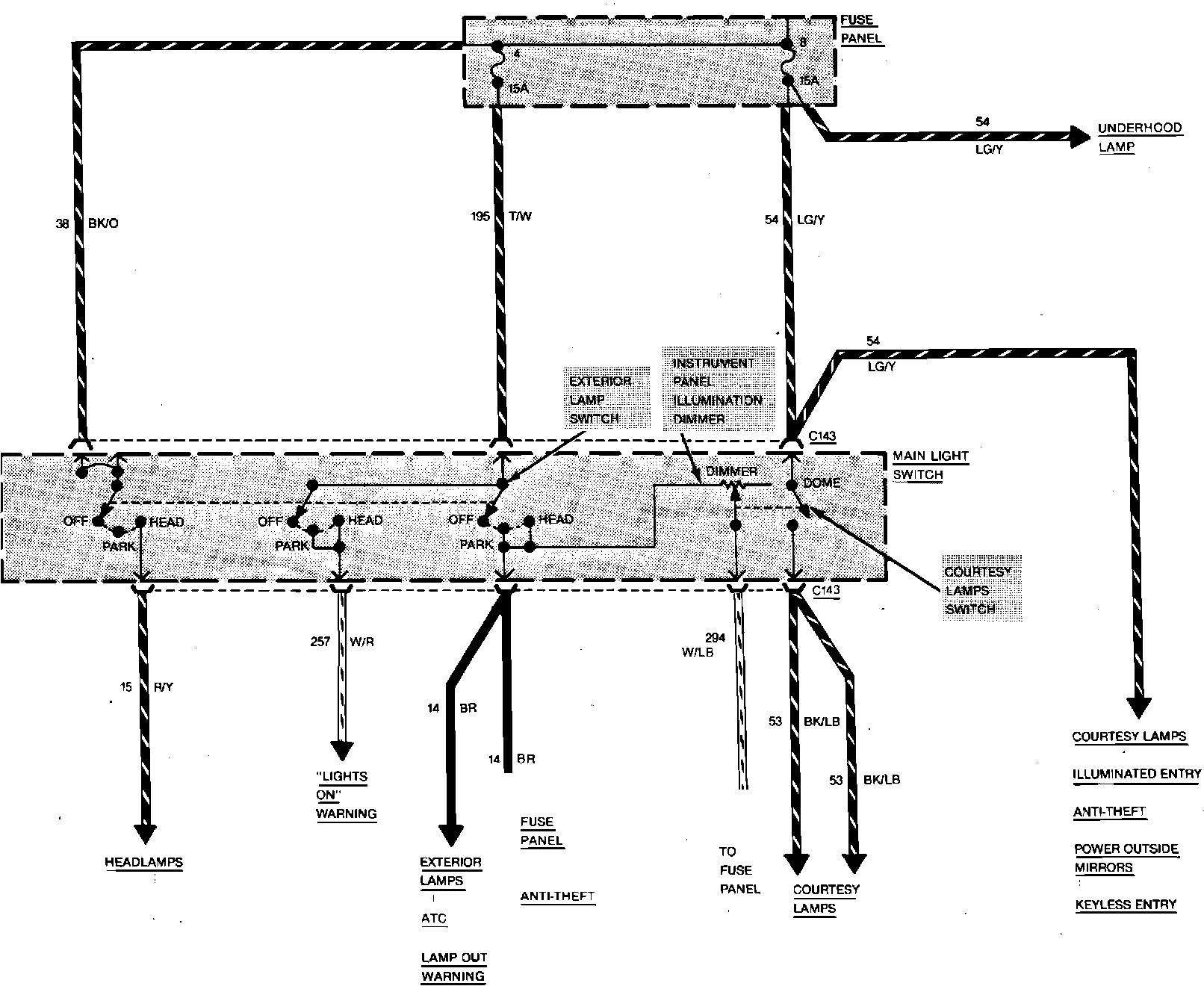

Fig. 67 Power Distribution Wiring Circuit (Main Light Switch Less Automatic Headlamps). Mark VII:
