Electrical Diagrams
Electrical Diagrams

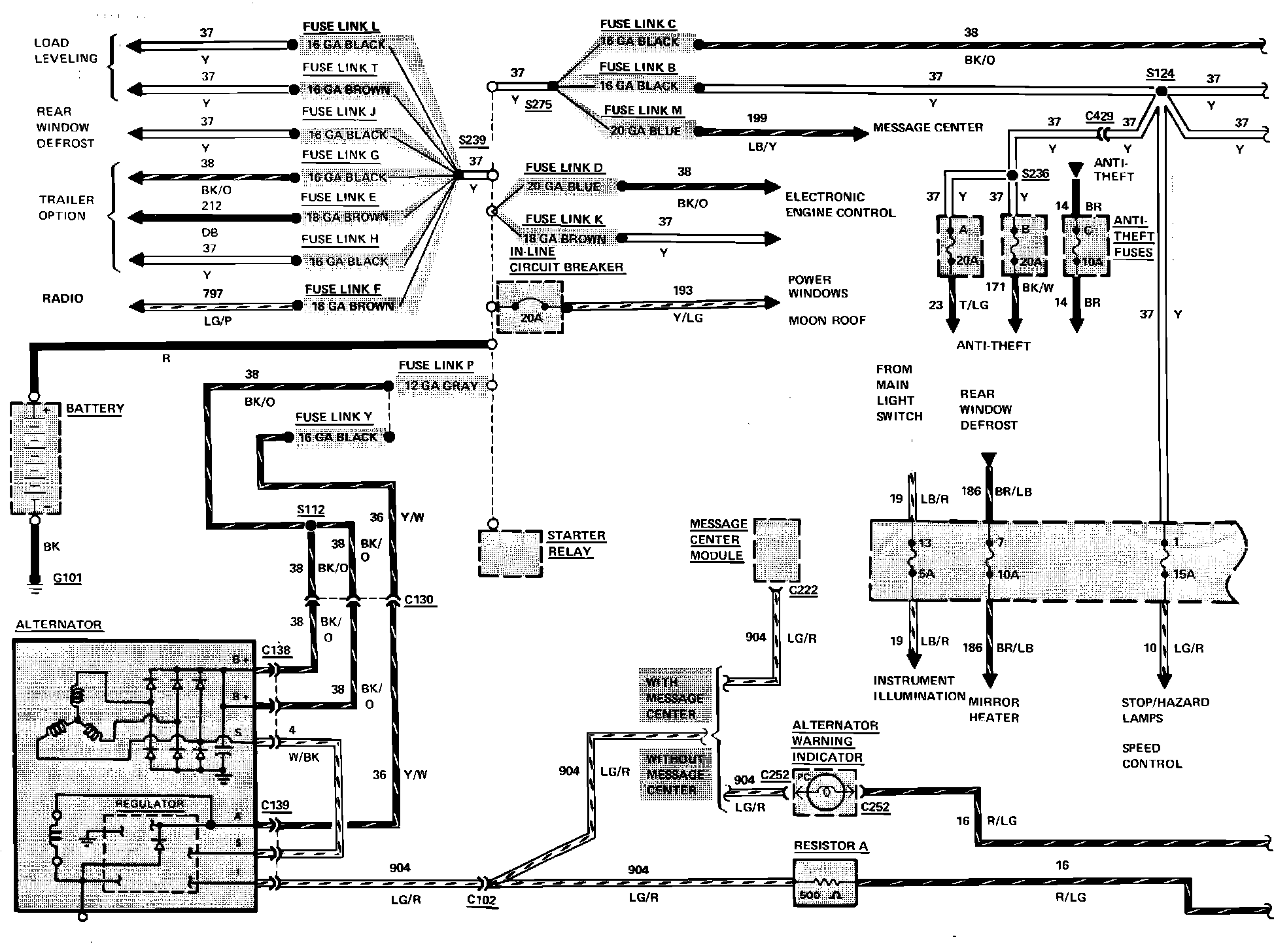

Fig. 99 Charging System & Power Distribution Wiring Circuit (Part 1 of 4). Town Car:
