Home >> Lincoln >> 1988 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Power Door Lock Switch >> With Keyless Entry

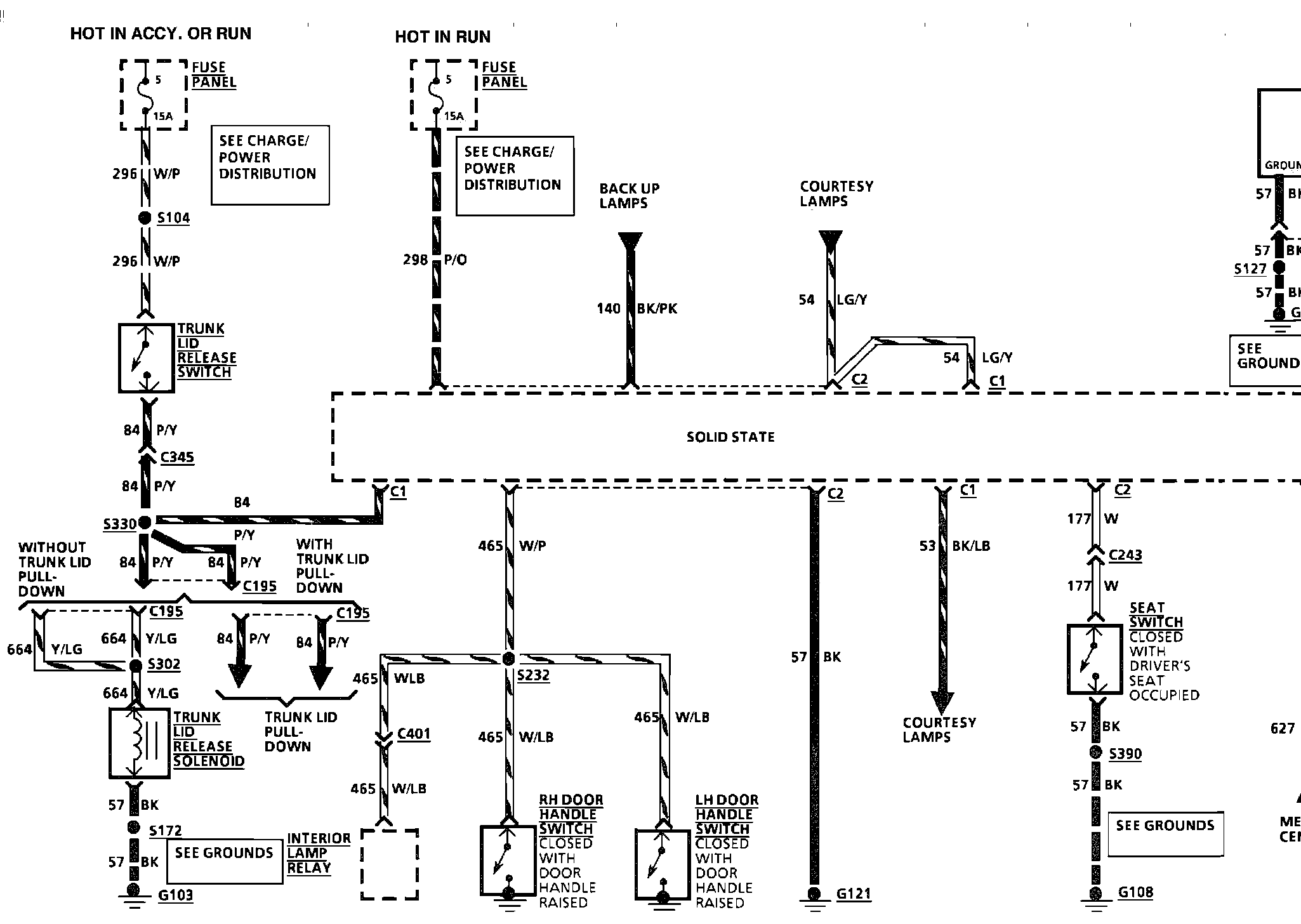

With Keyless Entry

��w/Keyless Entry:





*** UPDATED BY TSB #906B21 03-23-90
