Home >> Lincoln >> 1988 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Window Motor

Power Window Motor

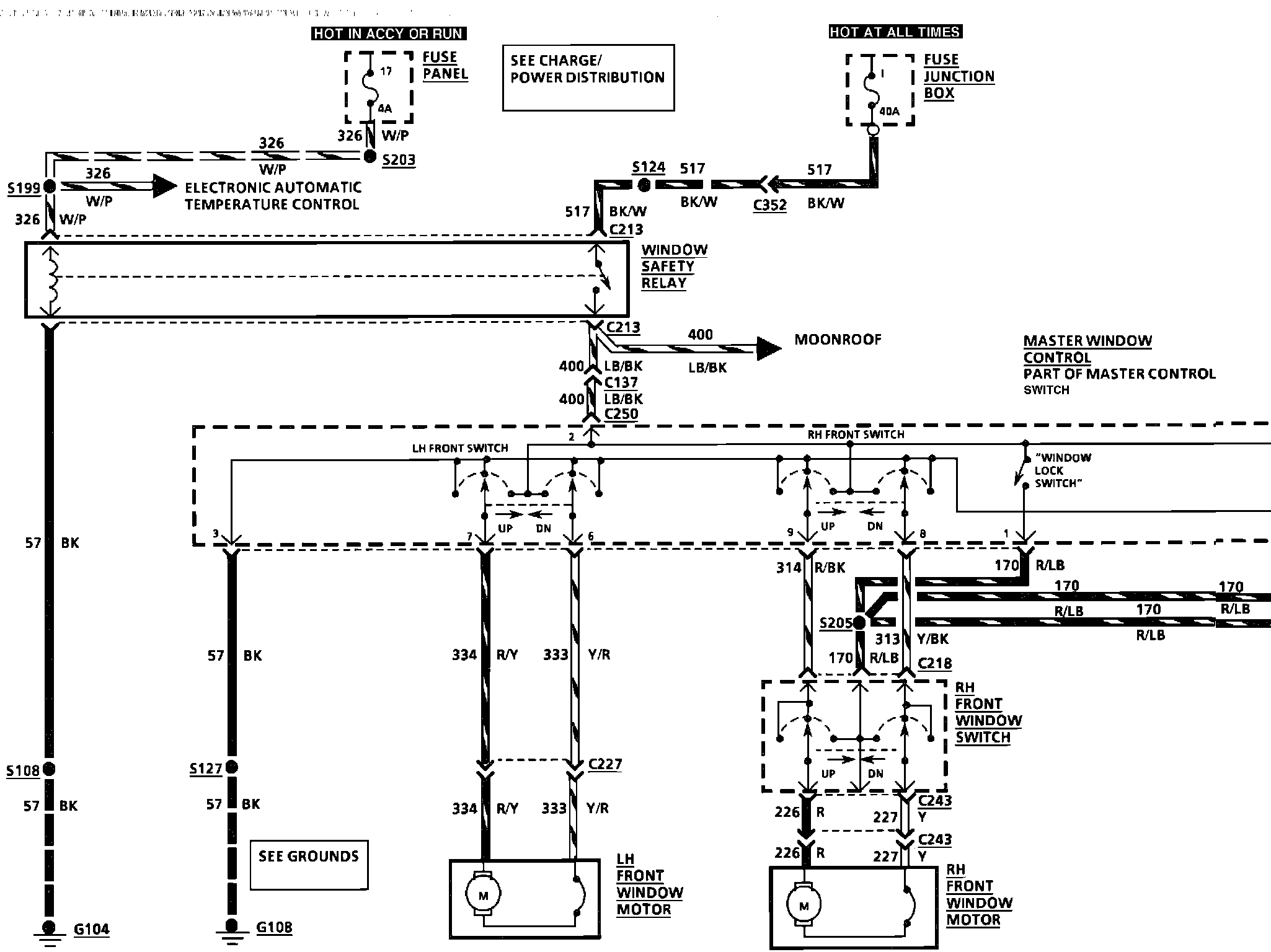

���Power Windows Wiring Circuit:
