Compressor Clutch Diagnosis

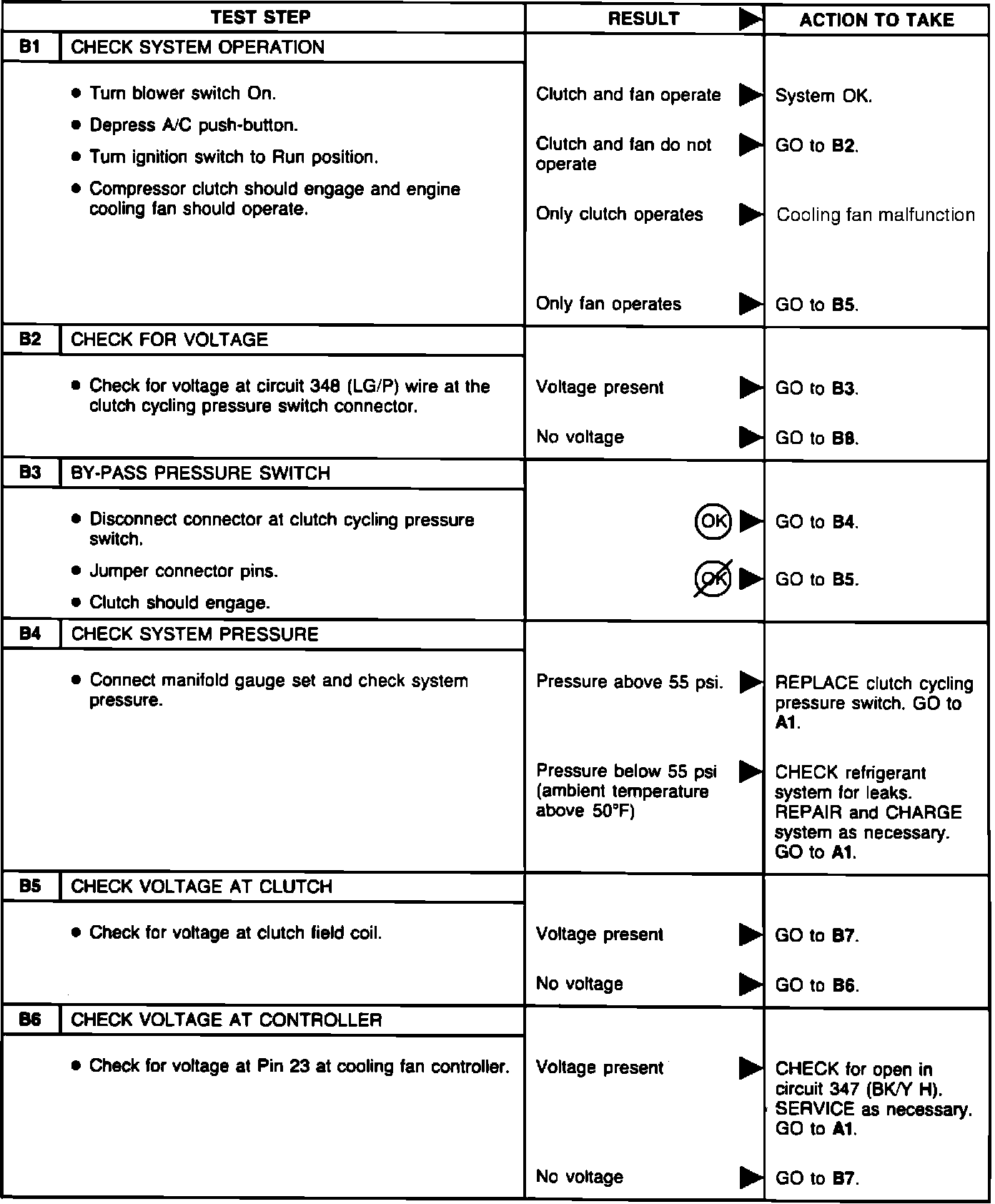

Compressor Clutch Circuit Diagnosis (Part 1 Of 2):

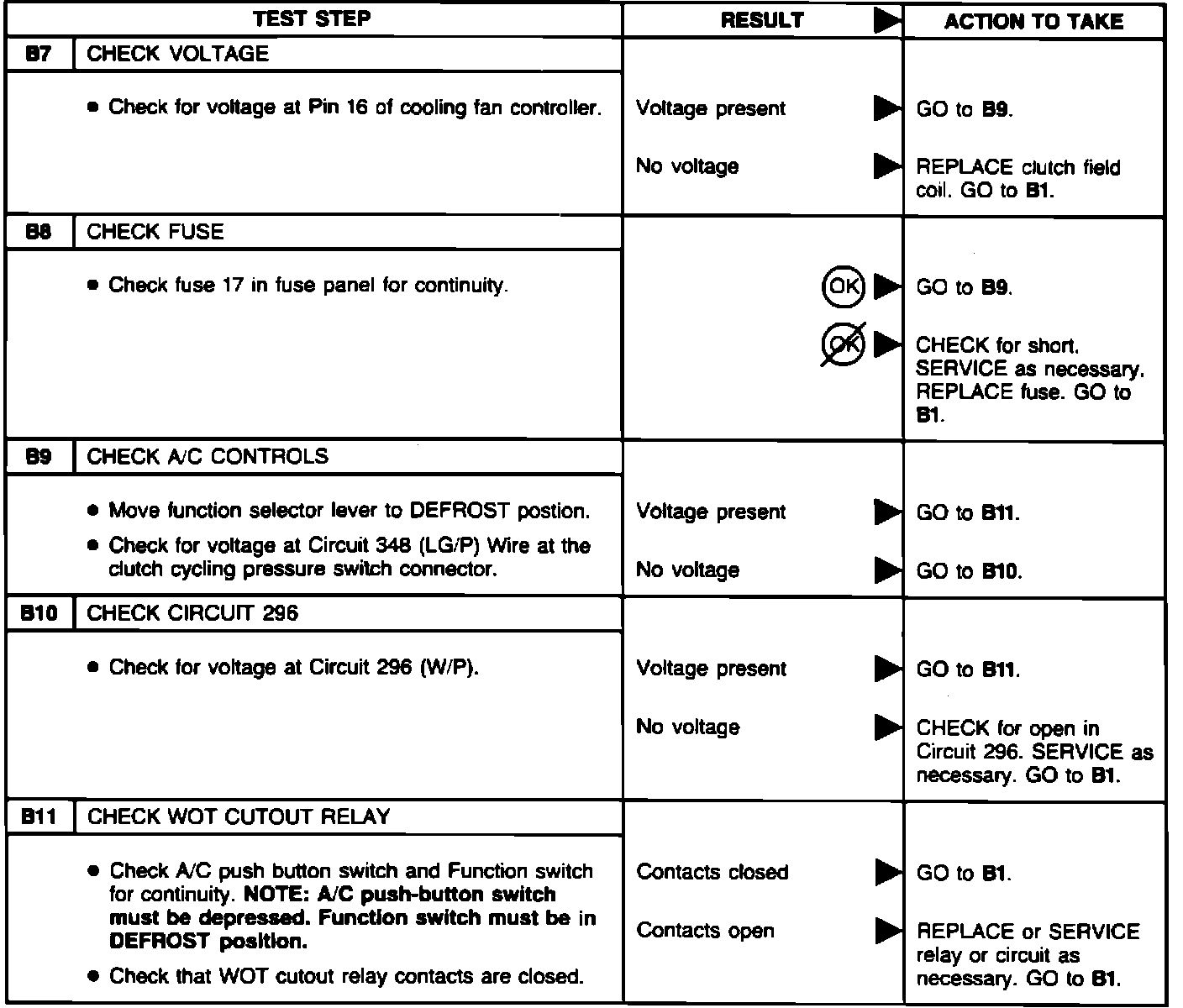

Compressor Clutch Circuit Diagnosis (Part 2 Of 2):
