Accumulator HVAC: Locations

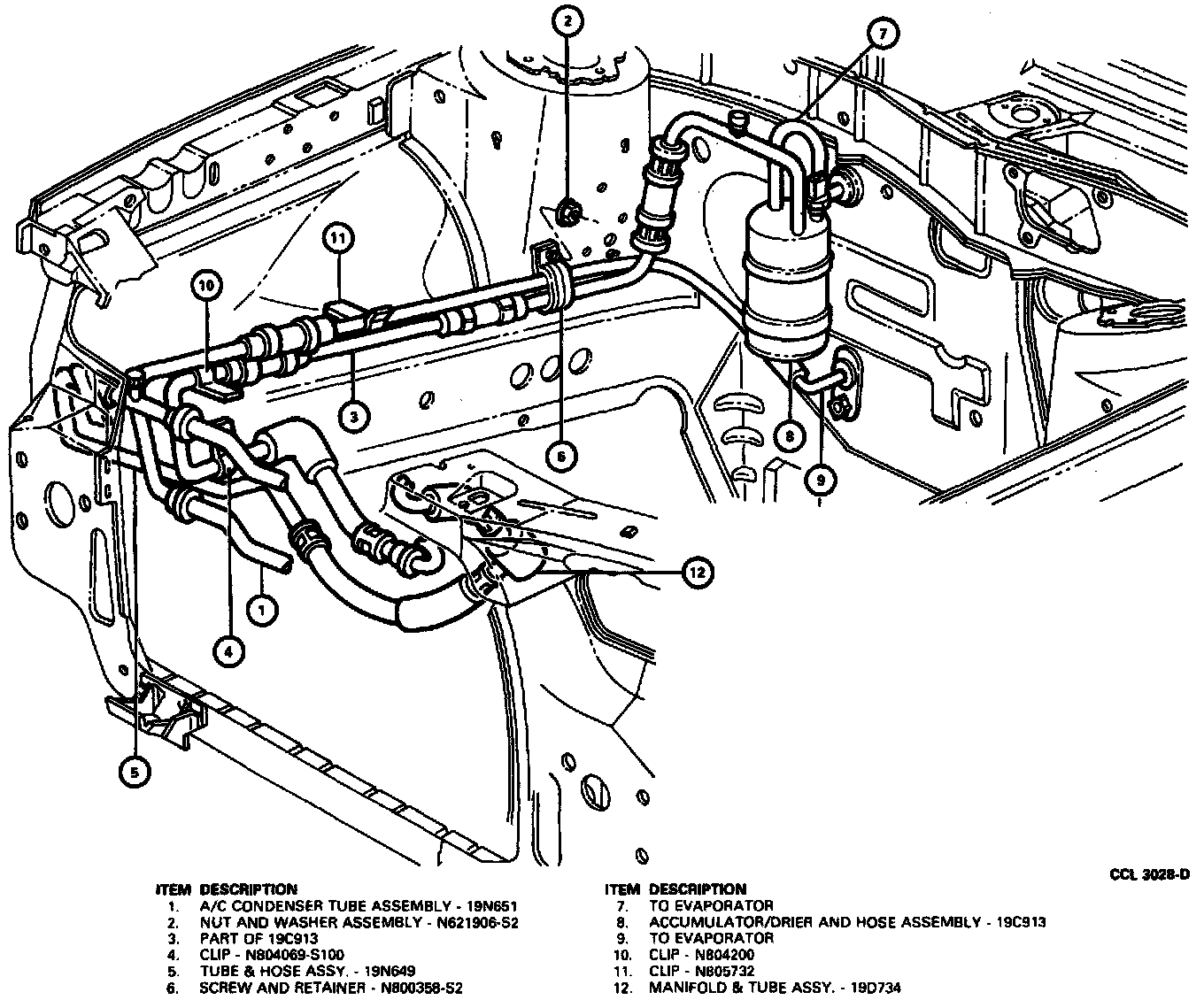

The Suction Accumulator/Drier is mounted to the engine side of the dash panel on the RH side of the vehicle. The inlet tube of the accumulator/drier attaches directly to the evaporator core outlet tube.
The Suction Accumulator/Drier is mounted to the engine side of the dash panel on the RH side of the vehicle. The inlet tube of the accumulator/drier attaches directly to the evaporator core outlet tube.
