Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
1992
>>
Mark VII V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
AM/FM Stereo
>>
Output
Output

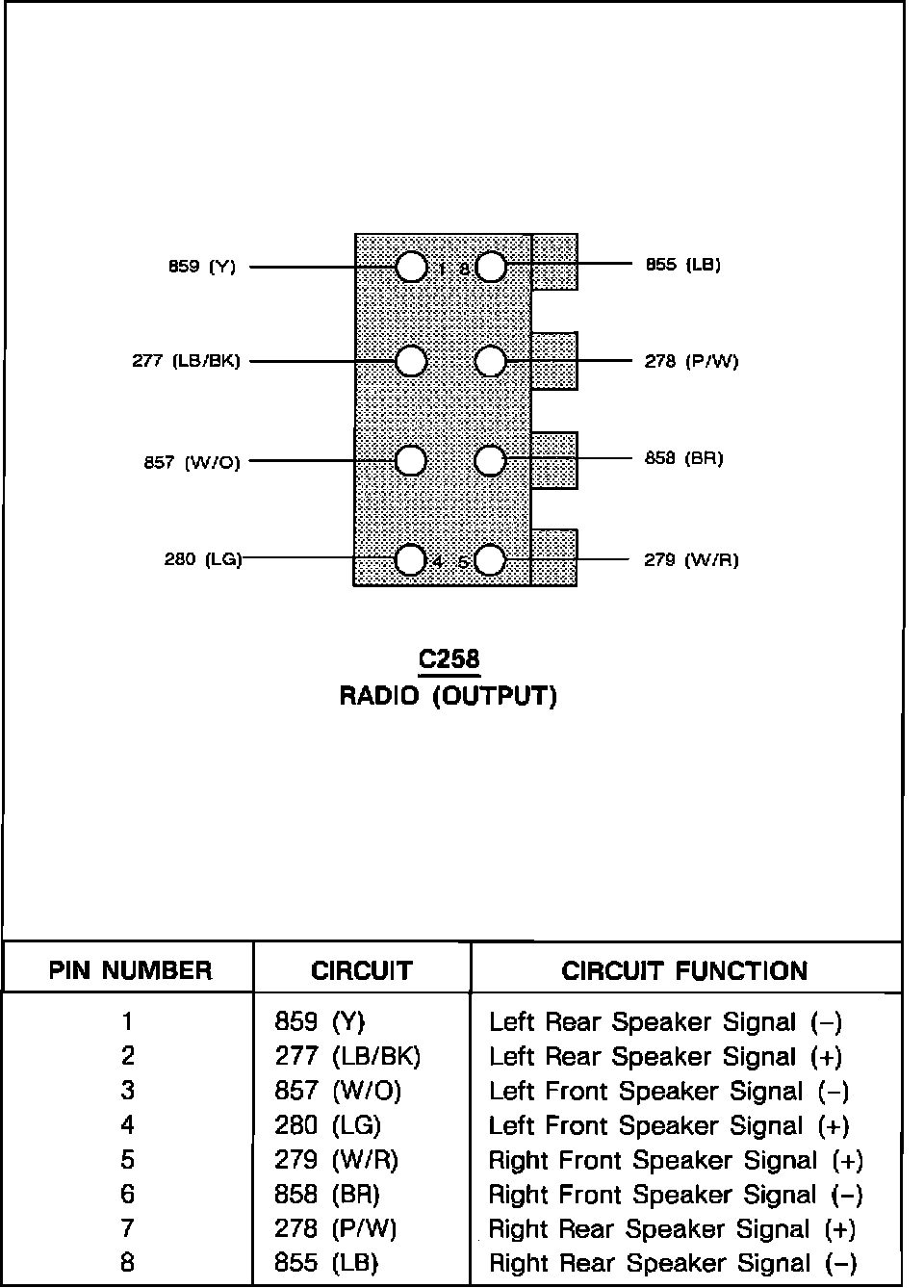

Connector Faces/Pinout Charts:
